Offline Roll to Sheet Cutting Machine 1300 mm – Paper Roll to Sheet Cutter With Print Mark Control

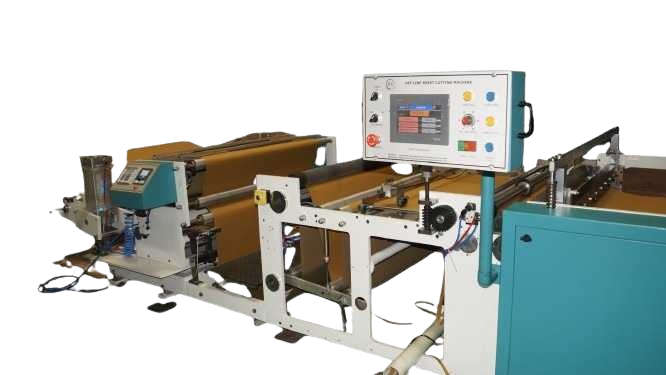

It is a wide web reel to sheet cutting machine that works offline, separate from the press. A printed or plain reel is loaded on the auto unloading unwind on a 3 inch air shaft. An imported ultrasonic edge scanner web guide keeps the reel edge in position, and a tension controller with powder brake and ammeter holds the web tension steady from full reel to empty core.

The web is pulled by an electronic feeding control system with a 4 kW servo motor. Cutting is controlled either by length feed or by a print mark scanner, so pre-printed material is cut on the mark. An online side trimming unit with rotary blades removes the edges, and the sheet cutting unit, driven by a mechanical eccentric movement with hardened top and bottom blades, cuts the sheet. Finished sheets land on a collection table that steps down automatically based on the number of cuts. The minimum sheet length is 100 mm.

1300 mm Maximum Roll Width

The machine accepts reels up to 1300 mm wide, which covers most wide web paper, board and label stock supplied by mills and film suppliers.

4 kW Servo Feeding System

The web is fed by an electronic control system with a 4 kW servo motor. The servo advances the web by the exact set length on every cycle, which is where sheet length accuracy comes from.

Print Mark Scanner Cutting Control

Cutting can be controlled by length feed or by a print mark scanner. On pre-printed reels the scanner reads the mark and the cut lands in the same place on every sheet.

Imported Ultrasonic Edge Scanner Web Guide

An electronic web guide with an imported ultrasonic edge scanner corrects the web position as the reel unwinds, keeping the edges square through the trimmer and cutter.

Auto Unloading Unwind With Powder Brake Tension Control

The unwind takes reels up to 1350 mm diameter on a 3 inch air shaft and has an auto unloading unit. A tension controller with powder brake and ammeter keeps the web tension constant as the reel diameter drops.

Online Side Trimming With Rotary Blades

Edges are trimmed inline by rotary blades; 10 rotary blades and distance pieces are supplied, so the trim widths can be set for each job.

Hardened Blade Sheet Cutting Unit

The sheet cutting unit is driven by a mechanical eccentric movement through a mechanical motor mechanism, with hardened top and bottom blades for a clean, long lasting cut edge.

Auto Step-Down Collection Table

The collection table lowers itself automatically based on the number of cuts, so the sheet pile stays at the right height for neat stacking without an operator adjusting it.

The reel is loaded on the 3 inch air shaft of the unwind and threaded through the web guide, the tension control, the servo feed rollers, the side trimming unit and the cutting unit on to the collection table. The operator enters the sheet length on the controller, or selects print mark mode and positions the scanner over the printed mark, and sets the rotary trimming blades to the finished sheet width.

In running, the powder brake tension controller holds the web taut, the ultrasonic web guide keeps the edge in line and the 4 kW servo advances the web by one sheet length per cycle. The rotary blades trim both sides, the hardened blades cut the sheet with the eccentric movement and the sheet drops on to the collection table. As the count of cuts rises, the table steps down so the top of the pile stays level. In print mark mode, any drift in the printed repeat is corrected on every sheet because the scanner, not the length counter, triggers the cut.

• Printed wrappers and sheet labels – cutting pre-printed reels into sheets on the print mark.
• Paper and board sheeting – converting mill reels into sheets for offset printing and packaging.
• Self-adhesive sheet labels – producing A4 and larger label sheets from adhesive reels.
• Carton and packaging blanks – sheets for further die cutting and folding.
• Stationery and notebook manufacturing – plain paper sheets in set sizes from reels.

The machine is built for paper, board and self-adhesive label stock supplied in reels up to 1300 mm wide. Powder brake tension control and the ultrasonic web guide are designed for paper based webs; if you intend to sheet films or laminates, share samples with RK so the tension settings and blade set can be checked. The minimum sheet length is 100 mm.

• Offline Roll to Sheet Cutting Machine 320 mmthe narrow web version for label reels up to 320 mm, with a 30 mm minimum cut.
• Foam Roll to Sheet Cutting Machine1200 mm machine for foam and base release pasting and sheeting, with HMI and PLC control.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, across three manufacturing units, for customers in 23+ countries. Roll to sheet cutting at RK is built on the same servo feeding and print mark scanning that its die cutting machines use, so the sheet length accuracy comes from proven parts. The machine is configured to your reel sizes and sheet formats, and the manufacturer that built it is the one that services it.

• Reel width: up to 1300 mm on this model; up to 320 mm on the narrow model.
• Reel diameter: the unwind takes up to 1350 mm, useful for full mill reels.
• Sheet length range: the minimum cut is 100 mm; tell RK your longest sheet as well.
• Printed or plain: for printed reels, the print mark scanner is what keeps the cut on the mark.
• Side trim: the online trimming unit with rotary blades is included; give RK your finished sheet widths.
• Stacking: the auto step-down table suits long runs where an operator cannot keep adjusting pile height.

The price of the RK 1300 mm offline roll to sheet cutting machine depends on the configuration, including blade sets and any options for your reels and sheet sizes. RK quotes ex-works Ahmedabad with GST at 18% applicable. Engineer travel and stay for installation and training at your site are borne by the customer. Send RK your reel widths and diameters, material, sheet sizes and whether the reels are printed, and the team will recommend the right build and quote against it.
