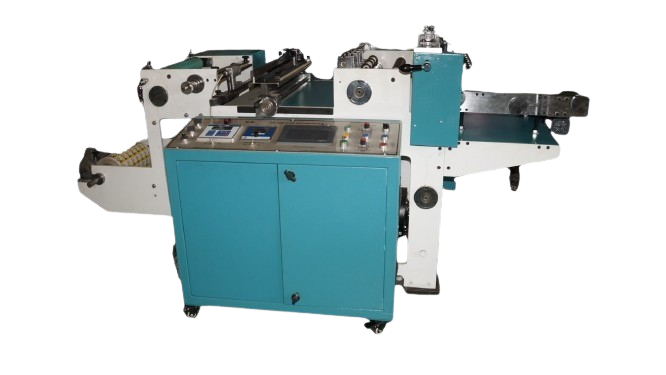

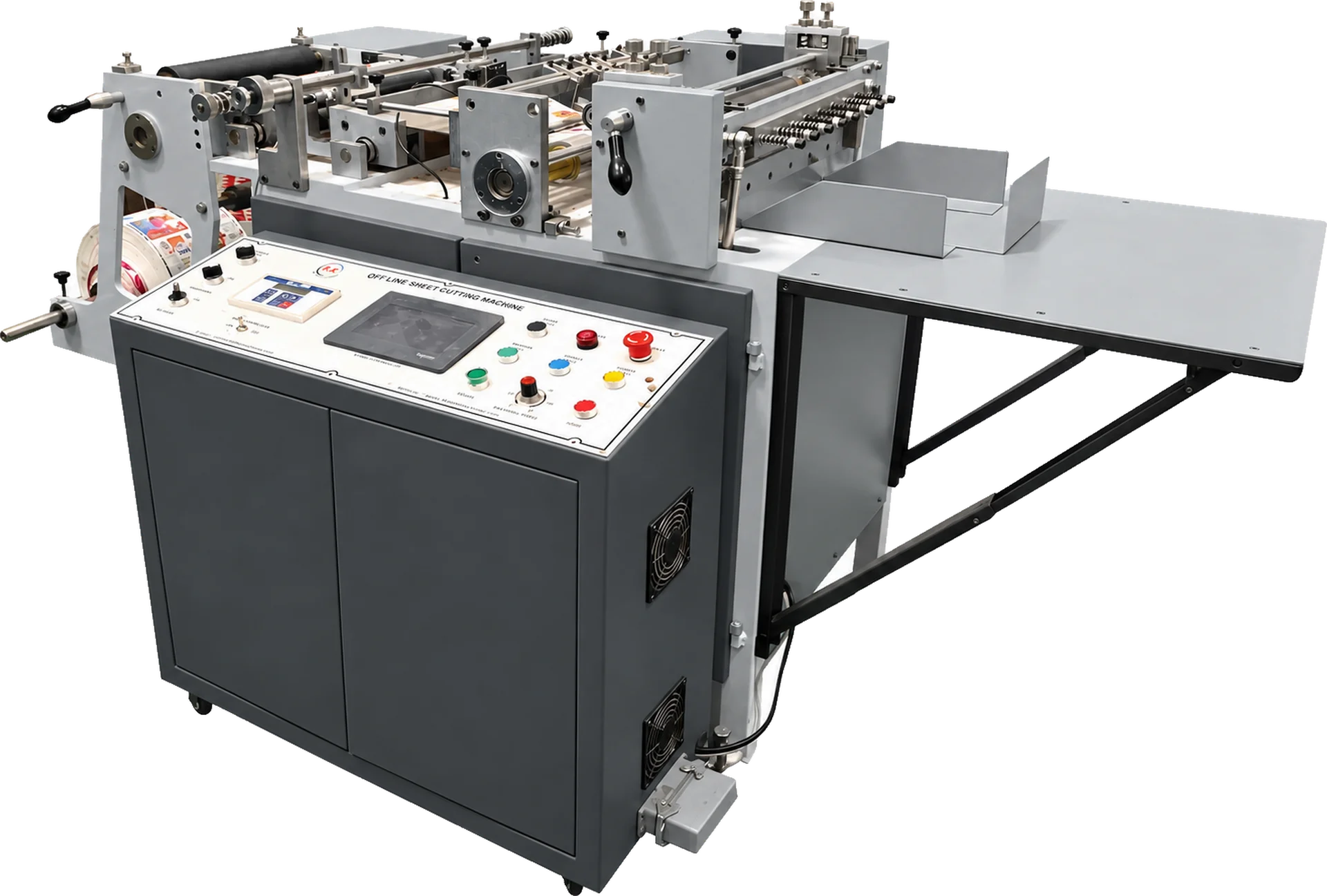

Offline Roll to Sheet Cutting Machine 320 mm – Label Roll to Sheet Cutter With Servo Feed

It is a narrow web paper sheet cutting machine built around label roll sizes. The unwind is an auto unloading unit for rolls up to 600 mm diameter on a 3 inch air shaft, with tension controlled by a powder brake and an imported ultrasonic edge scanner web guide holding the web edge in line. An electronic feeding system with a servo motor pulls the web, and cutting is controlled by length feed or by a print mark scanner.

The cutting unit is driven by a mechanical eccentric movement with hardened top and bottom blades on a mechanical motor mechanism. A digital electronic controller handles cut set, sheet set and the total stroke count. Slitting is done inline by an attachment with a blower, and the cut sheets travel out on a conveyor. The machine occupies about 9 ft by 3.5 ft of floor and stands 5 ft high.

Servo Feeding With Print Mark Scanner

An electronic feeding control system with a servo motor advances the web by the set length, and a print mark scanner triggers the cut on the printed mark. Cutting accuracy depends on the print mark scanner and the servo feed, which is why both are standard.

30 mm Minimum Cut Length

Sheets as short as 30 mm can be cut, which covers small coupons, tags and strip labels as well as full sheets.

Above 150 Strokes per Minute

The machine runs above 150 strokes per minute, depending on the sheet length, so a roll of short sheets is converted quickly.

Cuts Self-Adhesive Paper and Other Paper up to 200 GSM

Self-adhesive label stock and plain or coated papers up to 200 GSM run on the machine, which covers the usual label and paper grades a converter handles.

Auto Unloading Unwind With Powder Brake and Web Guide

Rolls up to 600 mm diameter load on a 3 inch air shaft with auto unloading. Powder brake tension control and the imported ultrasonic edge scanner web guide keep the web steady and square.

Digital Controller for Cut Set, Sheet Set and Stroke Count

The operator sets the number of cuts per set and the number of sheets per set, and the controller keeps a total stroke count, which makes counting and packing simple.

Online Slitting Attachment With Blower

An inline slitting attachment trims or splits the web, and a blower carries the trim away from the cutting area.

Conveyor Sheet Collection

Cut sheets leave the machine on a conveyor unit, so the operator collects neat stacks instead of catching sheets at the blade.

The printed or plain roll is loaded on the air shaft of the auto unloading unwind and threaded through the web guide, the servo feed rollers, the slitting attachment and the cutting unit on to the conveyor. On the controller the operator enters either the sheet length or selects print mark mode and positions the scanner over the mark, then sets the cut set and sheet set counts.

When the machine runs, the powder brake keeps the web in tension, the ultrasonic web guide corrects the edge and the servo feeds one sheet length per cycle. The hardened blades cut on the eccentric stroke, the sheet moves out on the conveyor and the controller counts the stroke. In print mark mode the scanner re-checks every cut against the printed mark, so a small drift in the printed repeat does not build up along the roll. At the end of each sheet set the operator lifts the stack from the conveyor.

• A4 and sheet labels – converting self-adhesive label rolls into sheets for laser and office printing.
• Printed coupons and tags – cutting short printed items on the mark from 30 mm upwards.
• Inserts and leaflets – small format paper sheets from printed reels.
• Sheet fed label application – sheets for hand or semi-automatic application where rolls are not wanted.
• Sample and short run work – quick roll to sheet conversion beside the label press.

The machine is specified for self-adhesive paper and other papers up to 200 GSM, in rolls up to 320 mm wide. That covers standard label stocks, coated and uncoated papers and light boards. For film label stocks or heavier materials, send RK samples so the blade set and tension can be confirmed before the machine is offered.

• Offline Roll to Sheet Cutting Machine 1300 mmthe wide web model with 4 kW servo feed, side trimming and an auto step-down collection table.
• Foam Roll to Sheet Cutting Machine1200 mm machine that pastes foam to base release and cuts sheets under HMI and PLC control.

RK Label Printing Machinery Pvt. Ltd. has built label printing and converting machinery in Ahmedabad, Gujarat since 1995, operates three manufacturing units and supplies customers in 23+ countries. The 320 mm roll to sheet cutter shares its servo feeding, print mark scanning and web guiding with RK's label die cutters, so the accuracy comes from parts that already run in label plants across India. RK configures the machine to your roll and sheet sizes and remains the single point of contact for service.

• Roll width: up to 320 mm on this model; up to 1300 mm on the wide web model.
• Roll diameter: the unwind takes up to 600 mm.
• Sheet lengths: minimum 30 mm here; tell RK your longest sheet too.
• Material: self-adhesive paper and papers up to 200 GSM are covered.
• Printed work: if your reels are printed, the print mark scanner is what keeps the cut in position.
• Counting and packing: the cut set and sheet set controller suits jobs packed in fixed quantities.

The price of the RK 320 mm offline roll to sheet cutting machine depends on the configuration supplied, including blade sets and any options for your rolls and sheet sizes. RK quotes ex-works Ahmedabad with GST at 18% applicable. Engineer travel and stay for installation and training at your site are borne by the customer. Share your roll sizes, material, sheet formats and whether the rolls are printed with RK, and the team will confirm the build and quote against it.
