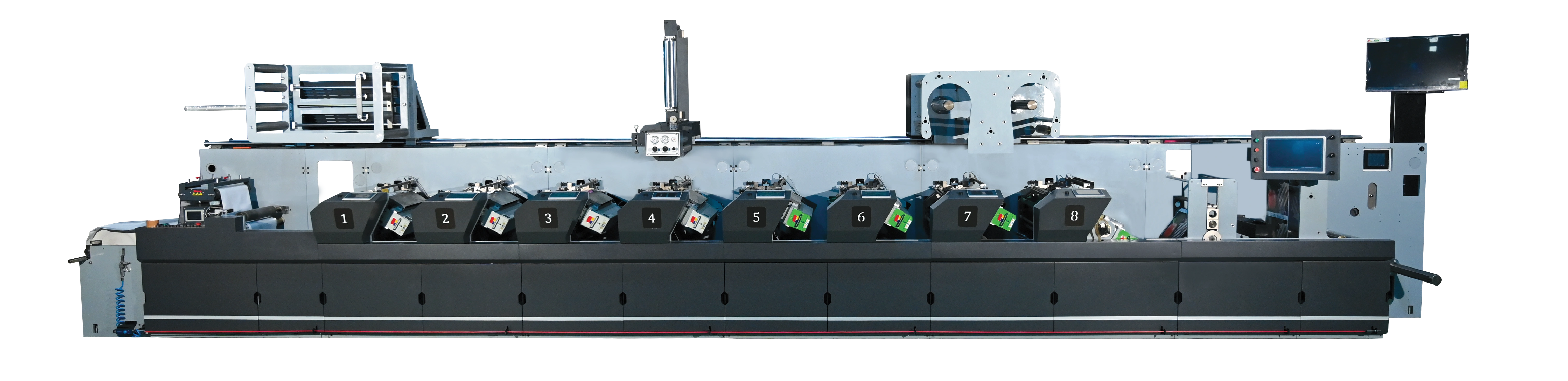

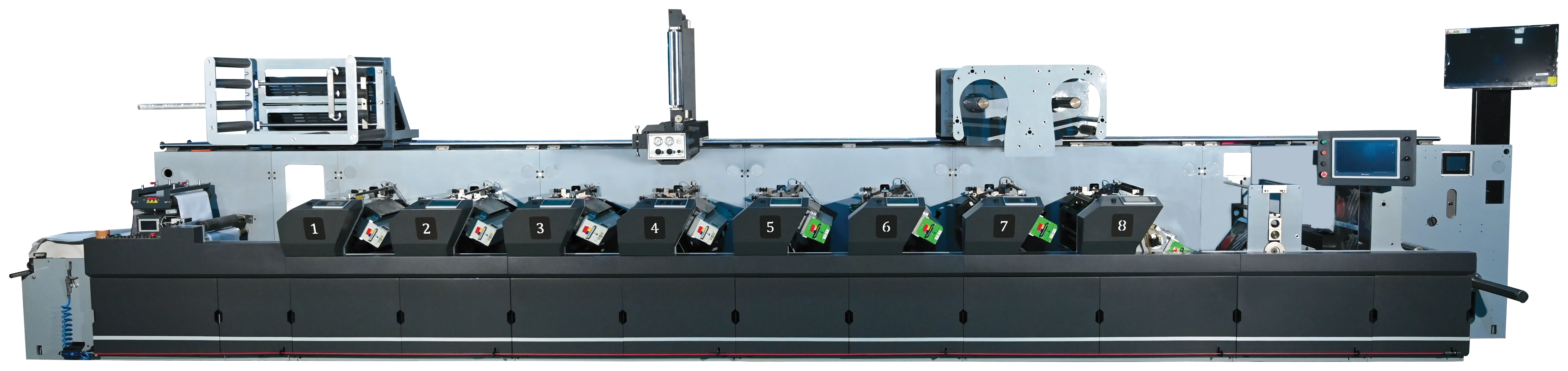

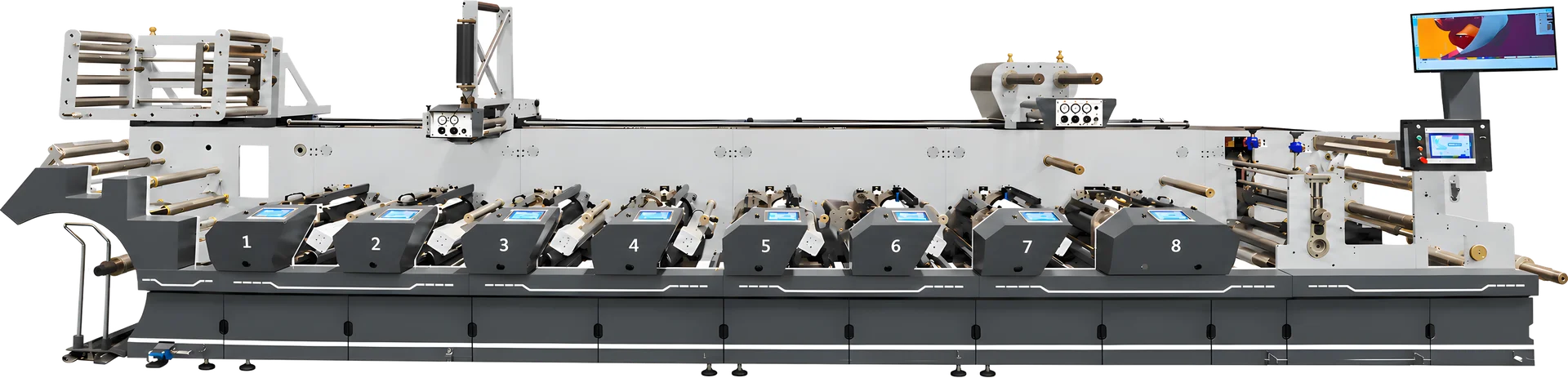

FMS-3S Series – Triple Servo Flexo Printing Machine

The FMS-3S Series is a rotary flexographic press in which every printing unit has three independent servo motors. Where a standard servo press drives each unit with one motor, the 3S separates the plate cylinder, anilox roller and impression drive. The control system can then adjust each of these individually, without gears, which is what gives the press its registration accuracy and its ability to switch between substrates.

The machine is designed for printing on self-adhesive labels, unsupported paper, BOPP, PE, PET shrink film, blister foil, lami tube and similar materials, across a substrate range of 12 micron to 200 GSM. It is available with 1 to 3 die-cutting stations, and the stable aluminium printing cylinder keeps the press light to operate and accurate in print.

Three Servo Motors in Each Printing Unit

Plate, anilox and impression each have their own drive. Registration is corrected at the individual unit, and re-pass is available on all stations. This is the highest level of drive control in the RK flexo range.

Auto Pre-Register and Auto Re-Register

Auto pre-register brings every unit into position before the job starts, so the first metres of the roll are already close to register. Auto re-register keeps it there during the run and after any stop. Together they mean quick job changeover with minimal waste.

Chilled Impression Drum With Short Paper Path

The web is printed against a chilled impression drum. The short path between units and the temperature control keep film substrates stable, which is what makes the press usable on PET shrink film and thin BOPP as well as paper.

10" Main HMI and 7" HMI on Every Station

The operator has a 10" main touch screen for the line and a 7" screen at each printing station. Settings are made where the operator stands, not by walking back to a central panel.

200+ Stored Recipes and Low-Ink Startup

Repeat jobs are recalled from memory with their settings. Low-ink startup reduces ink and substrate consumption when the press comes up to speed.

Multi-Substrate Capability

Self-adhesive labels, unsupported paper, BOPP, PE, PET shrink film, blister foil and lami tube all run on the same press, within the 12 micron to 200 GSM range.

Stable Aluminium Printing Cylinder

Lightweight aluminium cylinders are easy for the operator to handle at job change and hold their accuracy in the press.

The roll is loaded on the unwinding unit (up to 900 mm diameter) and the web is guided and tensioned into the first printing unit. At each unit, the anilox servo meters ink onto the plate, the plate servo keeps the image in register, and the impression servo holds the web against the chilled impression drum. Because the three drives are independent, the operator can trim any one of them from the 7" station HMI without affecting the others.

After each colour the web is dried and, because the path between units is short and the drum is chilled, the substrate stays stable into the next unit. Auto re-register monitors and corrects registration throughout the run. After the last colour the web passes through the die-cutting stations (one to three, depending on the configuration) and winds on the rewinding unit, again up to 900 mm diameter. A repeat job is recalled from the stored recipes and the press pre-registers itself before the first metre is printed.

Self-adhesive labels

pharma, food, cosmetics and FMCG labels in long and short runs.

PET shrink film

shrink sleeve labels where heat control is critical.

Unsupported paper

wraps, sachets and paper packaging.

BOPP and PE film

flexible packaging and film labels.

Blister foil

pharmaceutical blister printing.

Lami tube

laminated tube stock for cosmetics and toothpaste.

The published substrate range is 12 micron to 200 GSM, covering self-adhesive label stock, unsupported paper, BOPP, PE, PET shrink film, blister foil and lami tube. The chilled impression drum and independent impression drive are what allow such different materials to run on one press. Share your actual materials with RK so the anilox, plates and drying are matched to them.

• FMS-2S Seriestwo servos per station, a step below the 3S.
• Flexo Printing Machine With Full Servoone servo per station with all UV and hot air drying.
• Horizontal Narrow InlineRK's inline flexo range for narrow web labels.
• Wide Web Hybrid Flexo Printing Machinefor wider web and hybrid work.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, operates three manufacturing units and supplies customers in 23+ countries. The FMS range is offered at three drive levels – single servo, 2S and 3S – so a printer buys the control level the jobs actually need. Every machine is configured against the customer's substrates, colour count, web width and finishing rather than sold as a fixed model, and RK's die-cutting, slitting and inspection machines complete the line from one supplier.

• Substrate mix: if you run film, foil and paper on one press, the 3S's independent impression drive earns its cost. If you run paper labels only, the 2S or the single servo Flexo Printing Machine With Full Servo may be enough.
• Colours: 2 to 12 – count the colours on your regular jobs.
• Web width: 320, 450, 550 or 670 mm, matched to your label layouts and supplier roll widths.
• Repeat range: 200 to 650 mm – check your label and pack sizes.
• Die cutting: 1 to 3 stations, depending on whether you need die cutting, sheeting and full cutting inline.
• Job frequency: many short jobs a day make auto pre-register and stored recipes a bigger saving than top speed.

The price of an FMS-3S Series press depends on colour count, web width, number of die-cutting stations, drying arrangement, anilox and cylinder sets and options. Prices are quoted ex-works Ahmedabad with GST at 18% applicable; engineer transport and stay for installation and training at your site are borne by the customer. Share your substrates, print widths, colour count, repeat sizes and production target with RK and the engineering team will recommend a configuration and quote against it.
