An intermittent die cutting machine feeds the web forward with a servo motor in exact steps, and a common magnetic cylinder carries a flexible die that is changed for each job. The repeat length is set on screen, not by the cylinder size, which makes it a practical label cutting machine for plants that run many different label sizes.
RK Label Printing Machinery Pvt. Ltd. manufactures two intermittent machines in Ahmedabad, Gujarat: the RK-IMS 320 / 450 intermittent semi rotary die cutting machine with full cutting facility, and the IMSP-350, the same cutting section with a flexo printing unit in front of the die unit, so plain stock is printed and then cut in one pass.
01 — Range

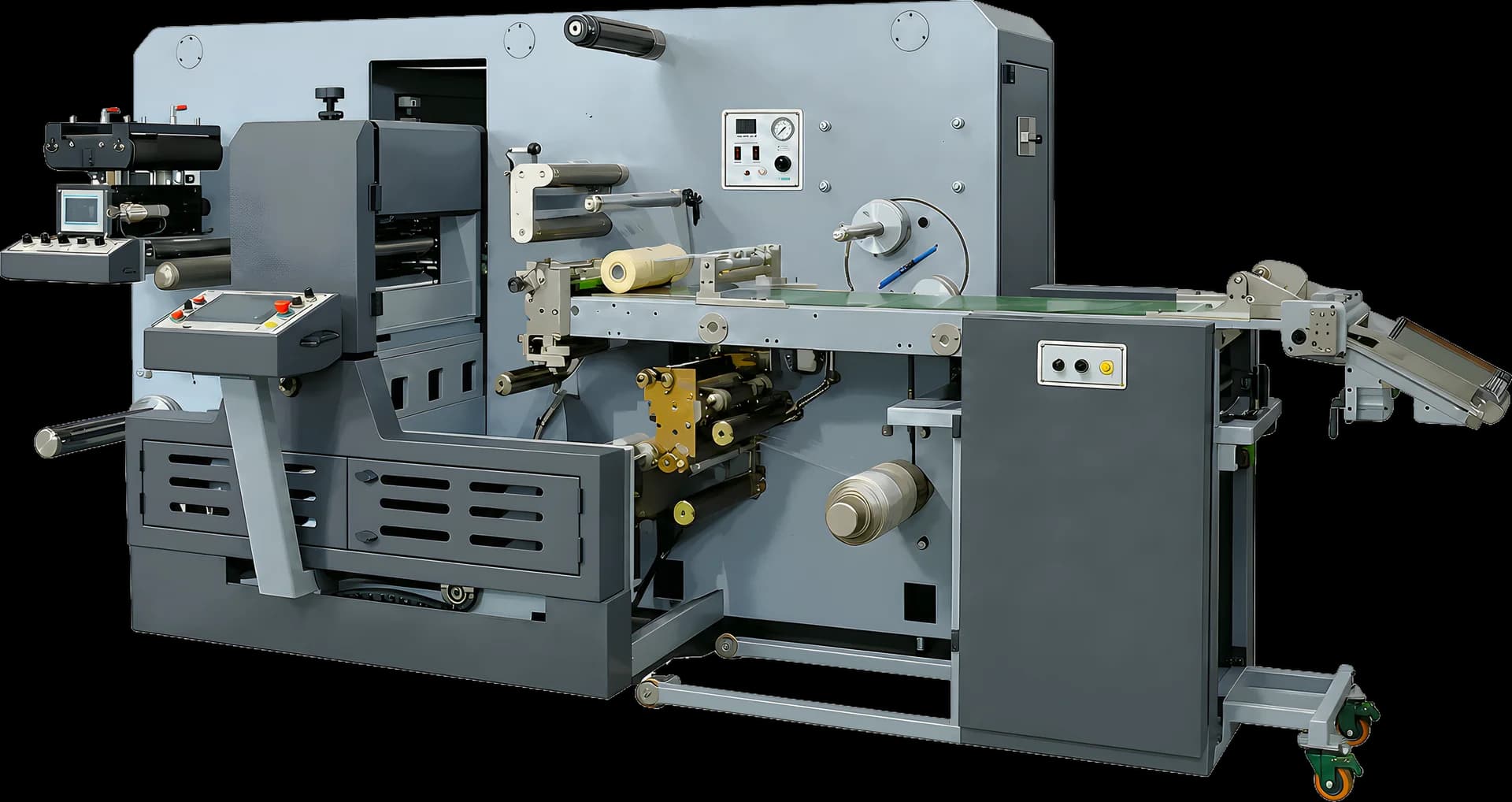

The RK-IMS 320 / 450 is made in two sizes, with a maximum paper width of 310 mm and 440 mm, and handles die cutting repeat lengths from 25 mm to 470 mm on a common magnetic cylinder of 120 or 150 teeth. It performs both half cutting, where labels are kiss cut on the liner and rewound as a roll, and full cutting, where labels are cut right through and collected on a conveyor with a vacuum system. It runs 150 to 200 strokes per minute.

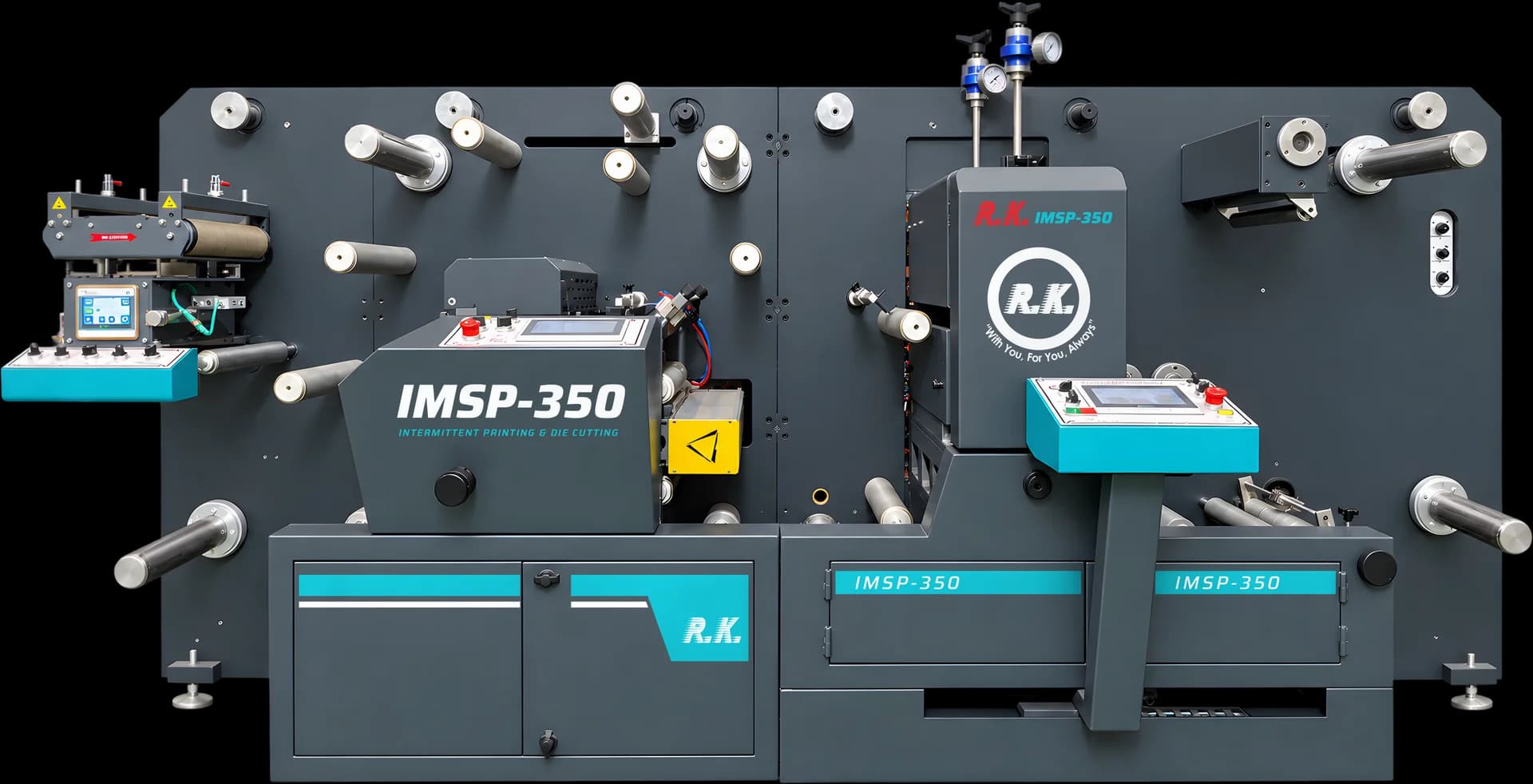

View PageThe IMSP-350 puts printing and cutting on one machine. A flexo printing unit, available from 1 to 12 colours, sits in front of the die cutting unit, so there is no second set-up, no roll change and no re-registration between print and cut. It switches between semi rotary and full rotary modes, half cuts and full cuts on a 350 mm web, takes repeat lengths of 25 to 250 mm and runs 100 to 150 strokes per minute.
View Page02 — Selection Guide
03 — FAQ
It is a die cutter in which a servo feeds the web forward one repeat at a time and a common magnetic cylinder makes the cut. The repeat length is set on screen, so one cylinder covers many label sizes with only the flexible die changing between jobs.
The IMS is the die cutting machine. The IMSP-350 is the same machine with a flexo printing unit in front of the die unit.
RK Label Printing Machinery Pvt. Ltd. manufactures the RK-IMS 320 / 450 and the IMSP-350 in Ahmedabad, Gujarat, India.
Tell the RK team what you print and cut, your label sizes, materials, number of colours and run lengths. RK will recommend the RK-IMS 320 / 450 or the IMSP-350 and quote against it.
Our engineers are ready to help you choose the right production line. Send us your requirements for a detailed proposal.
