Batch Coding Machine Manufacturer in India

Every product on a shop shelf carries information that changes from batch to batch: the MRP, the batch number, the manufacturing date and the expiry date. A batch coding machine prints that information on the label so the packing line never waits for coding and every roll of labels carries the right data.

RK Label Printing Machinery Pvt. Ltd. manufactures batch coding machines for label rolls in Ahmedabad, Gujarat. The range on this page has two machines. The Roll To Roll Batch Coding Machine codes pre-printed label rolls up to 300 mm wide while rewinding them at a constant speed, with a flat 500 mm space that takes a CIJ or TIJ online coder. The Slitting With Batch Coding Machine, model RK HSI-320, combines label inspection, missing label detection, batch coding and slitting on one 320 mm machine.

This page explains what a batch coding machine does, how the two RK models differ, and how to choose the right one for your labels.

Model No: RK HSI-320
Max Paper Width: 320 mm
Speed: Machine Mechanical Speed – 100 m/min
Machine Type: Sticker Label Inspection + Slitting Machine With Batch Coding Label

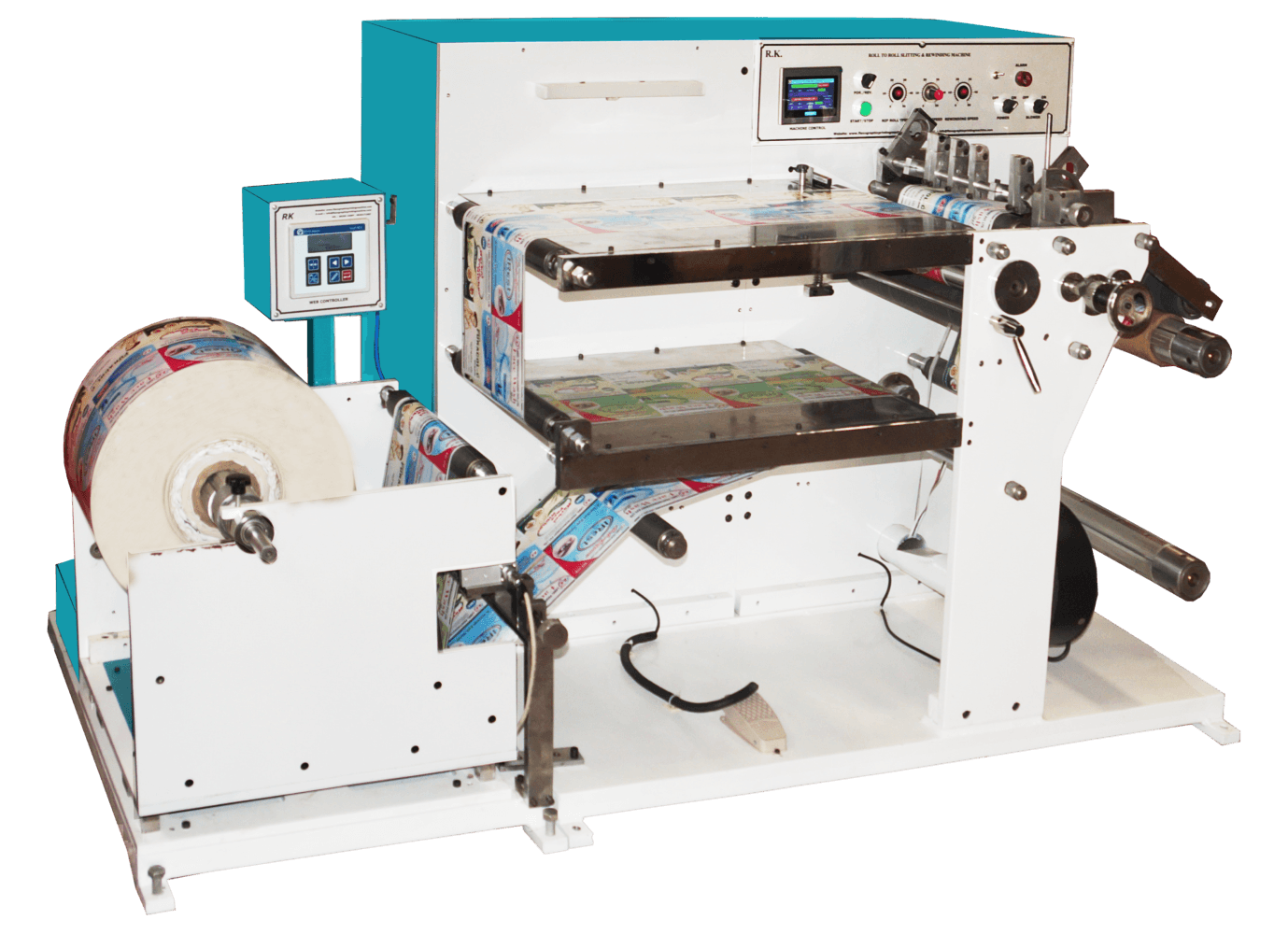

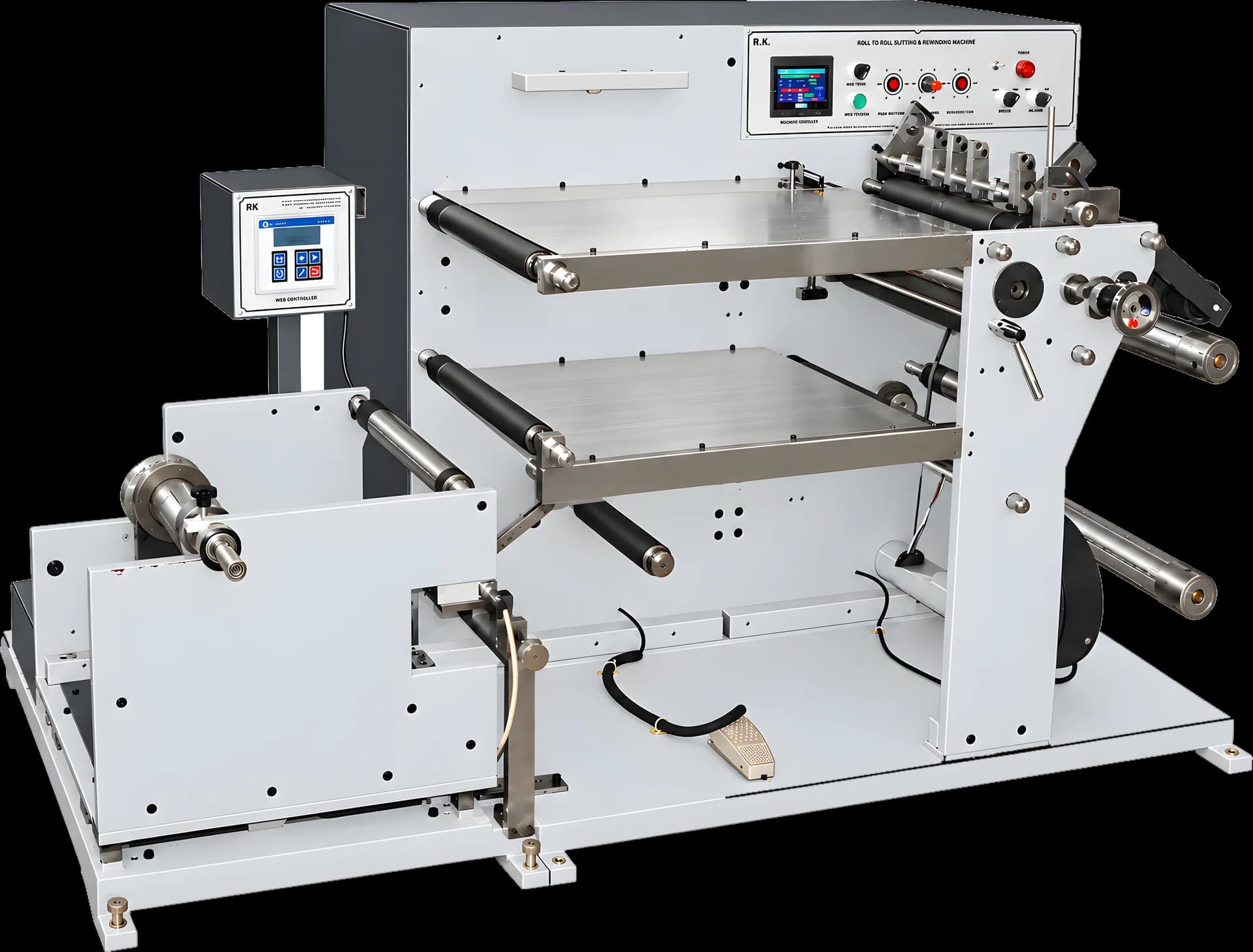

Slitting With Batch Coding Machine

Max Paper Width: Paper width 300mm
Machine Type: Roll To Roll Batch Coding Rewinding Machine

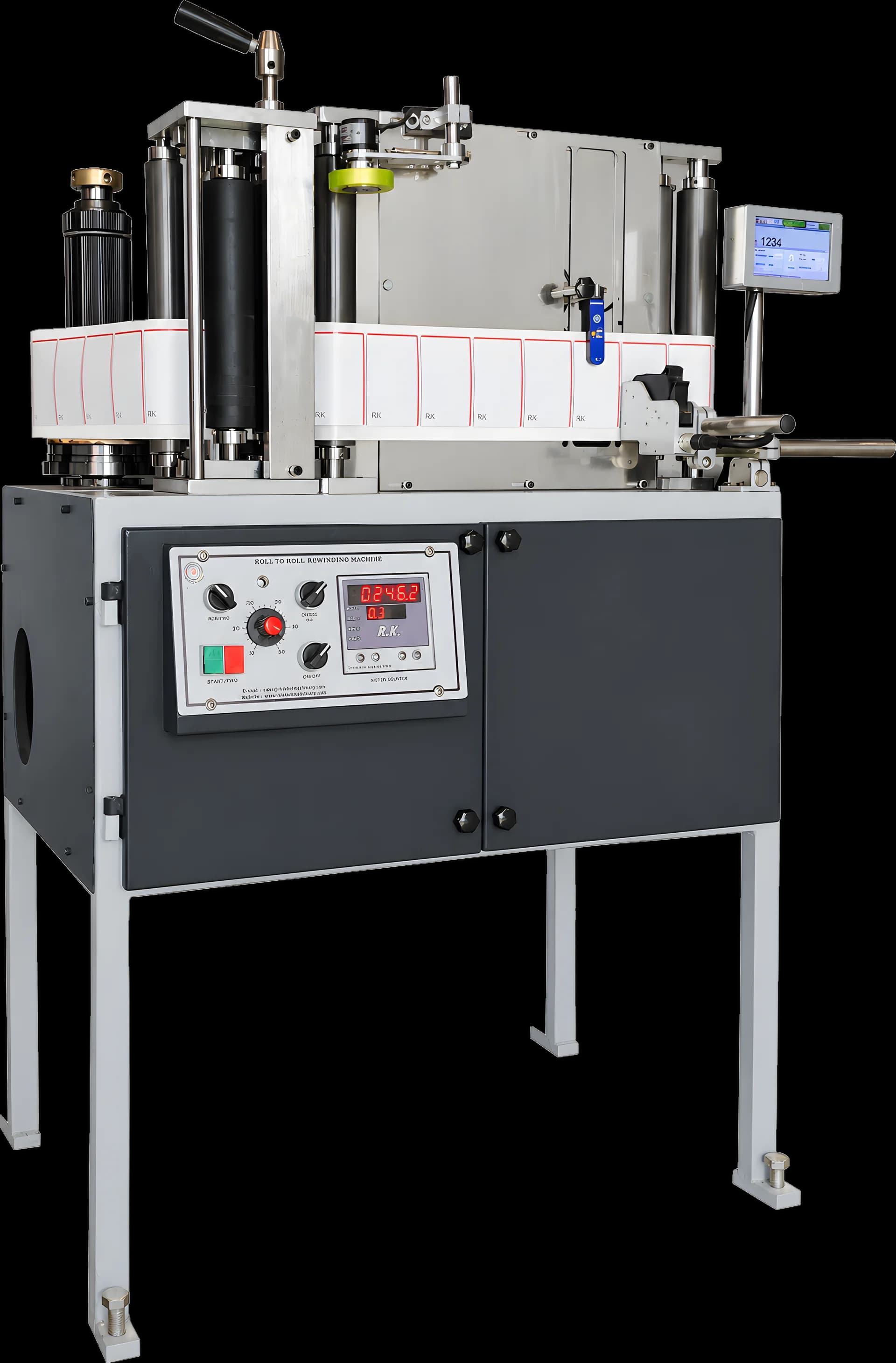

Batch Coding Machine

01 — What Is It

What Is a Batch Coding Machine?

A batch coding machine prints variable data on labels or packaging. Variable data is the information that changes from batch to batch or day to day: manufacturing and expiry dates, batch and lot numbers, MRP, serial numbers, barcodes and QR codes. The printed artwork on the label stays the same. The batch coding machine adds the changing part.

For label rolls the coding is done roll to roll. A pre-printed label roll unwinds, passes a coding head that prints the data on each label, and rewinds as a coded roll ready for the labelling machine. The coding head itself is an online coder, either CIJ (continuous inkjet) or TIJ (thermal inkjet), fitted on the machine.

RK's Roll To Roll Batch Coding Machine is built for this. It provides the unwinding, the web control, the flat coding space and the constant speed rewinding, and accepts either coder type. For plants that also inspect and slit their rolls, the RK HSI-320 does coding and slitting in one pass.

02 — Range

The RK Batch Coding Machine Range

Batch Coding Machine (Roll To Roll Batch Coding Rewinding Machine)

The Roll To Roll Batch Coding Rewinding Machine takes label rolls up to 300 mm wide. The unwinding unit holds a roll up to 500 mm with a web control unit, and the winding unit takes a roll up to 500 mm with a nip roller attachment for constant speed winding. Between them is a flat 500 mm space for the batch coding attachment, where a CIJ or TIJ online coder is fitted. RK can supply and fit the coder, or the customer can fit their own. A 1 HP DC variable speed control motor drives the machine, so the speed can be matched to the coder and the job. It suits any plant that receives pre-printed label rolls and needs to add MRP, batch number and dates before labelling.

View Page

Slitting With Batch Coding Machine (RK HSI-320)

The RK HSI-320 is a sticker label inspection and slitting machine with batch coding and missing label detection, for a maximum paper width of 320 mm. It has a 24 inch top side inspection table and a 24 inch bottom table for fixing the batch coding unit, missing label detection for single and double ups on die cut labels with a gap, and positioning of the missing label at the inspection table. The coding unit is not supplied with the HSI-320; the customer fits their own, or RK can fit one at extra charge. Slitting is by both rotary and shear blades with an air blower for waste trimming. The unwind takes a 600 mm roll with an imported ultrasonic web guide, and the up and down rewinding unit takes 300 mm rolls on 1 inch, 1.5 inch or 3 inch cores selected on the touch screen. Two 1 HP variable speed motors run the nip roll and the rewinder at a mechanical speed of 100 m/min. It suits label printers who want to inspect, code and slit in one pass.

View Page

03 — Key Features

Key Features of RK Batch Coding Machines

Fits a CIJ or TIJ Coder

The Roll To Roll Batch Coding Machine has a flat 500 mm space for the batch coding attachment, and the HSI-320 has a 24 inch bottom table for fixing the coding unit, so either coder technology can be mounted.

Constant Speed Rewinding

A nip roller attachment on the Roll To Roll machine keeps the winding speed constant, so the coder prints at a steady rate along the whole roll.

Web Control on the Unwind

The Roll To Roll machine has a web control unit on its 500 mm unwind. The HSI-320 has an imported ultrasonic electronic web guide on its 600 mm unwind.

Missing Label Detection

The HSI-320 detects missing labels for single and double ups on die cut labels with a gap and positions the fault at the inspection table.

Coding and Slitting in One Pass

On the HSI-320, coded rolls are slit with rotary or shear blades and rewound on the chosen core size in the same run.

Variable Speed Drive

A 1 HP DC variable speed motor on the Roll To Roll machine, and two 1 HP AC variable speed motors on separate Schneider frequency drives on the HSI-320, let the operator set the speed to suit the coder.

Label Counting With Auto Stop

The HSI-320 has a Panasonic label counting sensor with metre and label counters and auto stop control.

04 — How It Works

How Does a Batch Coding Machine Work?

The pre-printed label roll is loaded on the unwinding unit. On the Roll To Roll Batch Coding Machine the web control unit keeps the roll aligned as it unwinds. On the HSI-320 the ultrasonic web guide does the same.

The web moves across the flat coding space, where the CIJ or TIJ coder prints the batch data, the MRP, the dates and any barcode or QR code onto each label. On the HSI-320 the web first passes the 24 inch inspection table, where the operator checks the labels and the sensor flags any missing label, and the coding unit is fixed on the bottom table.

The coded web then winds up. On the Roll To Roll machine the nip roller attachment keeps the winding speed constant so the coder output stays even. On the HSI-320 the web is slit into lanes and rewound on the up and down rewinding unit, with the counter stopping the machine at the set label count.

05 — Applications

Applications

Pharmaceutical labels - batch number, manufacturing and expiry dates on every label roll.

Food and beverage labels - MRP and date coding on pre-printed rolls before labelling.

Cosmetic and personal care labels - lot numbers and dates without reprinting the artwork.

FMCG and consumer goods - MRP printing on label rolls for retail packs.

Serial numbers and QR codes - printed by the coder fitted on the machine.

Inspection and coding together - the HSI-320 checks, codes and slits rolls for label printers.

Contract packers - coding customer-supplied label rolls to order.

06 — Materials

What Materials Can It Run?

The RK machines are built for pre-printed self-adhesive label rolls, up to 300 mm wide on the Roll To Roll Batch Coding Machine and up to 320 mm wide on the HSI-320, which is made for die cut sticker labels with a gap. The coder decides which surfaces can be printed. Paper and coated label stock are the usual materials, and the coder supplier confirms suitability for film. Share your label material with RK, as the company runs a trial on the customer's own material before almost every order.

07 — Selection Guide

How to Choose the Right Batch Coding Machine

01What do you need to print?Dates and batch numbers only, or barcodes and QR codes as well? This decides the CIJ or TIJ coder fitted on the machine.

02How wide are your label rolls?Up to 300 mm suits the Roll To Roll Batch Coding Machine. Up to 320 mm needs the HSI-320.

03Do you also need inspection and slitting?If yes, the HSI-320 does coding, missing label detection and slitting in one pass.

04What roll diameters do you handle?The Roll To Roll machine takes 500 mm unwind and rewind. The HSI-320 takes a 600 mm unwind and rewinds to 300 mm.

05Do you need label counting?The HSI-320 counts labels and metres with auto stop.

06Which core sizes do you use?The HSI-320 rewinds on 1 inch, 1.5 inch or 3 inch cores.

07What power do you have?The Roll To Roll machine has a 1 HP DC motor. The HSI-320 consumes 2 HP single phase.

08 — Why RK

Why Choose RK Label Machines?

RK Label Printing Machinery Pvt. Ltd. has manufactured printing and converting machinery since 1995 from its head office in GIDC Vatva, Ahmedabad, with three manufacturing units in Gujarat. Its batch coding machines are built alongside its label inspection, slitting and printing machines, so the whole label line, from printing to coding to finishing, can come from one manufacturer.

Manufacturing printing and converting machinery since 1995.

Three manufacturing units in Gujarat and customers in 23+ countries.

A trial on the customer's own material before almost every order.

Machines that accept either a CIJ or a TIJ coder.

Label printing, inspection and slitting machines from the same supplier.

09 — Price

Batch Coding Machine Price in India

The batch coding machine price depends on the model, the Roll To Roll Batch Coding Machine or the RK HSI-320 with inspection and slitting, and on the coder technology chosen. Prices are quoted ex-works Ahmedabad with GST at 18 percent extra. Engineer travel and stay for installation and training at your site are borne by the customer. Send RK your label width, roll sizes, the data you need to print and your daily volume, and the team will recommend a model and send a quotation.

10 — FAQ

Frequently Asked Questions

A machine that prints variable data such as MRP, batch number, manufacturing and expiry dates, serial numbers, barcodes and QR codes on labels or packaging. RK's machine does this on pre-printed label rolls, roll to roll.

RK Label Printing Machinery Pvt. Ltd. manufactures the Roll To Roll Batch Coding Machine and the RK HSI-320 Slitting With Batch Coding Machine in Ahmedabad, Gujarat.

Yes. The Roll To Roll Batch Coding Machine has a flat 500 mm space for the batch coding attachment, and the HSI-320 has a 24 inch bottom table for fixing the coding unit.

300 mm on the Roll To Roll Batch Coding Machine and 320 mm on the RK HSI-320.

Yes. With a CIJ or TIJ coder fitted, it prints MRP, batch and lot numbers, manufacturing and expiry dates, serial numbers, barcodes and QR codes.

The RK HSI-320 does. It inspects, detects missing labels, codes and slits 320 mm rolls in one pass. The Roll To Roll Batch Coding Machine codes and rewinds only.

The Roll To Roll machine takes a 500 mm unwind and 500 mm rewind. The HSI-320 takes a 600 mm unwind and rewinds up to 300 mm.

The price depends on the model and the coder chosen and is quoted ex-works Ahmedabad with GST at 18 percent extra. Ask RK for a quotation with your requirement.

The Roll To Roll machine runs at a constant speed with a variable speed motor and nip roller winding. The HSI-320 has a Schneider PLC and touch screen with label counting and auto stop.
