A label press or die cutting machine is only as good as the parts that touch the job. The die decides how clean the label shape is. The printing cylinder decides the repeat. The rubber roll decides how evenly the web is nipped. The powder brake decides whether the roll unwinds at a steady tension. When one of these wears out or a new job needs a new size, the shop needs the part quickly and made to the machine it fits.
RK Label Printing Machinery Pvt. Ltd. makes these label machine accessories and spare parts in Ahmedabad, Gujarat, for its own machines and for the machines already running in customers' plants. RK has built label printing and converting machinery since 1995, so the accessories are made by the same people who build the presses they go into.
The six items on this page are the Flexible Die, Magnetic Cylinder, Powder Brake and Clutch, Printing Cylinder, Rubber Roll and Solid Die.
01 — What Is It
Label machine accessories are the tooling and wear parts that a label printing or converting machine needs for a specific job. Unlike the machine itself, they are tied to the job: a die is made for one label shape, a printing cylinder for one repeat length, a rubber roll for one roller position.
Some are consumables that wear with use, such as rubber rolls. Some are tooling that you order per job, such as flexible dies, solid dies and printing cylinders. Some are machine components that are replaced when they fail or when a machine is upgraded, such as magnetic cylinders and powder brakes and clutches.
02 — Range

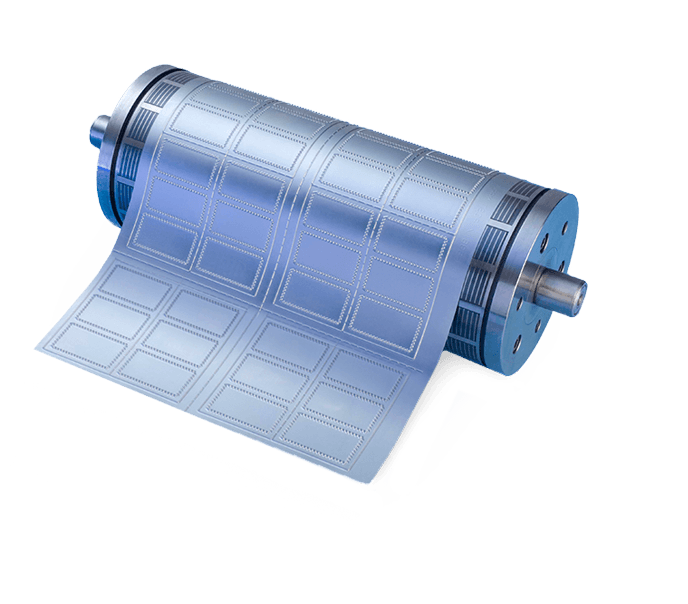

A flexible die is a thin steel plate with the label shape etched on it. It wraps around a magnetic cylinder on a rotary die cutting unit and cuts the label shape as the web passes. Flexible dies are quick to change and suit label printers who run many different shapes. RK makes flexible dies to order for the label shape, repeat and machine you run.

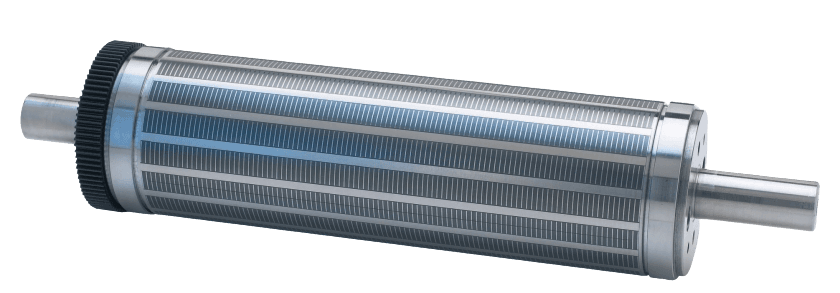

View PageA magnetic cylinder is the base cylinder that holds a flexible die on a rotary die cutting unit. Its size is set by the machine and the repeat, so it is made to order for the press or die cutter it runs in. RK supplies magnetic cylinders for its own rotary die cutting units and for customers' existing machines.

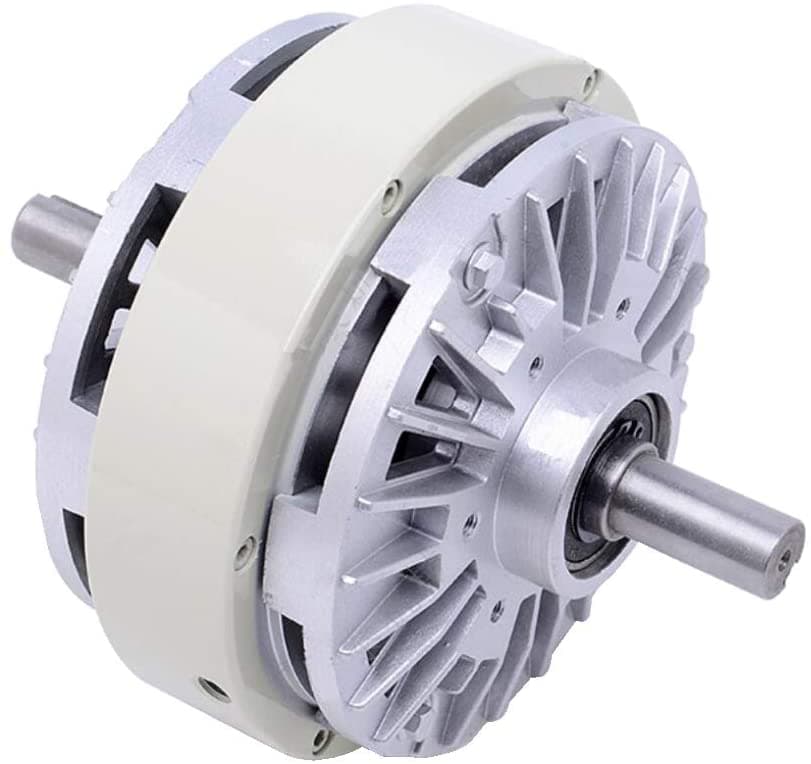

View PageA powder brake controls the tension of a roll as it unwinds, and a powder clutch controls tension on the rewind. Both are chosen by the torque needed and the shaft size of the machine. RK supplies powder brakes and clutches sized to the unwind or rewind unit they will control.
View PageA printing cylinder carries the printing plate on a flexo press. Its circumference sets the repeat length of the label, so a press needs a cylinder for each repeat it prints. RK makes printing cylinders to order for the press and the repeat. Cylinders can be made with any number of teeth the customer specifies.
View PageRubber rolls are used in nip, impression, feed and guide positions on printing and converting machines. They wear with use and are replaced or recovered. RK makes rubber rolls to order for the position and machine they fit.
View PageA solid die is a one piece engraved cylinder that cuts the label shape directly, without a magnetic cylinder. It suits long running shapes and heavier cutting work. RK makes solid dies to order for the machine, shape and repeat.
View Page03 — Key Features
Every accessory is made to the machine, position and job you specify, whether it runs on an RK machine or on another make already in your plant.
RK builds flexo presses, rotary and flatbed die cutters and slitters, so the accessories are designed by the same manufacturer that designs the machines they fit.
Flexible dies, solid dies and magnetic cylinders cover both quick change and long run rotary die cutting, and are matched to the label shape and repeat.
Powder brakes and clutches are sized by torque and shaft size to the unwind or rewind they control, so web tension stays steady.
Printing cylinders are made per repeat length, so a press can be tooled for new label sizes as jobs change.
Rubber rolls and other wear parts come from the same manufacturer as the machine, which shortens the wait when a part needs replacing.
04 — How It Works
On a flexo press, the printing cylinder carries the plate for the job and its circumference sets the repeat. The web is nipped and guided by rubber rolls at several points. The roll on the unwind is held at a steady tension by a powder brake, and on the rewind by a powder clutch.
After printing, the web reaches the rotary die cutting unit. There a flexible die on a magnetic cylinder, or a solid die, cuts the label shape as the cylinder turns, and the waste matrix is stripped away.
When the job changes, the shop changes the tooling: a new printing cylinder for a new repeat, a new flexible die or solid die for a new shape. When a part wears, the shop replaces it: a rubber roll that has hardened, or a powder brake that no longer holds tension. RK supplies both the tooling and the replacements.
05 — Applications
06 — Materials
The accessories on this page are tooling and machine parts, so the material question is about the labels they process. Flexible dies, solid dies and printing cylinders are made for the label stock, shape and repeat you run. Rubber rolls are made for the position and duty on the machine. The site does not publish material grades or size ranges for these items, so share your machine make, model, shaft sizes and job details with RK, and the team will confirm what can be made.
07 — Selection Guide
08 — Why RK
RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad since 1995, with its head office in GIDC Vatva and three manufacturing units in Gujarat. The company supplies machinery and parts to customers in 23+ countries, and makes accessories for its own machines and for others already running in customers' plants.
09 — Price
The price of each accessory depends on the item, its size and the machine it fits. Dies and cylinders are priced by repeat and shape, powder brakes and clutches by torque rating, and rubber rolls by size and position. Prices are quoted ex-works Ahmedabad, with GST at 18 percent extra. Where an engineer visits the site for fitting or training, travel and stay are borne by the customer. Send RK the machine details and the part you need for a quote.
10 — FAQ
The tooling and wear parts a label printing or converting machine needs for a job: dies, cylinders, rubber rolls and tension control parts. RK makes flexible dies, solid dies, magnetic cylinders, printing cylinders, rubber rolls and powder brakes and clutches.
A flexible die is a thin etched steel plate that wraps around a magnetic cylinder and is quick to change. A solid die is a one piece engraved cylinder that cuts directly and suits long runs and heavier cutting.
It is the base cylinder that holds a flexible die on a rotary die cutting unit. It is made to the machine and repeat.
A powder brake holds the unwind roll at a steady tension, and a powder clutch controls tension on the rewind. Both are chosen by torque and shaft size.
The circumference of the printing cylinder sets the repeat length of the label, so each repeat needs its own cylinder.
Yes. Each accessory is made to the machine, position and job you specify. Share the make, model and sizes, or send the old part.
No. All six items are made to order, so there is no fixed size list. RK confirms what can be made from your machine and job details.
RK Label Printing Machinery Pvt. Ltd., Ahmedabad, Gujarat, with its head office in GIDC Vatva and three manufacturing units in the state.
It depends on the item, size and machine. RK quotes ex-works Ahmedabad with GST at 18 percent extra.
Send RK the machine make and model, the label shape or repeat, the shaft sizes and, if possible, a drawing, sample or the old part. The team will confirm the specification and quote.
Whether you need a flexible die for a new label shape, a printing cylinder for a new repeat, a rubber roll to replace a worn one or a powder brake for an unwind unit, tell RK the machine, the position and the job. The team in Ahmedabad will make the part to fit and send a customised quotation.
