Some products need three converting steps before they are finished: a laminated layer, a glue coating and a die cut shape. Paper wristbands are the clearest example. Shops that make them the usual way run three machines and handle the material three times: laminate, glue coat, die cut. Each handling adds time, waste and a chance of misalignment.

RK Label Printing Machinery Pvt. Ltd. builds die cutting and lamination machines in Ahmedabad, Gujarat, that do these steps in one line. The RK Wrist Band Machine unwinds the paper and the release paper, coats the release paper with hot melt glue, laminates the two webs, die cuts the wristband shape on a rotary die and delivers finished bands on a conveyor. A roll goes in one end and boxed-ready wristbands come out the other. RK has built label printing and converting machinery since 1995.

The machine on this page is the Wrist Band Machine.

Type: Lamination + Hot Melt Glueing + Rotary Die Cutting
Max Roll Diameter: ø600 mm
Magnet Cylinder: 80 Teeth
Main Motor: 3 HP Three Phase with VFD

Wrist Band Machine

01 — What Is It

What Is a Die Cutting and Lamination Machine?

A die cutting and lamination machine combines two converting jobs. Lamination joins two webs together, in this case a printed paper and a glue coated release paper. Die cutting then cuts the laminated web into the finished shape with a rotary die.

On the RK Wrist Band Machine there are two unwind stations, one for the paper roll and one for the release paper. A glue station coats the release paper with hot melt through a slotter die sized to the release paper width. The two webs are sandwiched together, the rotary die cutting unit with an 80 teeth magnet cylinder cuts the wristband shape, and the bands travel along a short conveyor and then a long conveyor with vacuum hold-down to a collecting tray.

For a buyer the important numbers are the roll size, the die cutting unit and the drive: 600 mm maximum roll diameter on both unwinds, one rotary die cutting unit with nip roller and an 80 teeth magnet cylinder, and a 3 HP three phase main motor with variable frequency drive.

02 — Range

The RK Die Cutting and Lamination Machine Range

Wrist Band Machine

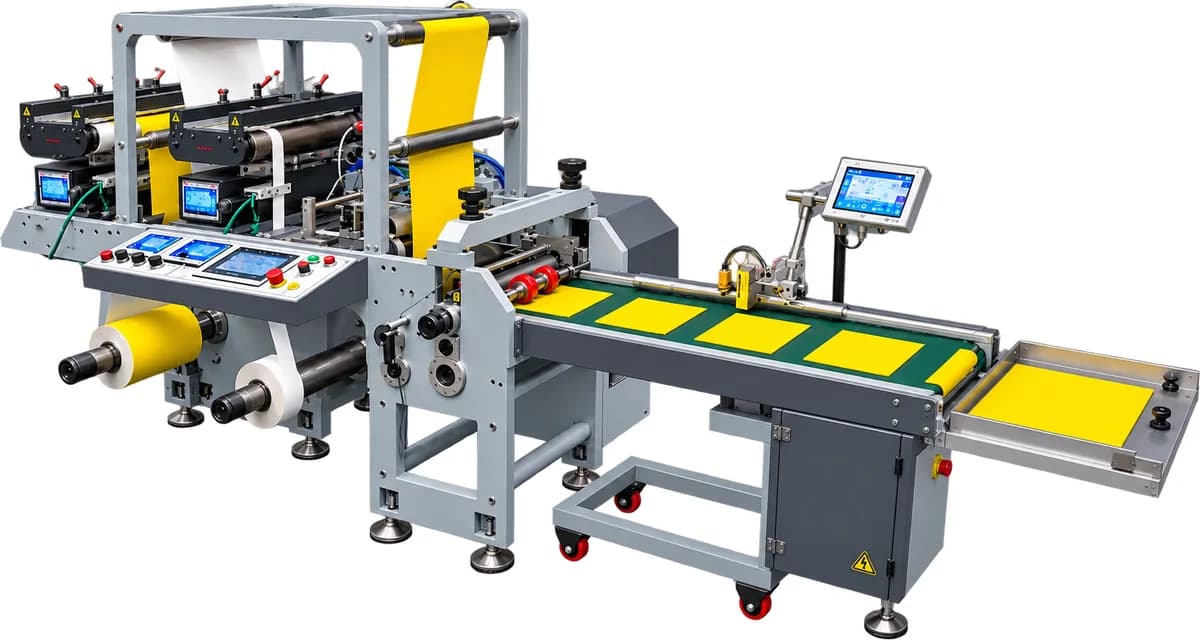

The Wrist Band Machine makes finished wristbands from a paper roll in a single pass. It unwinds the paper and the release paper on two separate stations, coats the release paper with hot melt glue through a slotter die, laminates the two webs together, die cuts the wristband shape on a rotary die, then carries the bands down a long conveyor to a collecting tray at the end.

Both unwinds take rolls up to 600 mm diameter on 3 inch air shafts, with imported electronic ultrasonic web guides on both stations. Paper tension is held by an auto electronic tension controller with load cell feedback, and release paper tension by a powder brake with amp meter. The die cutting unit has a nip roller and an 80 teeth magnet cylinder, and the main motor is 3 HP three phase AC with variable speed through a VFD. A batch coding printer and the flexible die are priced separately.

It suits wristband makers for events, hospitals and hospitality, and label converters who want to add wristbands to their range.

View Page

03 — Key Features

Key Features of RK Die Cutting and Lamination Machines

Three steps in one pass

Lamination, hot melt glueing and rotary die cutting run in line, so the material is handled once instead of three times.

Two unwind stations with ultrasonic web guides

The paper roll and the release paper each have their own unwind, up to 600 mm diameter, with an imported electronic ultrasonic guide on both stations.

Separate tension control for each web

Paper tension is controlled by an auto electronic tension controller with load cell feedback, and release paper tension by a powder brake with amp meter.

Hot melt glue station with slotter die

The glue station coats the release paper with hot melt through a slotter die sized to the release paper width.

Rotary die cutting with 80 teeth magnet cylinder

One rotary die cutting unit with nip roller and an 80 teeth magnet cylinder cuts the wristband shape; the flexible die is made to your shape.

Conveyor delivery with vacuum hold-down

A short conveyor after the die and a long conveyor with vacuum hold-down carry the bands to a collecting tray at the end.

Variable speed drive

A 3 HP three phase AC main motor with VFD lets the operator match the speed to the job.

04 — How It Works

How Does a Die Cutting and Lamination Machine Work?

The printed paper roll is loaded on the first unwind and the release paper roll on the second, each up to 600 mm diameter on a 3 inch air shaft. The ultrasonic web guides keep both webs centred, the load cell tension controller holds the paper tension and the powder brake with amp meter holds the release paper tension.

The release paper passes the glue station, where hot melt is applied through a slotter die sized to the release paper width. The two webs are then sandwiched together in the lamination section, so the paper is bonded to the hot melt coated release paper.

The laminated web enters the rotary die cutting unit. The flexible die on the 80 teeth magnet cylinder, backed by the nip roller, cuts the wristband shape. The cut bands move on to the short conveyor and then the long conveyor, where vacuum hold-down keeps them flat, and they collect in the tray at the end. Where batch coding is needed, a batch coding printer can be added and is priced separately.

05 — Applications

Applications

Event wristbands - paper wristbands for concerts, festivals and exhibitions.

Hospital and patient bands - wristbands with a release paper backing for identification.

Hospitality and resorts - guest wristbands for pools, parks and all inclusive stays.

Promotional and security bands - wristbands that can carry printing and batch coding.

Label converters - shops adding laminated and die cut products to their existing label business.

Laminated die cut items - other paper products that need a glue coated release liner and a rotary cut shape.

06 — Materials

What Materials Can It Run?

The Wrist Band Machine runs a paper roll and a release paper roll, both up to 600 mm diameter, bonded with hot melt glue. The site does not publish paper grades or widths beyond this, so confirm your paper, release liner and wristband size with RK before the machine is specified. RK runs a trial on the customer's own material before almost every order.

07 — Selection Guide

How to Choose the Right Die Cutting and Lamination Machine

01What product do you make?The RK machine is built for paper wristbands; for other laminated die cut products, share a sample with RK.

02What are your roll sizes?Both unwinds take rolls up to 600 mm diameter on 3 inch air shafts.

03What shape and size is the band?The flexible die is made to your wristband shape and is priced separately.

04Do you need batch coding?A batch coding printer can be added to the line and is priced separately.

05How will you collect the bands?Finished bands come off the long conveyor into a collecting tray, ready for boxing.

06What output do you need?The 3 HP main motor with VFD lets the speed be matched to the job; share your monthly volume for the right configuration.

08 — Why RK

Why Choose RK Label Machines?

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, with its head office in GIDC Vatva and three manufacturing units in the state. The Wrist Band Machine brings together RK's unwind, tension, web guide and rotary die cutting systems in one line built for a finished product.

Lamination, glueing and die cutting in one pass from one manufacturer.

Imported ultrasonic web guides and load cell tension control.

Flexible dies and batch coding printers supplied for the same line.

A trial on the customer's own material before almost every order.

Three manufacturing units in Gujarat and customers in 23+ countries.

09 — Price

Die Cutting and Lamination Machine Price in India

The price of a die cutting and lamination machine depends on the configuration: the unwind and tension arrangement, the glue station, the die cutting unit, the conveyors and any batch coding printer. The flexible die and the batch coding printer are priced separately. Prices are quoted ex-works Ahmedabad, with GST at 18 percent extra. Engineer travel and stay for installation and training at your site are borne by the customer. Share your wristband size, paper and monthly volume with RK for a quotation.

10 — FAQ

Frequently Asked Questions

A machine that laminates two webs together and die cuts the laminated web into a finished shape in one line. RK's Wrist Band Machine also applies hot melt glue between the two steps.

Finished paper wristbands from a paper roll and a release paper roll, in a single pass, delivered on a conveyor into a collecting tray.

Both the paper unwind and the release paper unwind take rolls up to 600 mm diameter on 3 inch (75 mm) air shafts.

Through a hot melt glue station with a slotter die sized to the release paper width, coating the release paper before lamination.

One rotary die cutting unit with a nip roller and an 80 teeth magnet cylinder. The flexible die is made to your shape and priced separately.

Paper tension by an auto electronic tension controller with load cell feedback, and release paper tension by a powder brake with amp meter, with ultrasonic web guides on both unwinds.

A batch coding printer can be added to the line and is priced separately.

3 HP three phase AC, variable speed with a VFD.

RK Label Printing Machinery Pvt. Ltd., Ahmedabad, Gujarat, India.

It depends on the configuration, the flexible die and any batch coding printer. RK quotes ex-works Ahmedabad with GST at 18 percent extra, and engineer travel and stay for installation are borne by the customer.
