RK Wrist Band Machine – Inline Lamination, Hot Melt Glueing and Rotary Die Cutting for Wristbands

A wristband making machine is a converting line that turns two paper rolls into finished, self-adhesive paper wristbands. The band's face paper carries the print, and the release paper carries a strip of hot melt adhesive under the closure tab, so the band can be wrapped and sealed around a wrist and cannot be removed without tearing.

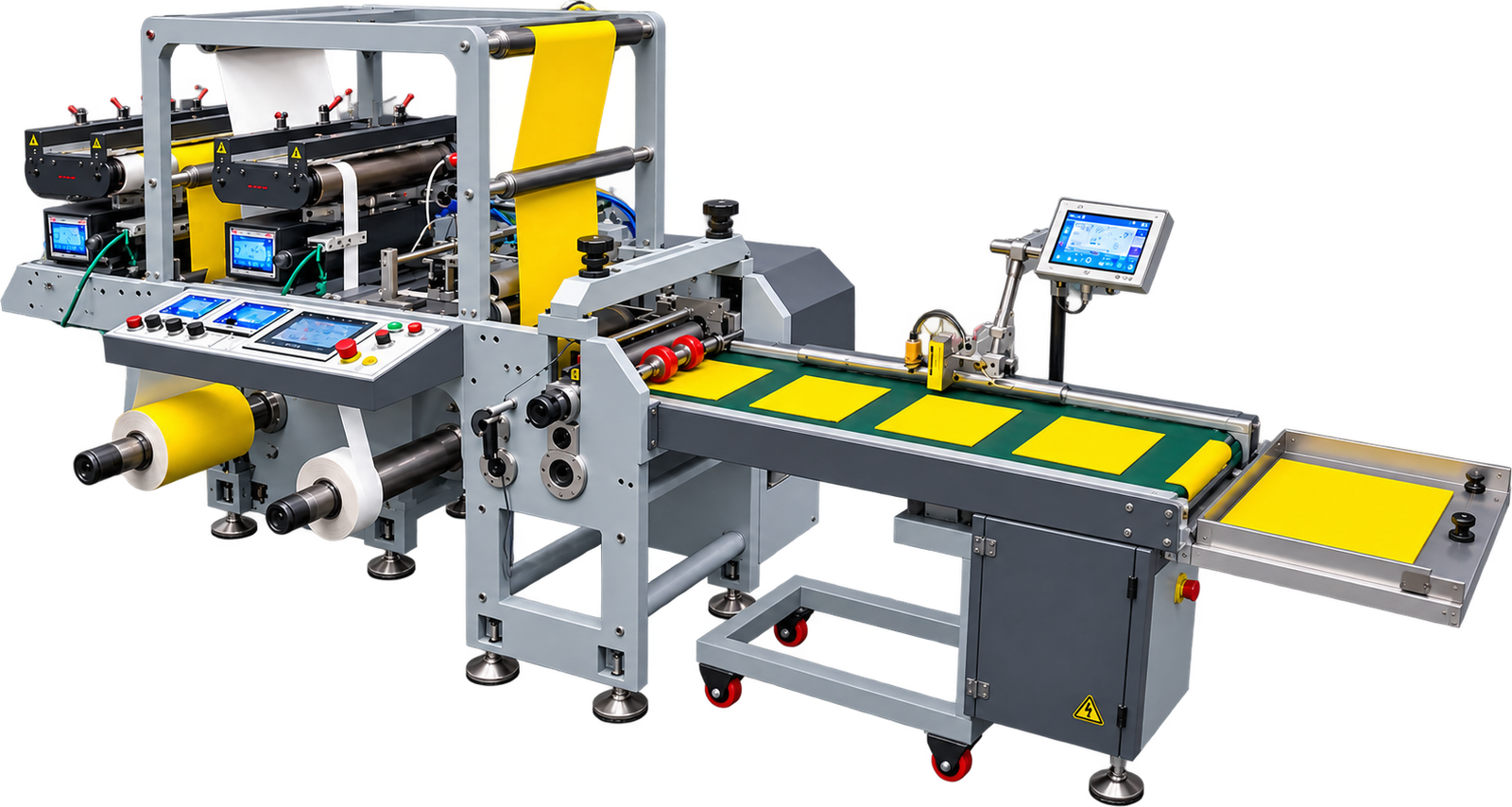

The RK machine is built as a die cutting and lamination line. Two unwind stations with electronic ultrasonic web guides feed the paper and the release paper. A hot melt glue station with a slotter die sized to the release paper width lays the adhesive. The lamination section sandwiches the paper with the hot melt coated release paper. A rotary die cutting unit with a nip roller and an 80 teeth magnet cylinder cuts the wristband shape, using a flexible die made to your design. A short conveyor and a long vacuum conveyor deliver the bands to a collecting tray.

Lamination, Glueing and Die Cutting in One Pass

The three operations that normally need three machines happen inline. Fewer handling steps mean fewer registration errors, less waste and one operator for the whole job.

Two Unwind Stations to Ø 600 mm

The paper roll and the release paper roll each unwind on their own station, both taking rolls to Ø 600 mm on a 3 inch (75 mm) air shaft.

Ultrasonic Web Guides on Both Unwinds

Imported electronic ultrasonic guides keep both webs aligned before they meet, so the adhesive strip and the printed face line up band after band.

Load Cell Paper Tension and Powder Brake Release Tension

Paper tension is held by an automatic electronic tension controller with load cell feedback. Release paper tension is held by a powder brake with an amp meter. Both webs stay flat and stable through glueing, lamination and cutting.

Hot Melt Glue Station With Slotter Die

Hot melt adhesive is applied through a slotter die sized to the release paper width, laying a clean strip exactly where the closure needs it.

Rotary Die Cutting on an 80 Teeth Magnet Cylinder

One rotary die cutting unit with a nip roller and an 80 teeth magnet cylinder cuts the band. The flexible die is made to your wristband design, so band length, punch holes, tear line and tab shape are yours rather than a fixed pattern.

Vacuum Conveyor With Batch Coding Mounting Point

After the die, a short conveyor leads to a long conveyor with vacuum hold-down, which keeps light bands flat at speed and provides a mounting point for a batch coding unit if bands need numbering.

3 HP Three Phase Drive With VFD

A 3 HP three phase AC main motor with variable speed through a VFD drives the line.

The operator loads the printed or plain paper roll on the first unwind and the release paper roll on the second, both on 3 inch air shafts. The ultrasonic guides line up the two webs and the tension systems, load cell on the paper and powder brake on the release paper, hold them steady. The release paper passes the hot melt glue station, where the slotter die lays a strip of adhesive across the width that will become the closure.

The glued release paper and the face paper then meet at the lamination section and are pressed together into one web. This laminated web enters the rotary die cutting unit, where the flexible die on the 80 teeth magnet cylinder, backed by the nip roller, cuts the band outline, punch holes and tear line. The finished bands travel along the short conveyor onto the long vacuum conveyor, which holds them flat, passes them under the optional batch coder, and delivers them to the collecting tray at the end. The 3 HP VFD drive sets the line speed.

• Event and concert wristbands – single-use paper bands for entry control.
• Hospital patient bands – identification bands with space for patient details and barcode.
• Amusement and water parks – day-pass bands in bulk.
• Hotels and resorts – guest bands for all-inclusive access.
• Schools, camps and fairs – low-cost identification bands.
• Label converters – adding wristbands as a product line using existing die cutting know-how.

The RK Wrist Band Machine is specified for a paper roll and a release paper roll, each up to Ø 600 mm on a 3 inch core, laminated with hot melt adhesive. Coated and synthetic wristband papers that laminate with hot melt can be discussed with RK, since the slotter die, glue and tension are set to the material. Send RK your face paper, release paper and band design so the die and glue station are made to match.

• High-Speed Rotary Die Cutting Machine with Auto Turret RewinderRK-PTR-320 rotary die cutting and slitting.
• Die Cutting With Sheet Cuttingroll to sheet rotary die cutting.
• Batch Coding MachineRK's coding units for numbering and dating.
• Flexible Diethe design-specific die used on the wrist band machine.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, runs three manufacturing units and supplies customers in 23+ countries. Rotary die cutting, web guiding and tension control are what RK builds every day, and the wrist band machine brings those systems together for one product. The die is made to the customer's band design and the line is configured to their paper and rolls, rather than sold as a fixed model.

• Band design: fix the band length, tab shape, punch holes and tear line first. The flexible die is made to it and priced separately.
• Paper and release paper: confirm both materials and roll sizes (Ø 600 mm max, 3 inch core).
• Numbering: if bands need serial numbers or barcodes, plan for a batch coding printer on the vacuum conveyor. It is priced separately.
• Volume: one pass produces finished bands; work out bands per shift from your band length and line speed.
• Space and power: allow for the two unwinds, the lamination and die sections and the long conveyor, and a three phase supply for the 3 HP VFD drive.

The price of the RK Wrist Band Machine depends on the unwind, glue and conveyor configuration and any options you require. The flexible die and the batch coding printer are priced separately. Prices are quoted ex-works Ahmedabad with GST at 18% applicable. Transport and stay for the RK engineer who installs the machine and trains your operators at your site are borne by the customer. Share your band design, paper and production target with RK and the team will recommend a configuration and quote against it.
