Foil Stamping & Embossing Machine

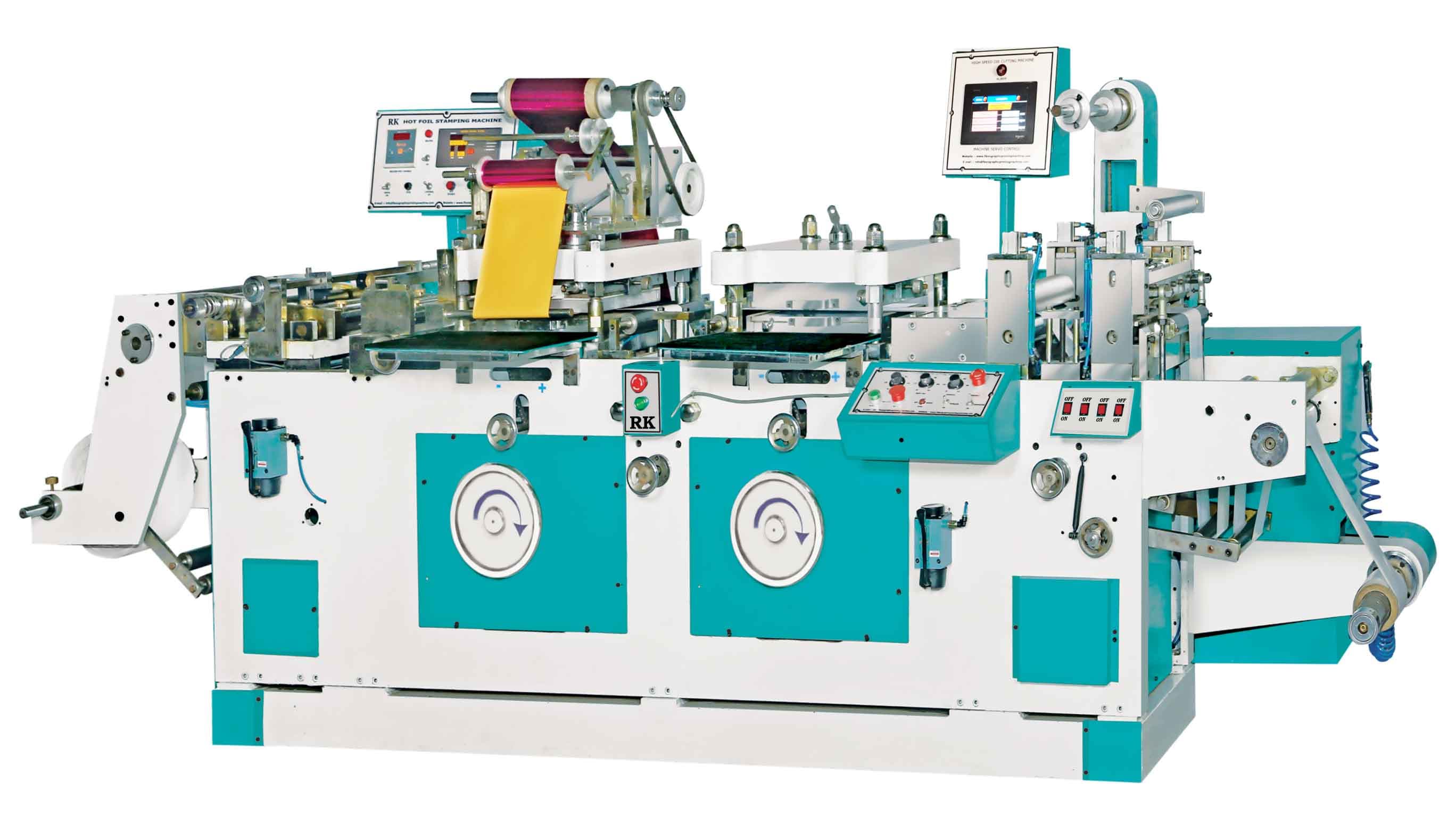

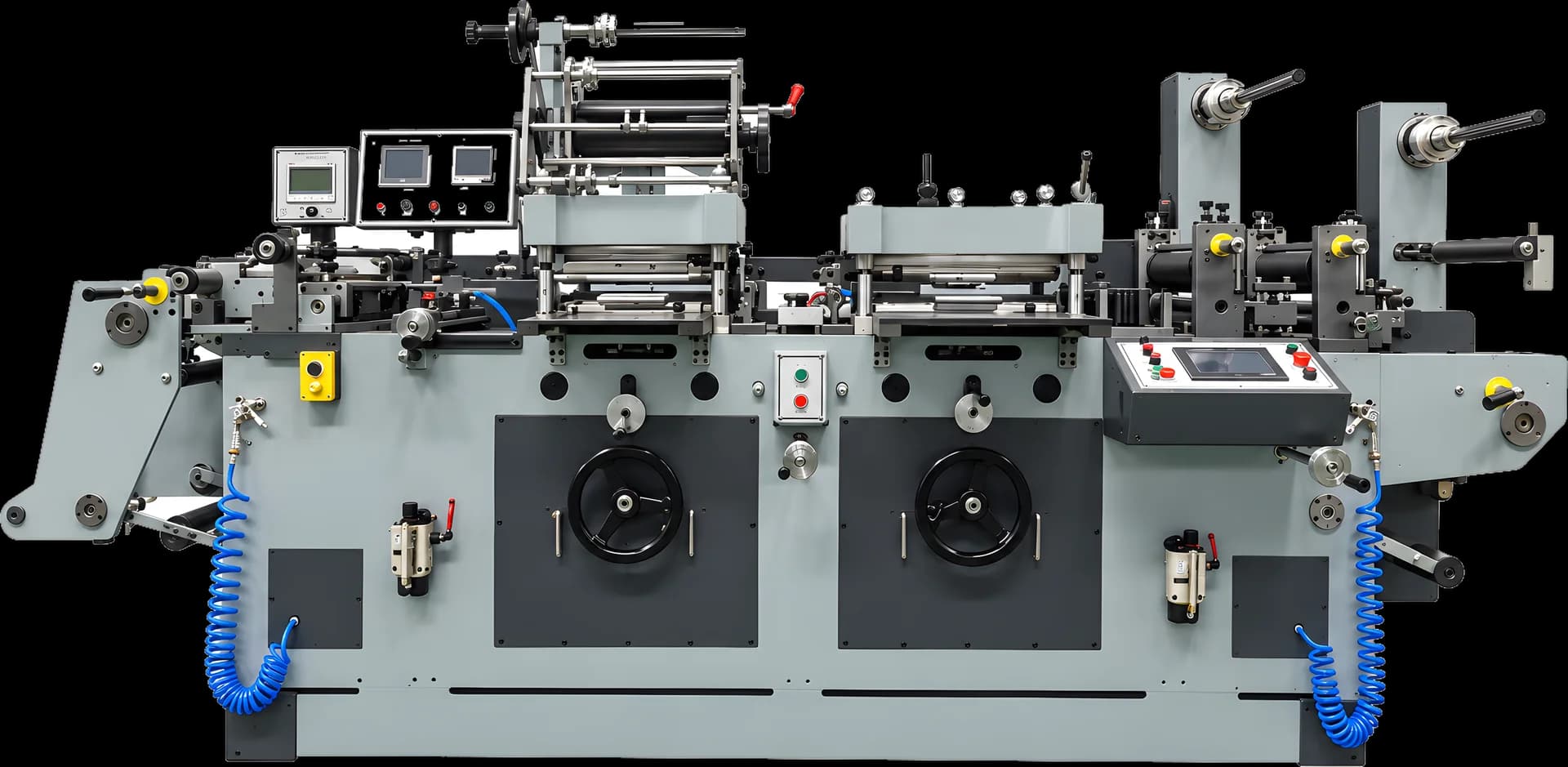

The RK-HSD 3030 is a high speed stamping and label die cutting machine with two heads. It takes a maximum paper width of 320 mm, an auto unwinding unit with a 3 inch air shaft and a 600 mm reel, and an imported ultrasonic electronic web guide. The stamping unit area is 300 mm by 300 mm with a cross foil saving facility on across winding by a Schneider servo. The die cutting unit is 300 mm wide with a 400 mm repeat length, with paper pulling by a Schneider servo motor. A re-pass scanner system handles printed label die cutting, a full touch 7 inch Schneider HMI runs the machine, and an online waste matrix rewinder, online sheet cutting unit and auto rewinding unit complete the line. Speed is 5000 to 7000 strokes per hour. This machine suits label converters who foil and die cut printed rolls in volume.

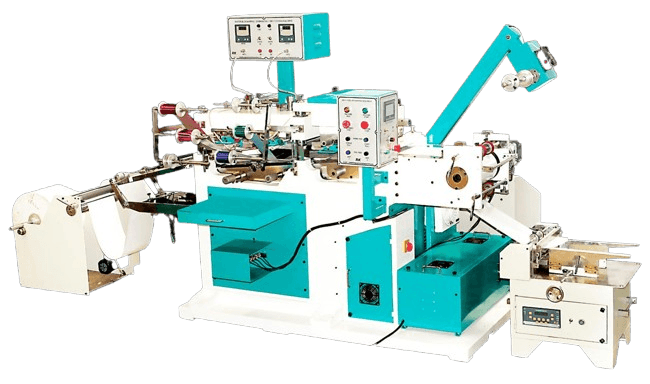

The RK 2530-E Heavy Duty is a stamping plus stamping/embossing plus die cutting machine for a maximum paper width of 300 mm. It has two stamping units of 300 mm by 250 mm, a four colour stamping area of 300 mm by 125 mm, and a two colour stamping and embossing option. Cross foil feeding and paper feeding are both driven by electronic stepper motor systems, and the die cut area is 300 mm by 300 mm. It includes an auto unloading unit, auto rewinding unit, motorised waste rewinding and an auto sheet cutting unit. The 5 HP three phase AC variable speed main motor gives up to 5000 strokes per hour, the machine weighs about 3000 kg, and it measures 4.5 ft high, 6 ft wide and 14.5 ft long. It suits printers who want foil and embossed finishes on the same label.

The Roll to Roll Strip Stamping Machine is a 12 inch roll to roll stamping machine that uses a heater roll for stamping instead of a flat die. It has electronic web control, a meter counter, a temperature controller unit, a two roll disc unwinding attachment and an up and down rewinding system, driven by a 1 HP AC variable speed motor on three phase power. At 3.6 ft high, 4.8 ft wide and 5.6 ft long it is the compact machine of the range, for continuous foil strips and bands on narrow rolls.
