Offline Roll to Sheet Cutting Machine

Roll to Sheet Cutting Machine Manufacturer in India

Many printed jobs are produced in rolls but delivered as sheets. A label roll may need to become sheets of labels for hand application. A printed paper reel may need to become cut sheets at an exact length. A foam roll may need to be laminated and cut into pads. In every case the cut has to land in the same place on every sheet, and the sheets have to stack neatly.

RK Label Printing Machinery Pvt. Ltd. manufactures offline roll to sheet cutting machines in Ahmedabad, Gujarat. The machines take a roll on the unwind, feed it a set length with a servo motor, read the print mark with a scanner so the cut stays in register, and cut the sheet with a hardened top and bottom blade or a pneumatic cutter. RK has built label printing and converting machinery since 1995.

The three machines on this page are the Offline Roll to Sheet Cutting Machine 1300mm, the Offline Roll to Sheet Cutting Machine 320mm and the Foam Roll to Sheet Cutting Machine.

Model No: RTS-CUT-400
Max Web Width: 400 mm
Speed: Up to 60 m/min
Type: Offline Roll-To-Sheet Cutting

Offline Roll to Sheet Cutting Machine 1300mm

Max Roll Width: 320 mm
Min Label Cut: 30 mm
Paper Capacity: Up to 200 GSM
Speed: Above 150 Strokes/Min (Depending on Length)

Offline Roll to Sheet Cutting Machine 320mm

Max Paper Width: 1200 mm
Rewinding Unit: Roll ø1000 mm Max
Control System: Touch Screen HMI With PLC
Cutting Length: 6" – 40"

Form Roll to Sheet Cutting Machine

01 — What Is It

What Is a Roll to Sheet Cutting Machine?

A roll to sheet cutting machine, also called a reel to sheet cutting machine or a sheeter, converts material from a roll into flat sheets of a set length. It is called offline because it works as a separate machine after printing, so one sheeter can serve several presses.

The roll is mounted on the unwind unit, where a web guide keeps it running straight and a tension controller keeps it steady. A servo motor feeds the web forward by the set length. If the material is printed, a print mark scanner reads the mark and corrects the feed so the cut falls at the same point on every sheet. The cutting unit then cuts the sheet, and the sheets are collected on a table or conveyor.

For a buyer the main questions are the roll width, the minimum and maximum sheet length, the material and the number of sheets per shift. RK's range covers 320 mm and 1300 mm paper widths, and a 1200 mm foam machine that laminates before cutting.

02 — Range

The RK Roll to Sheet Cutting Machine Range

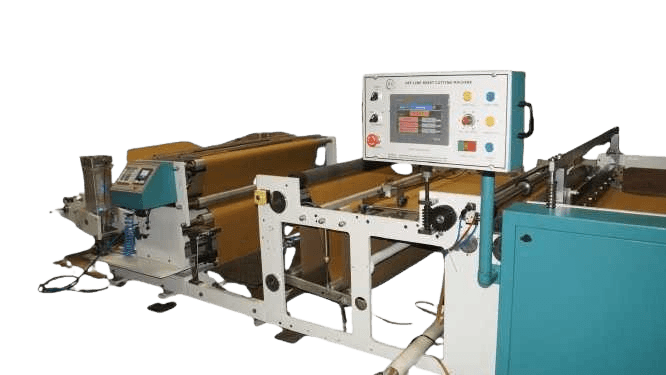

Offline Roll to Sheet Cutting Machine 1300mm

The 1300 mm machine is the wide format sheeter for large printed reels. It takes a maximum roll width of 1300 mm on an auto unloading unit of up to 1350 mm diameter with a 3 inch air shaft. The unwind has an imported ultrasonic edge scanner web guide and a tension controller with powder brake and amp meter. A 4 kW servo motor feeds the web, with cutting control by length feed and a print mark scanner. An online side trimming unit with 10 rotary blades is provided. The cutting unit uses a mechanical eccentric movement with hardened top and bottom blades, the minimum cut is 100 mm, and the collection table steps down automatically by the number of cuts. The machine measures 4.6 ft high, 7.6 ft wide and 16 ft long.

It suits printers and converters cutting wide paper, board or printed reels into sheets.

View Page

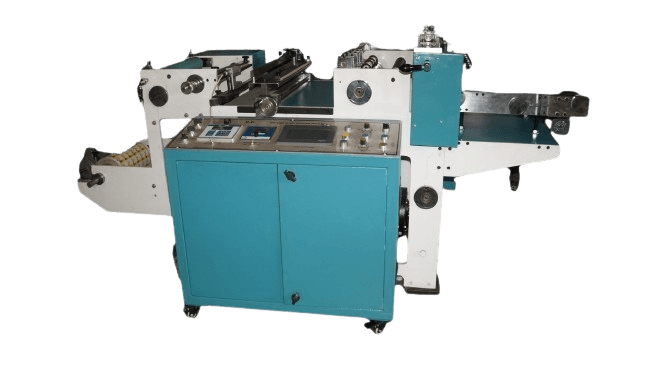

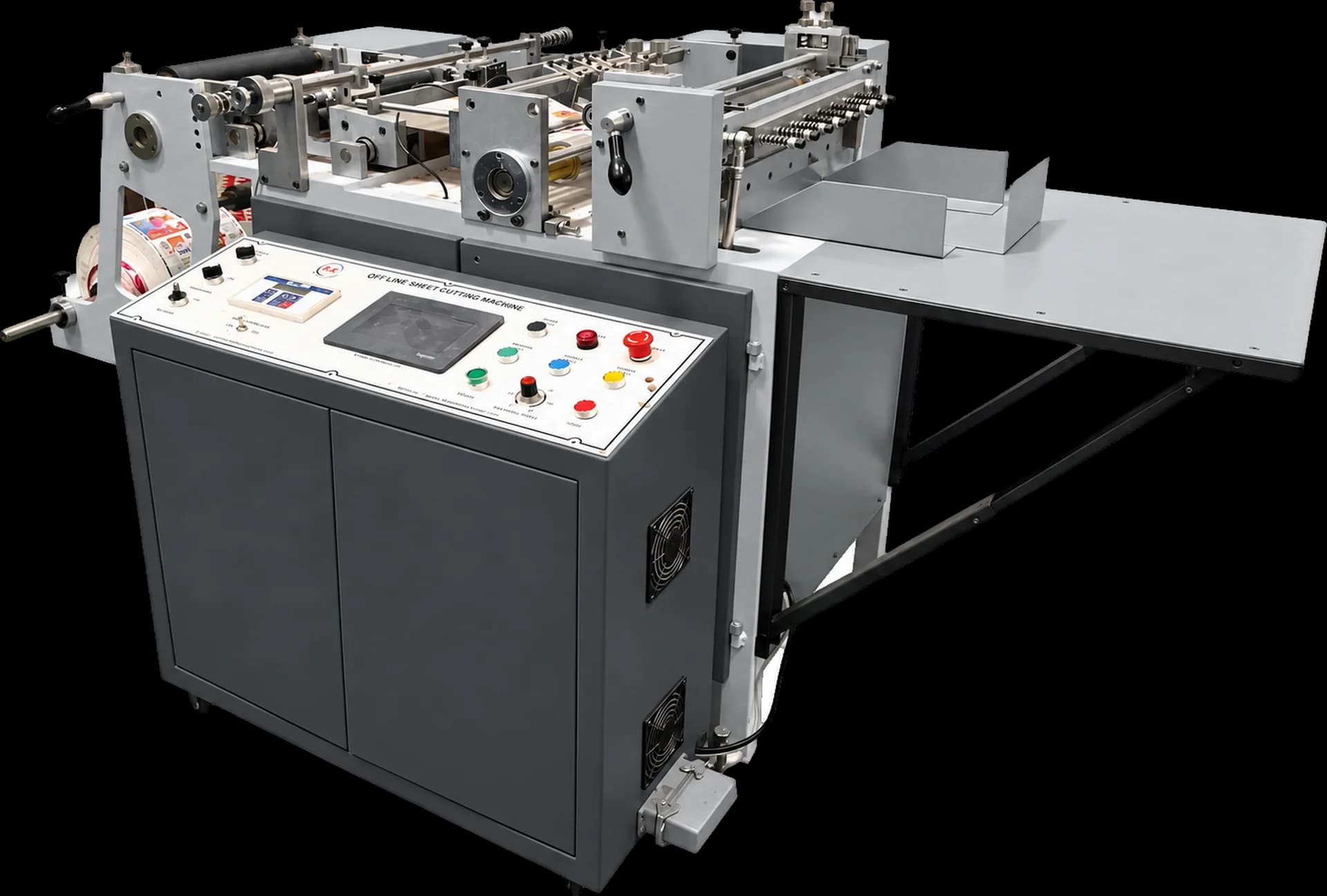

Offline Roll to Sheet Cutting Machine 320mm

The 320 mm machine is the narrow web sheeter for label and paper rolls. It takes a maximum roll width of 320 mm on an auto unloading unit up to 600 mm diameter with a 3 inch air shaft, an imported ultrasonic edge scanner web guide and a powder brake tension control. A servo motor feeds the web, with cutting control by length feed and a print mark scanner, and a digital electronic controller counts cut sets, sheet sets and total strokes. The minimum cut is 30 mm and the machine runs above 150 strokes per minute, depending on the cut length. It cuts self adhesive paper and other paper up to 200 GSM, has an online slitting attachment with blower, and delivers sheets on a conveyor. It measures 5 ft high, 3.5 ft wide and 9 ft long.

It suits label printers who deliver labels as sheets and converters cutting narrow paper rolls.

View Page

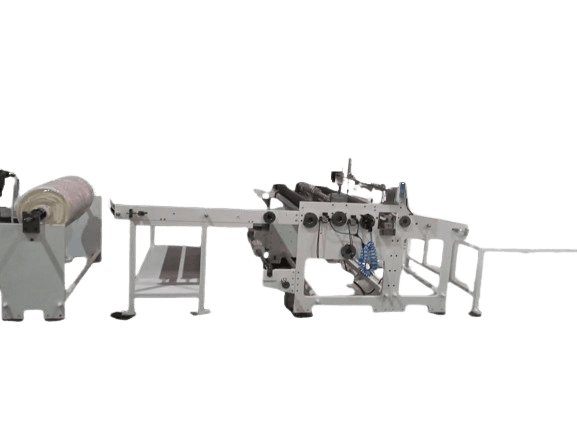

Foam Roll to Sheet Cutting Machine

The Foam Roll to Sheet Cutting Machine is built for foam. It has two unwinds: a foam unwind up to 1000 mm diameter and a base release unwind up to 250 mm diameter, both on 3 inch manual shafts with mechanical brake tension. A sandwich type roller system pastes the foam and the base release together, a rotary blade attachment with bottom support slits the web with 4 blades, and a servo based nip roll control from Schneider feeds the web. Cutting length is set by servo feed from 6 inches to 40 inches, the sheet is cut by a rodless pneumatic cylinder, and a touch screen HMI with PLC runs the machine. Maximum paper width is 1200 mm, the rewinding unit takes rolls up to 1000 mm diameter, and the machine measures 5 ft high, 8 ft wide and 16 ft long.

It suits foam converters who laminate foam to a release liner and cut it into sheets.

View Page

03 — Key Features

Key Features of RK Roll to Sheet Cutting Machines

Print mark scanner for cut register

The 320 mm and 1300 mm machines cut on the print mark, so every sheet is cut at the same point of the print.

Servo feed for length accuracy

A servo motor feeds the web the set length on all three machines. On the 1300 mm machine the servo is 4 kW. Cutting accuracy depends on the print mark scanner and the servo feed.

Imported ultrasonic web guide

The 320 mm and 1300 mm machines keep the web straight with an imported ultrasonic edge scanner web guide on the unwind.

Hardened blades with mechanical eccentric cutting

The paper machines cut with hardened top and bottom blades driven by a mechanical eccentric movement. The foam machine cuts with a rodless pneumatic cylinder.

Counters and auto stop

The 320 mm and foam machines have a digital electronic controller for cut set, sheet set and total stroke counting.

Online slitting and trimming

The 320 mm machine has an online slitting attachment with blower, the 1300 mm machine an online side trimming unit with 10 rotary blades, and the foam machine a 4 blade rotary slitting attachment.

Sheet collection

The 1300 mm machine has a collection table that steps down by the number of cuts, and the 320 mm machine delivers sheets on a conveyor.

04 — How It Works

How Does a Roll to Sheet Cutting Machine Work?

The roll is loaded on the unwind unit. On the paper machines an auto unloading unit holds the roll, the ultrasonic web guide keeps the edge in line, and the powder brake keeps the tension steady. On the foam machine the foam roll and the base release roll are loaded on two unwinds with mechanical brakes, and the sandwich roller system pastes them together as they pass.

The servo motor then pulls the web forward by the set length. Where the material is printed, the print mark scanner reads each mark and corrects the pull so the cut stays in register. If slitting or side trimming is needed, the rotary blades cut the web to width before the sheet cut.

The cutting unit cuts the sheet. On the 320 mm and 1300 mm machines this is a hardened top and bottom blade driven by a mechanical eccentric movement; on the foam machine it is a rodless pneumatic cylinder. The finished sheets land on the collection table, which steps down as the stack grows on the 1300 mm machine, or on the conveyor of the 320 mm machine. The counter records cut sets, sheet sets and total strokes.

05 — Applications

Applications

Label sheets - cutting self adhesive label rolls into sheets for hand application.

Printed paper sheets - cutting printed reels to length on the print mark.

Wide format sheeting - converting 1300 mm reels into sheets for printers and packaging converters.

Foam pads and sheets - laminating foam to a release liner and cutting it into sheets from 6 inches to 40 inches.

Slit and sheeted work - slitting or trimming the web to width before sheeting on the same machine.

Offline finishing - one sheeter serving several presses or slitters in the plant.

06 — Materials

What Materials Can It Run?

The 320 mm machine cuts self adhesive paper and other paper up to 200 GSM. The 1300 mm machine handles paper reels up to 1300 mm wide. The Foam Roll to Sheet Cutting Machine runs foam with a base release liner, up to 1200 mm wide. For any other material, thickness or GSM, confirm with RK before the machine is specified. RK runs a trial on the customer's own material before almost every order.

07 — Selection Guide

How to Choose the Right Roll to Sheet Cutting Machine

01What is your roll width?Up to 320 mm points to the 320 mm machine, wide reels to the 1300 mm machine, and foam up to 1200 mm to the foam machine.

02What sheet lengths do you cut?The minimum cut is 30 mm on the 320 mm machine, 100 mm on the 1300 mm machine, and 6 inches to 40 inches on the foam machine.

03Is the material printed?If the cut must land on the print, the paper machines use a print mark scanner.

04What is the material and GSM?The 320 mm machine is rated for self adhesive and other paper up to 200 GSM; foam needs the foam machine with lamination.

05Do you need slitting as well?All three machines can slit or trim online, with 10 rotary blades on the 1300 mm machine and 4 on the foam machine.

06How many sheets per shift?The 320 mm machine runs above 150 strokes per minute depending on the length; share your target output for the right choice.

07How much floor space do you have?The 320 mm machine is 9 ft long, the 1300 mm and foam machines are 16 ft long.

08 — Why RK

Why Choose RK Label Machines?

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, with its head office in GIDC Vatva and three manufacturing units in the state. Its roll to sheet cutting machines use the same unwind, web guide, tension and servo feed systems as its label presses and slitters.

Three manufacturing units in Gujarat and customers in 23+ countries.

Narrow, wide and foam sheeters from one manufacturer.

Imported ultrasonic web guides and servo feed for accurate sheets.

A trial on the customer's own material before almost every order.

Label printing, slitting, die cutting and inspection machines from the same source.

09 — Price

Roll to Sheet Cutting Machine Price in India

The price of a roll to sheet cutting machine depends on the model and width, the unwind and tension arrangement, the servo feed, the slitting or trimming unit and the collection system. Prices are quoted ex-works Ahmedabad, with GST at 18 percent extra. Engineer travel and stay for installation and training at your site are borne by the customer. Share your material, roll width, sheet sizes and monthly volume with RK for a quotation.

10 — FAQ

Frequently Asked Questions

A machine that converts material from a roll into flat sheets of a set length. It feeds the web with a servo motor, reads the print mark where needed and cuts each sheet with a blade or a pneumatic cutter.

320 mm and 1300 mm for paper, and 1200 mm for foam on the Foam Roll to Sheet Cutting Machine.

30 mm on the 320 mm machine, 100 mm on the 1300 mm machine, and 6 inches on the foam machine, which cuts up to 40 inches.

Yes. The 320 mm and 1300 mm machines have cutting control with length feed and a print mark scanner.

Self adhesive paper and other paper up to 200 GSM.

Above 150 strokes per minute, depending on the cut length.

Yes. The 320 mm machine has an online slitting attachment with blower, the 1300 mm machine an online side trimming unit with 10 rotary blades, and the foam machine a 4 blade rotary slitting attachment.

The 320 mm machine is 5 ft by 3.5 ft by 9 ft, the 1300 mm machine 4.6 ft by 7.6 ft by 16 ft, and the foam machine 5 ft by 8 ft by 16 ft, plus operator clearance.

RK Label Printing Machinery Pvt. Ltd., Ahmedabad, Gujarat, India.

It depends on the model, width and configuration. RK quotes ex-works Ahmedabad with GST at 18 percent extra, and engineer travel and stay for installation are borne by the customer.

Get the Right Roll to Sheet Cutting Machine for Your Production

Tell RK the material you cut, the roll width, the sheet lengths, whether the material is printed and how many sheets you need per shift. The engineering team in Ahmedabad will recommend the 320 mm, 1300 mm or foam roll to sheet cutting machine, configure the slitting and collection to your job and send a customised quotation.
