A label plant is more than its printing press. Around the press sit the smaller machines that keep it running: something to rewind the printed roll, something to cut the stamping foil to size, something to coat gum on sticker paper, something to half cut and perforate sheets, something to peel labels for hand application, and something to lift a heavy roll onto the shaft. These are the printing auxiliary machines. None of them prints a label, but without them the press waits.
RK Label Printing Machinery Pvt. Ltd. manufactures printing auxiliary machines in Ahmedabad, Gujarat. The range on this page has seven machines: the Auto Rewinder unit, the Foil Cutting machine, the RK GM Gumming machine, the RK MHC Half Cutting machine, the Label Dispenser, the RK-PR Printer Rewinder and the RK MRL 400 Manual Roll Lifter.
This page explains what each machine does, which jobs it suits, and how to pick the ones your line needs.
01 — What Is It
A printing auxiliary machine is a support machine that works beside a printing or converting machine. It handles one task the main machine does not: rewinding output into a roll, preparing a consumable such as foil, coating adhesive on paper, scoring or perforating sheets, dispensing labels one at a time, or moving a heavy roll.
In a label line these machines fill the gaps between the press, the die cutter, the slitter and the packing table. A barcode printer produces a strip of labels that needs to be rewound. A hot foil stamping machine needs foil rolls cut to the stamping width. A sticker maker needs gum coated on plain paper. A packing bench needs labels peeled ready to apply.
02 — Range

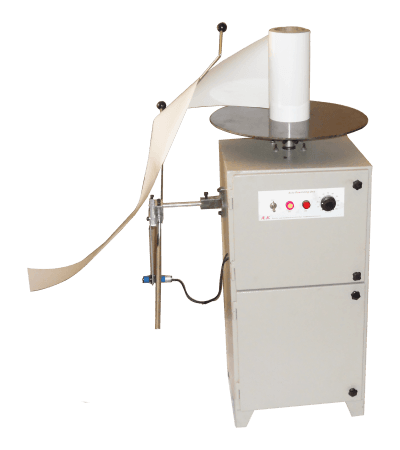

The Auto Rewinder unit rewinds output into a roll under sensor and variable speed motor control. It runs on 230 V AC single phase main power and is built to attach with all types of machine. It suits any printer or converter that produces a web needing to be wound up automatically.

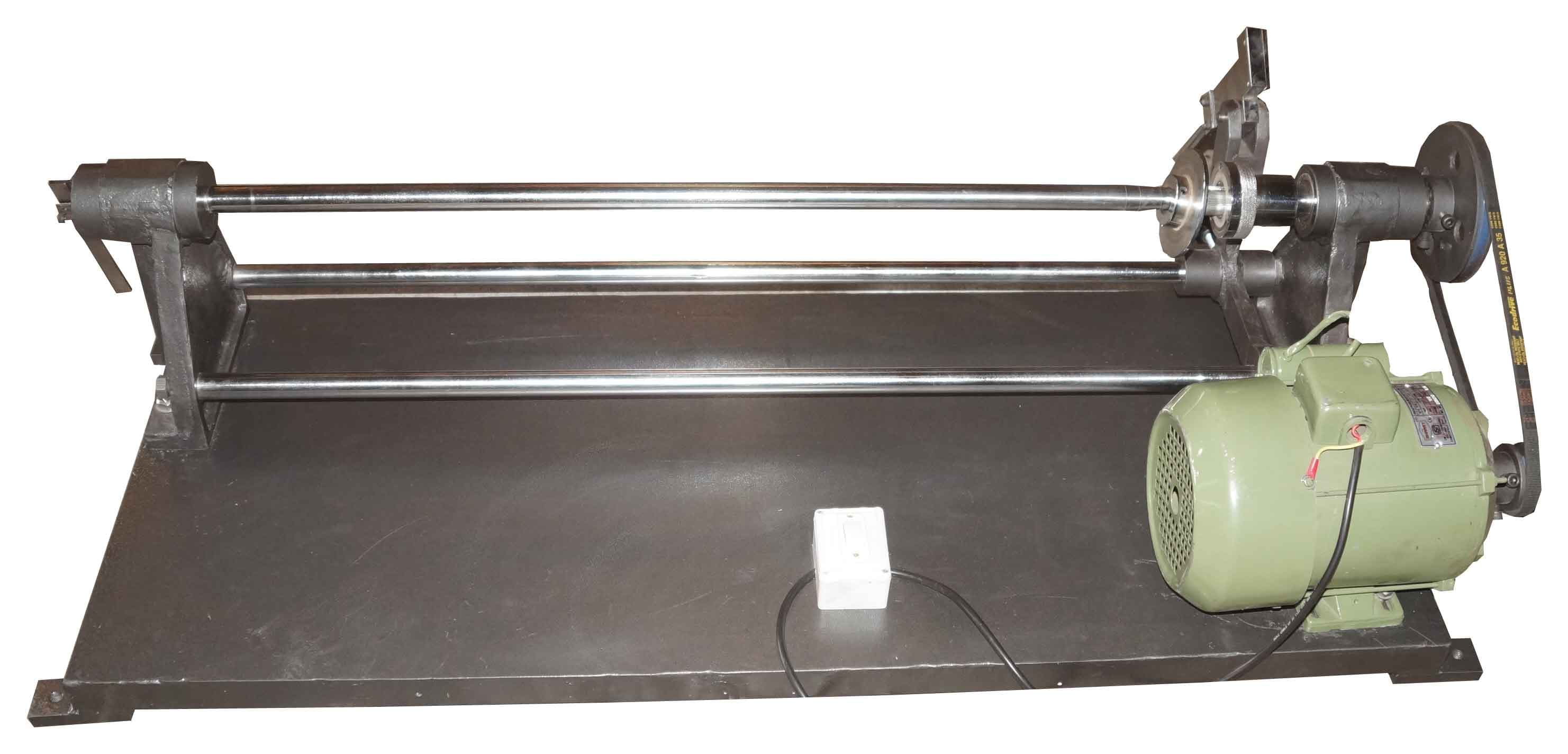

View PageThe Foil Cutting machine slices hot foil stamping foil rolls to the required size. A 1 HP single phase main motor turns the roll and the cutting is manual with a blade cutter. It suits plants running foil stamping machines that buy foil in wide rolls and cut it to the stamping width in-house.
View PageThe RK GM is a sticker paper gum coating machine. It is a 24 inch machine with a 20 inch coating area and a machine length of 32 ft. Two unwinding units take 600 mm reels, one for chromo paper and one for release paper with a web guide unit, and the rewinding unit takes a 600 mm reel. Gum is applied by a master roll type coating unit and dried by a circulating hot air blower system with eighteen 1000 watt heaters. Digital temperature and meter control run the machine, which can be operated from both sides. Output is 20 to 25 metres per minute, driven by 5 HP, 3 HP and 1 HP AC motors, with a 30 HP three phase supply required. The machine is 32 ft long, 7 ft wide and 9 ft high. It suits sticker paper manufacturers making their own self-adhesive stock.

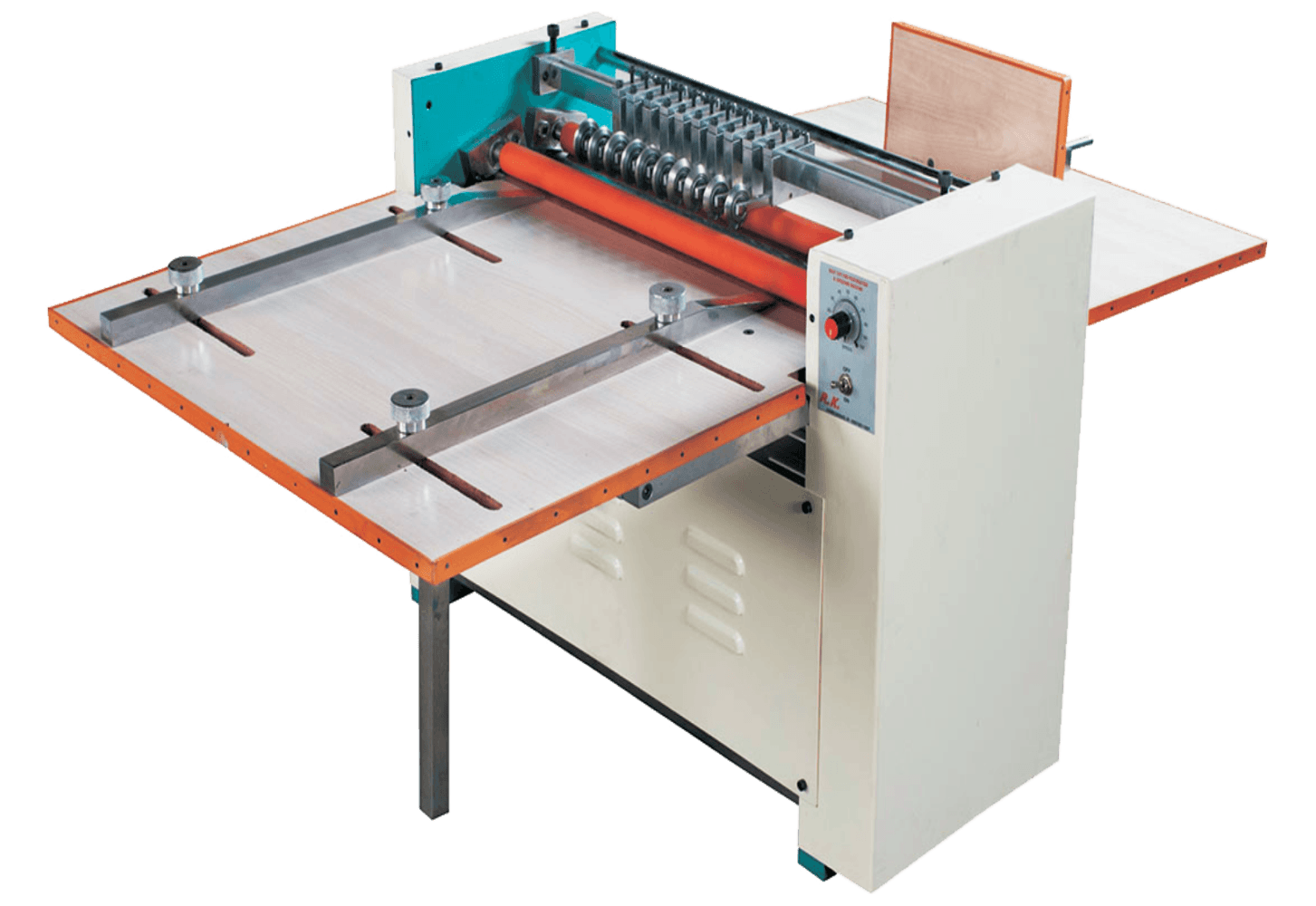

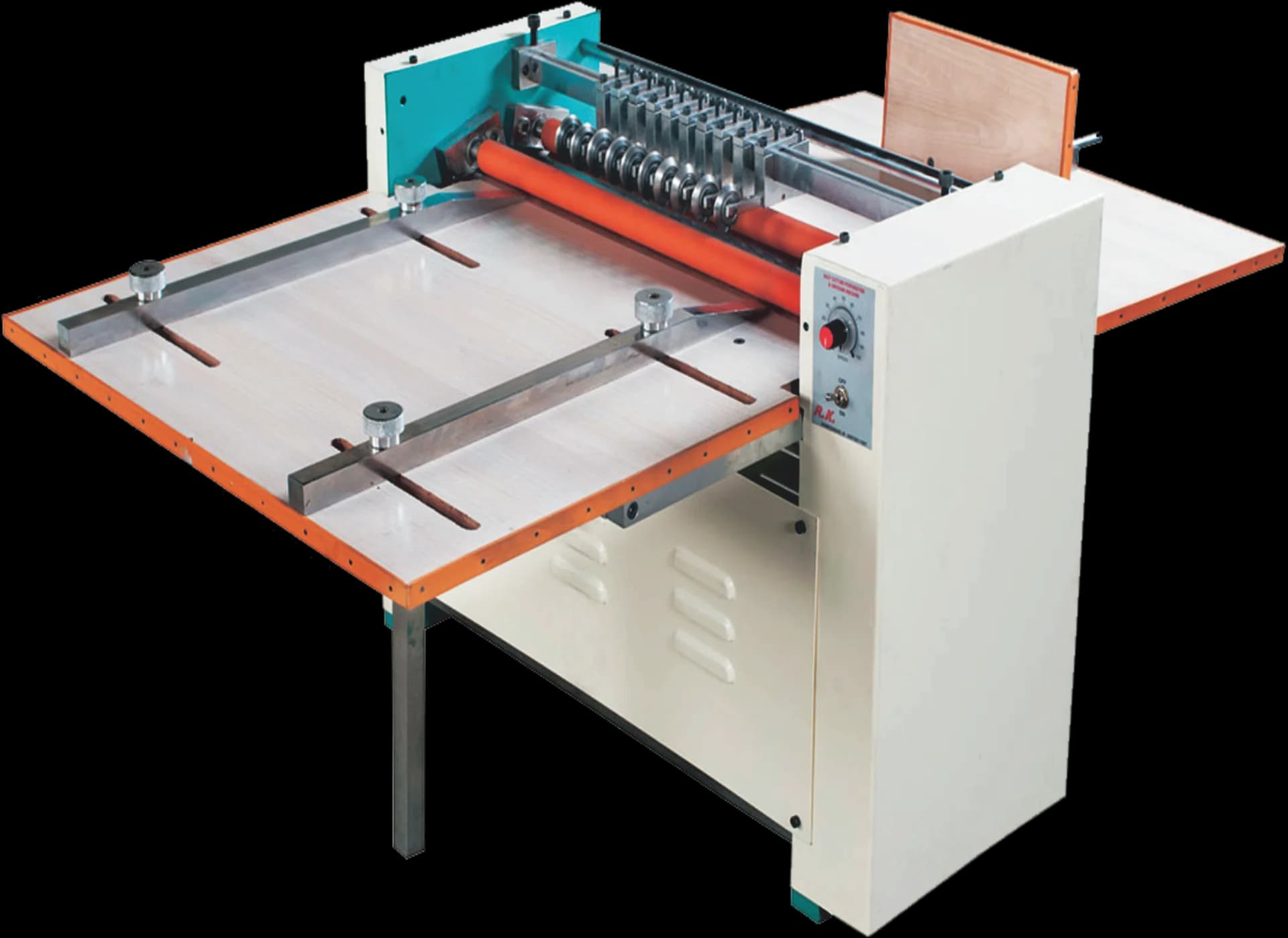

View PageThe RK MHC is a manual half cutting, perforating and creasing machine for a 24 inch paper feeding size. It handles release paper from 40 gsm to 150 gsm with a set of ten rotary blade guns, with a minimum gap between two blades of 16 mm. A 0.5 HP AC variable speed main motor drives it on single phase power, in a footprint of about 1.2 ft by 2.5 ft. It suits sticker sheet makers who half cut, perforate or crease sheets before packing.

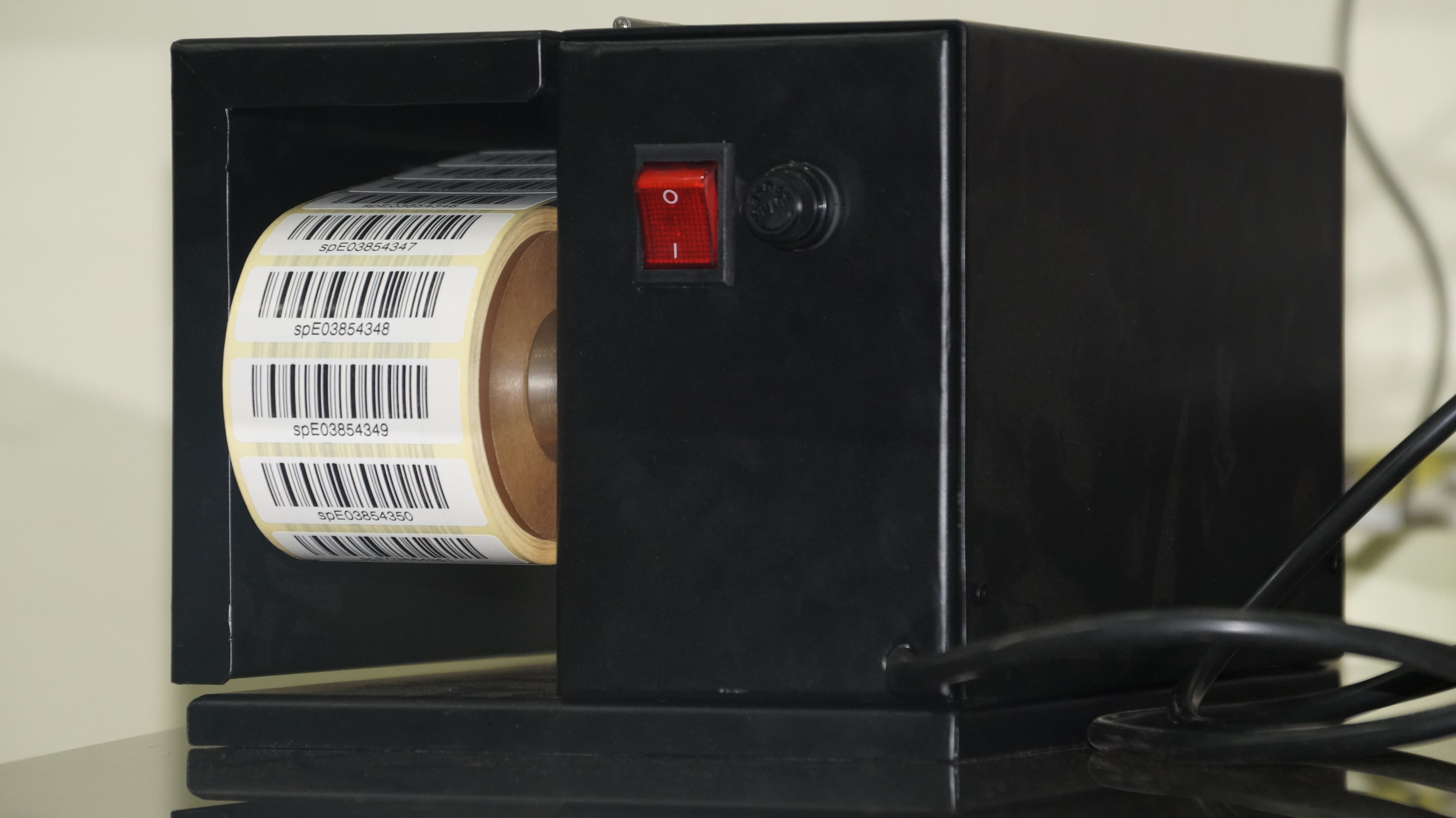

View PageThe RK Label Dispenser machine peels labels from a roll for hand application, for a maximum label width of 100 mm. It is low weight, has an auto cut off sensor, MCB control and a back side cover. It suits packing benches where labels are applied by hand.
View PageThe RK-PR Printer Rewinder is an auto rewinder unit for a barcode printer. It is controlled with a sensor and an AC gear motor and runs on 230 V AC single phase main power. It suits any desk with a barcode label printer whose output needs to be wound into a neat roll.

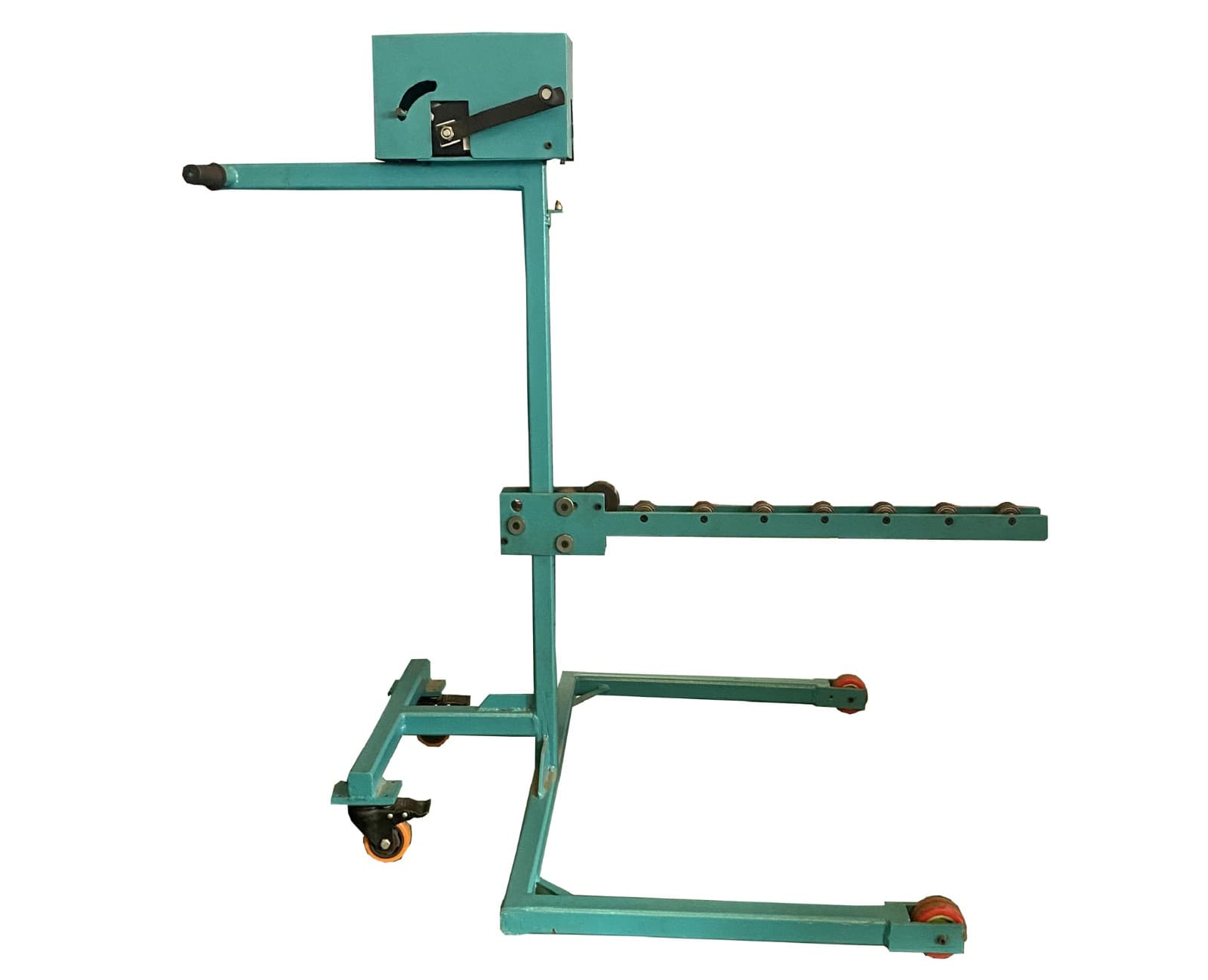

View PageThe RK MRL 400 Manual Roll Lifter lifts paper sticker rolls of up to 150 kg. It suits any plant where heavy label stock rolls have to be raised onto the unwind shaft of a press, slitter or gumming machine without straining the operator.
View Page03 — Key Features
The Auto Rewinder and the RK-PR Printer Rewinder both wind under sensor control, with a variable speed motor on the Auto Rewinder and an AC gear motor on the Printer Rewinder.
The Auto Rewinder is built to attach with all types of machine, and the Printer Rewinder is made for barcode printers.
The rewinders run on 230 V AC single phase, the Foil Cutting machine has a 1 HP single phase motor and the Half Cutting machine consumes 0.5 HP single phase.
The Foil Cutting machine slices hot foil stamping rolls to the required width with a manual blade cutter.
The RK GM Gumming machine dries the coated gum with a circulating hot air blower system fed by eighteen 1000 watt heaters, under digital temperature control.
The RK MHC carries a ten rotary blade gun set with a minimum 16 mm gap between blades, for half cutting, perforating and creasing release paper from 40 to 150 gsm.
The RK MRL 400 lifts sticker rolls up to 150 kg, and the Label Dispenser adds an auto cut off sensor and MCB control.
04 — How It Works
Each machine on this page does one job. The Auto Rewinder and Printer Rewinder sit at the output of a printer or converter. A sensor watches the web coming off the machine and the motor winds it onto the core at the matching speed, so the roll builds evenly without pulling on the printer.
The Gumming machine runs a full web path. Chromo paper unwinds from one 600 mm reel and release paper from another, guided by the web guide unit. The master roll coating unit applies gum, the coated web passes through the hot air dryer, the two webs are brought together and the finished sticker paper rewinds on a 600 mm reel at 20 to 25 metres per minute.
The Foil Cutting machine turns a wide foil roll on its 1 HP motor while the operator slices it with the blade cutter at the required width. The Half Cutting machine feeds a 24 inch sheet or web past ten rotary blade guns set at the required positions to half cut, perforate or crease it. The Label Dispenser advances the label roll, peels each label at the edge and stops on the sensor until the operator takes it. The Manual Roll Lifter raises a roll of up to 150 kg to shaft height by hand power.
05 — Applications
06 — Materials
The materials depend on the machine. The Gumming machine runs chromo paper and release paper on 600 mm reels. The Half Cutting machine handles release paper from 40 gsm to 150 gsm at a 24 inch feeding size. The Foil Cutting machine cuts hot foil stamping foil rolls. The Label Dispenser takes label rolls up to 100 mm wide, and the Roll Lifter handles paper sticker rolls up to 150 kg. For any other material, share a sample with RK. The company runs a trial on the customer's own material before almost every order.
07 — Selection Guide
08 — Why RK
RK Label Printing Machinery Pvt. Ltd. has manufactured printing and converting machinery since 1995 from its head office in GIDC Vatva, Ahmedabad, with three manufacturing units in Gujarat. Its auxiliary machines are built by the same team that makes its flexo presses, die cutters and slitters, so each unit is designed to work beside the RK machine it supports.
09 — Price
The price depends on the machine. A Label Dispenser or Printer Rewinder sits at one end of the range and the RK GM Gumming machine, with its 32 ft length and hot air dryer, at the other. Prices are quoted ex-works Ahmedabad with GST at 18 percent extra. Engineer travel and stay for installation and training at your site are borne by the customer. Tell RK which task you need to cover, your roll or sheet sizes and your daily volume, and the team will recommend a machine and send a quotation.
10 — FAQ
A support machine that works beside a printing or converting machine and does one task the main machine does not: rewinding, foil cutting, gum coating, half cutting, label dispensing or roll lifting.
RK Label Printing Machinery Pvt. Ltd. manufactures the range on this page in Ahmedabad, Gujarat, with customers in 23+ countries.
The Auto Rewinder attaches with all types of machine and winds under sensor and variable speed motor control. The RK-PR Printer Rewinder is made for barcode printers and uses a sensor and an AC gear motor. Both run on 230 V single phase.
The RK GM coats gum on chromo paper, dries it with a hot air blower system and laminates it with release paper to make sticker paper, at 20 to 25 metres per minute on a 20 inch coating area.
The RK MHC half cuts, perforates and creases 24 inch sheets of release paper from 40 to 150 gsm with a ten rotary blade gun set.
Up to 100 mm.
The RK MRL 400 Manual Roll Lifter lifts paper sticker rolls up to 150 kg.
The rewinders run on 230 V AC single phase, the Foil Cutting machine on 1 HP single phase and the Half Cutting machine on 0.5 HP single phase. The Gumming machine needs a 30 HP 440 V three phase supply.
Prices depend on the machine and are quoted ex-works Ahmedabad with GST at 18 percent extra. Ask RK for a quotation with the task you need to cover.
Tell RK Label Machines which job is slowing your line, rewinding, foil cutting, gumming, half cutting, label dispensing or roll handling, along with your roll or sheet sizes and daily output. The engineering team will recommend the right unit from this range and send a quotation for your printing auxiliary machine.
