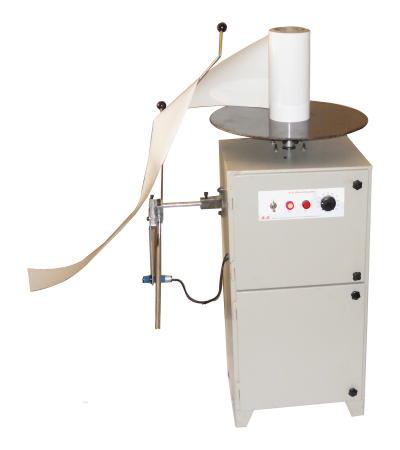

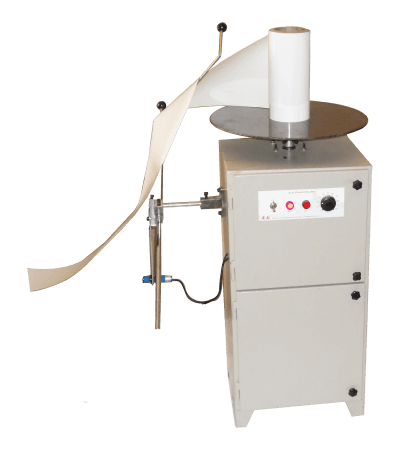

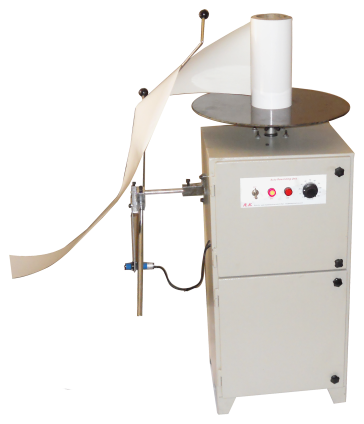

Auto Rewinder Unit – Sensor Controlled Label Rewinder for Any Machine

The RK Auto Rewinder is a standalone label rewinder machine. It has its own motor and its own control; it does not need any electrical connection to the machine it serves. A sensor watches the loop of web between the upstream machine and the rewinder. When the loop grows, the rewinder speeds up; when the loop tightens, it slows down. The result is a firmly wound roll with even tension, produced without an operator watching it.

Because it is self-contained and runs on ordinary single-phase power, the unit can stand next to a desktop label printer, a batch coding machine, an inspection table or any other machine that pays out a web. Move it to another machine and it works there just the same.

Sensor Controlled Winding

A sensor monitors the web between the upstream machine and the rewinder, and the rewinder adjusts itself to match. The operator does not set a speed for each job; the unit follows the machine it is attached to.

Variable Speed Control Motor

The motor speed varies continuously under sensor control, so the rewinder keeps pace with slow and fast machines alike and winds without jerking the web.

230 V AC Single-Phase Power

The unit plugs into a standard 230 V single-phase supply. No three-phase point or special wiring is needed, which makes it easy to place anywhere in the plant or office.

Attaches to All Types of Machine

The rewinder is designed to work with any machine that produces a web: label printers, batch coders, inspection machines, dispensers and small converting equipment.

Independent Operation

With its own motor and control, the rewinder does not rely on the upstream machine's electronics. There is nothing to interface or configure between the two.

Even, Firm Rolls Without Operator Attention

Constant sensor control produces rolls with consistent tension from core to outside, ready to go on a labelling machine or to a customer.

The rewinder is placed at the delivery side of the upstream machine and a core is fitted on its shaft. The web coming out of the machine is passed through the sensing area and fixed to the core. The operator switches the rewinder on and starts the upstream machine.

As the machine pays out web, a loop forms in front of the rewinder. The sensor detects the loop and the variable speed motor winds until the loop shortens, then eases off. This cycle repeats continuously, so the winding speed always equals the output speed of the machine, whether it is running steadily, stopping and starting, or changing pace. When the roll is complete, the operator cuts the web, removes the roll and fits a new core.

• Label printers – rewinding printed labels from thermal transfer and other roll label printers into finished rolls.
• Batch coding machines – taking up coded label rolls at the coder's output.
• Inspection and rewinding tables – winding inspected labels at the operator's pace.
• Label dispensers and applicators – collecting waste liner or unused labels.
• Small converting machines – any narrow web machine that needs a self-regulating take-up.

The RK Auto Rewinder winds the label and narrow web materials that pass through the machines it attaches to: self-adhesive paper and film labels, tags and similar roll materials. Web width, roll diameter and core size should match the machine and the rolls you produce, so tell RK which machine you will pair it with and what roll sizes you wind.

• Printer RewinderRK's rewinder designed for roll label printers.
• Label Dispenserpeels and presents labels for hand application.
• Half Cuttingmanual half cutting, perforating and creasing for label rolls.
• Manual Roll Lifterlifts heavy rolls on to unwind and rewind shafts.
• GummingRK's gumming machine for applying adhesive to web materials.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, operates three manufacturing units and supplies customers in 23+ countries. The auto rewinder is one of a range of auxiliary machines that RK builds around its presses, slitters and inspection machines, so it is sized for the rolls those machines actually produce. The same manufacturer that supplies your label press supplies and services the rewinder.

• Machine to pair with: the RK unit attaches to any type of machine; tell RK which one so the placement and web path are checked.
• Web width: confirm the widest label roll you will wind.
• Roll diameter and core size: match the finished roll size and core your customers or labelling machines use.
• Power at the location: the unit needs only 230 V single-phase.
• Direction of winding: state whether labels must wind face in or face out.
• Portability: if the rewinder will move between machines, the independent sensor control makes that simple.

The price of the RK Auto Rewinder Unit depends on the configuration supplied for your web width and roll sizes. RK quotes ex-works Ahmedabad with GST at 18% applicable. Engineer travel and stay for installation and training at your site are borne by the customer. Tell RK which machine the rewinder will serve and the roll sizes you produce, and the team will confirm the right unit and quote for it.
