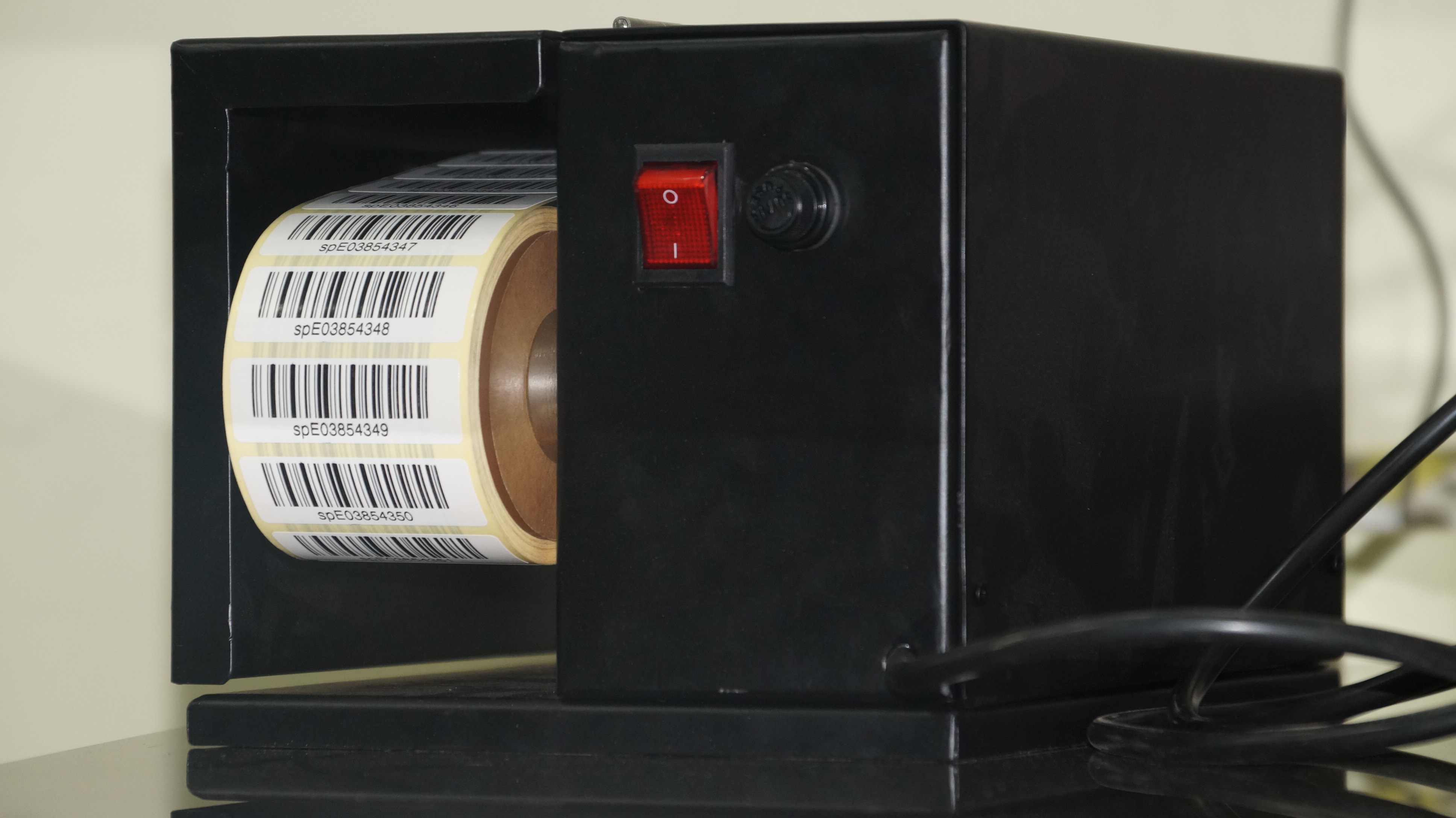

RK Label Dispenser Machine – Semi-Automatic Label Dispenser for Rolls up to 100 mm

A label dispenser is a small motorised unit that pulls the liner of a self-adhesive label roll around a sharp peel plate. As the liner bends back over the edge, the label, which is stiffer, continues straight and separates from the backing. The label is left hanging on the plate with its front edge free, ready to be picked.

Where a label applicator machine sticks the label onto the product automatically, a dispenser stops at the peeling stage and leaves the application to the operator. This makes it the practical choice for products of mixed shapes and sizes, for low and medium volumes, and for any line where a person is already handling each item.

Maximum Label Width 100 mm

The dispenser accepts rolls carrying labels up to 100 mm wide. That covers the great majority of product labels, barcode labels, price labels and batch labels used in Indian packing rooms.

Auto Cut-Off Sensor

A sensor at the peel edge sees when a label is present and cuts the drive off. The moment the operator takes the label, the sensor restarts the feed and the next label is peeled and presented. The operator never touches a switch.

MCB Control

The electrics are protected by a miniature circuit breaker, so a fault trips the machine safely instead of damaging the drive or the wiring.

Low Weight

The unit is light enough for one person to move between work stations or to store on a shelf when the labelling job is finished.

Back Side Cover

A cover on the rear of the machine encloses the mechanism, keeps dust off the liner path and protects the operator from moving parts.

Simple Roll Loading

The roll sits on a spindle, the liner is threaded around the peel plate and onto the take-up, and the machine is ready. No tools or adjustments beyond the label width are needed.

The operator loads a roll of self-adhesive labels on the spindle and threads the liner over the peel plate and back to the take-up. When the machine is switched on, the take-up pulls the liner over the sharp edge of the plate. The liner bends around the edge, but the label is too stiff to follow it, so the label peels away and stands proud of the plate with its front edge free.

The sensor sees the presented label and stops the feed. The operator lifts the label off the plate and applies it to the product. As soon as the sensor no longer sees a label, the drive restarts, advances the liner and peels the next label into position. The used liner winds onto the take-up and is thrown away at the end of the roll. The cycle continues at whatever pace the operator works, with no button to press.

• Hand labelling on packing lines – product, price and barcode labels applied by operators.
• Pharmacy and pharma packing – batch and dispensing labels on bottles, boxes and strips.
• Food and spice units – ingredient and MRP labels on pouches and jars.
• Cosmetics and small manufacturers – short runs and many SKUs where an applicator is not justified.
• Warehouses and dispatch – address and shipping labels on cartons.
• Print shops – dispensing sample labels and finishing short label jobs.

The RK Label Dispenser is built for self-adhesive labels on a paper or film liner, in rolls with a label width up to 100 mm. Paper labels, chromo labels, thermal barcode labels and film labels all peel in the same way as long as the label is stiffer than its liner. Labels with very light face stock or unusual liners should be sent to RK for a check before ordering.

• Auto Rewinderrewinds printed label rolls after the press.
• Foil Cuttingslits stamping foil rolls to width.
• GummingRK GM gum coating machine for making sticker paper.
• Half Cuttingmanual half cutting, perforating and creasing machine.
• Printer Rewinderauto rewinder unit for barcode printers.
• Manual Roll Lifterlifts paper rolls up to 150 kg.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, runs three manufacturing units and supplies customers in 23+ countries. The label dispenser is one of the smallest machines RK makes, and it is built by the same factory that makes the presses, die cutters and slitters producing the label rolls it dispenses. That means the dispenser is designed around real label rolls, real liners and real packing rooms, with spares and support from one supplier.

• Label width: the RK dispenser takes labels up to 100 mm wide. Measure your widest label.
• Roll size: check that your roll diameter and core fit the spindle; share the roll details with RK.
• Volume: for hand application at operator pace, a dispenser is enough. If you need labels placed on the product automatically, ask about a label applicator machine instead.
• Work station: the unit is low weight and bench mounted, so it can sit beside the packer.
• Power: it runs on a normal single phase socket with MCB protection.

The price of the RK Label Dispenser Machine depends on the configuration and any options you require. Prices are quoted ex-works Ahmedabad with GST at 18% applicable. Transport and stay for the RK engineer who installs the machine and trains your operators at your site are borne by the customer. Send RK your label sizes, roll details and daily label count and the team will confirm the right unit and quote against it.
