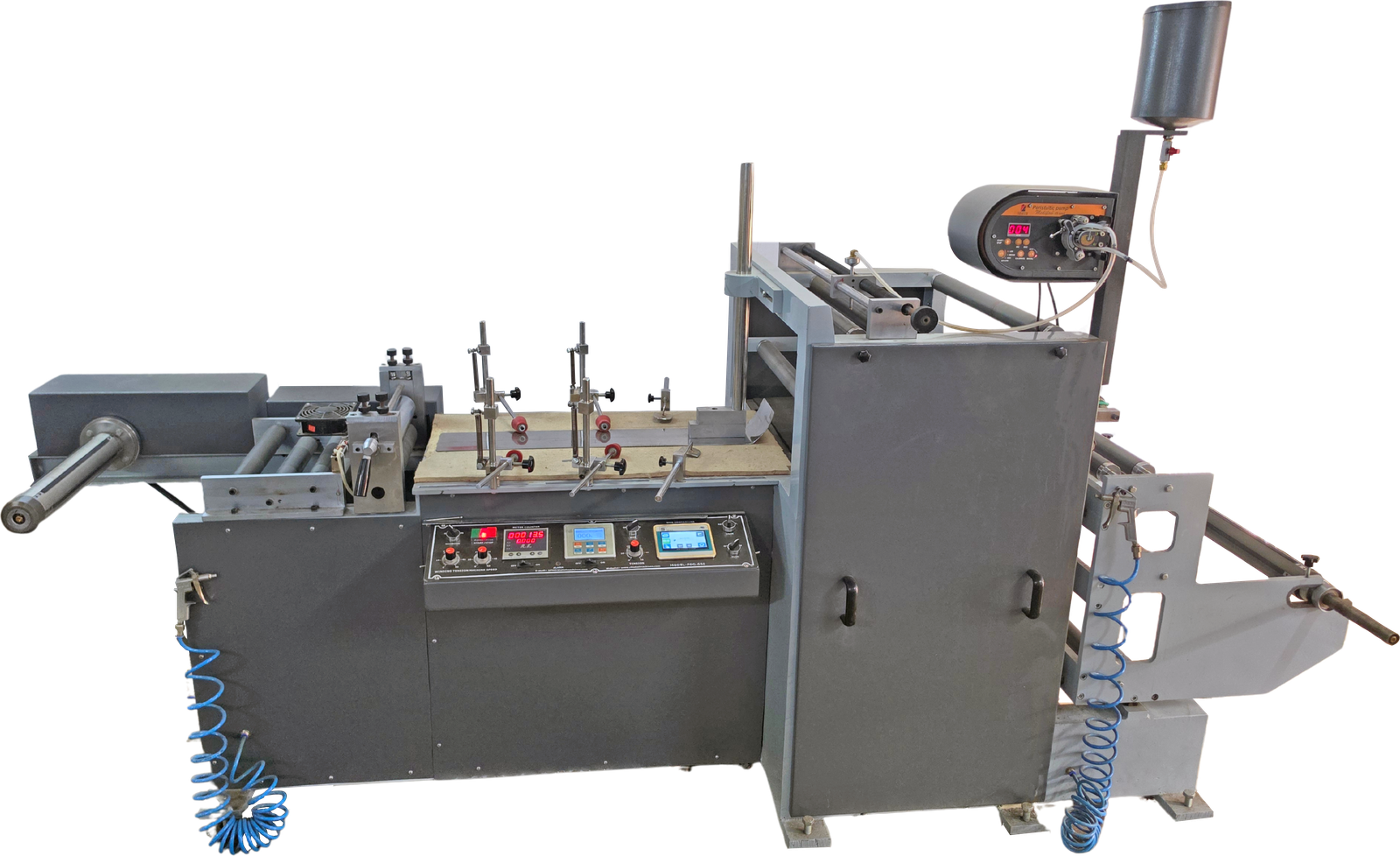

RK PSG 650 PVC Shrink Sleeve Glueing Machine – Shrink Sleeve Seaming Machine up to 650 mm

A PVC shrink sleeve glueing machine converts a flat printed web into a seamed tube. The web is drawn through a forming section that folds it to the sleeve's lay-flat width, adhesive is applied along the overlap, and the seam is pressed and set before the flattened tube is rewound. The tube is later cut to individual sleeves on a machine such as the RK PSC 320.

The PSG 650 handles film widths up to 650 mm and runs from 1 to 120 m/min. Its distinguishing detail is the glue system: a peristaltic pump, driven by a stepper motor, whose flow rate tracks the line speed. Change the speed and the dose changes with it, so the seam gets the same amount of adhesive whether the machine is crawling for setup or running flat out. The adhesive touches nothing but the inside of a replaceable rubber tube, which keeps cleaning down to a tube swap and stops solvent from attacking pump internals.

Speed-Tracking Peristaltic Glue Pump

The peristaltic pump is driven by a stepper motor and its flow range follows the line from 1 to 120 m/min. The seam receives a consistent bead of adhesive at every speed, without the operator adjusting the pump.

Solvent-Safe, Easy-Clean Glue Path

The adhesive only contacts the inside of a replaceable rubber tube. Cleaning is a tube change, and pump internals never see solvent.

650 mm Film Width and 120 m/min

The machine accepts printed PVC shrink film up to 650 mm wide and seams it at up to 120 metres a minute, which suits both narrow bottle sleeves and wide full-body sleeves.

Ultrasonic Edge Guiding on the Unwind

An imported electronic ultrasonic edge scanner guides the web into the forming section. Because it senses the film edge without contact, it works on clear and printed film alike and keeps the overlap in the right place.

Powder Brake Unwind Tension With Load Cell Feedback

The unwind holds rolls to Ø 600 mm on a 3 inch multi-bladder air shaft. A powder brake works against a load cell to keep web tension constant as the roll diameter drops, so the folded tube does not wander.

Cantilever Rewind With Independent Torque Motor

The rewind builds rolls to Ø 700 mm on a 3 inch multi-bladder air shaft, mounted cantilever style. An independent torque motor sets rewind tension, and one operator slides the finished roll off the end without a crane.

1 HP Three Phase Main Motor With VFD

The main drive is a 1 HP three phase motor with a variable frequency drive, giving smooth speed control across the full 1 to 120 m/min range.

The printed PVC shrink film roll is loaded on the 3 inch air shaft of the unwind. The ultrasonic edge scanner picks up the film edge and the powder brake, reading the load cell, sets the web tension. The web is guided into the forming section, where it is folded around to the sleeve's lay-flat width so that one edge overlaps the other by the seam allowance.

As the folded web passes the glue station, the peristaltic pump lays a bead of adhesive down the overlap. Because the pump is driven by a stepper motor tied to line speed, the bead is the same size at 10 m/min as at 120. The seam is pressed closed and the sealed, flattened tube travels to the cantilever rewind, where the independent torque motor winds it onto a 3 inch shaft up to Ø 700 mm. The operator slides the finished roll off the open end and it goes to the cutting machine.

• Shrink sleeves for bottles – full-body and partial sleeves for beverage, water, juice and dairy bottles.
• PVC shrink sleeves for bottle caps – tamper-evident cap seals and neck bands.
• Shrink sleeve labels for food and FMCG – jars, tubs and containers where the label wraps the whole pack.
• Cosmetics and personal care – sleeves for shaped bottles and tubes.
• Pharma and healthcare – tamper bands and sleeves on syrups and supplements.
• Shrink sleeve manufacturers and converters – in-house seaming of printed film before cutting.

The RK PSG 650 is specified for printed PVC shrink film up to 650 mm wide, on rolls up to Ø 600 mm with a 3 inch core. Other shrink films used for sleeve labels can be discussed with RK, since the glue and pump tube are chosen to suit the film and solvent. Send RK your film type, thickness, print layout and lay-flat widths so the forming section and adhesive system can be matched.

• PVC Shrink Sleeve Cutting Machine RK PSC 320cuts the seamed sleeve web from the PSG 650 into individual sleeves on the print mark.
• Shrink Label Printing MachineRK's full servo flexo press for printing PET and PVC shrink film.
• Slitting With Up & Down Rewindinghigh speed slitter for bringing printed film rolls to sleeve width.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, runs three manufacturing units and supplies customers in 23+ countries. RK covers the shrink sleeve chain from printing the film on its flexo presses, through slitting, seaming on the PSG 650 and cutting on the PSC 320, so a converter can build the whole line with one supplier. Each machine is configured to the customer's film widths and roll sizes rather than sold as a fixed model.

• Film width: the PSG 650 takes up to 650 mm. Check the widest printed film you seam.
• Speed needed: up to 120 m/min. Work out metres per shift from your sleeve sizes and volumes.
• Roll sizes: Ø 600 mm unwind and Ø 700 mm rewind, both on 3 inch shafts. Match your printed roll and the roll your cutter accepts.
• Film and adhesive: confirm your film type and solvent so the pump tube and glue are matched.
• Cutting downstream: pair it with the RK PSC 320 for sleeve cutting up to 320 mm.
• Power: 1 HP three phase with VFD.

The price of the RK PSG 650 depends on the forming and glue arrangement, the unwind and rewind configuration and any options you require. Prices are quoted ex-works Ahmedabad with GST at 18% applicable. Transport and stay for the RK engineer who installs the machine and trains your operators at your site are borne by the customer. Share your film widths, roll sizes and production target with RK and the team will recommend a configuration and quote against it.
