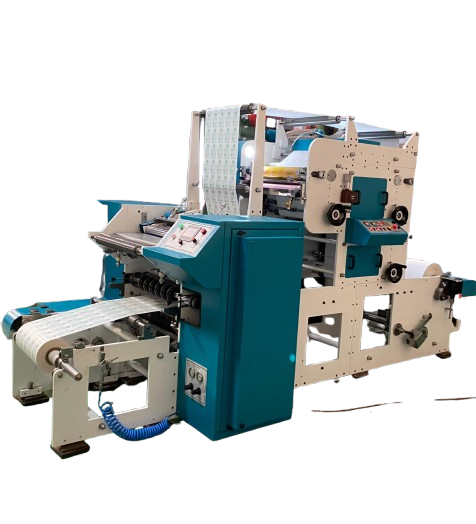

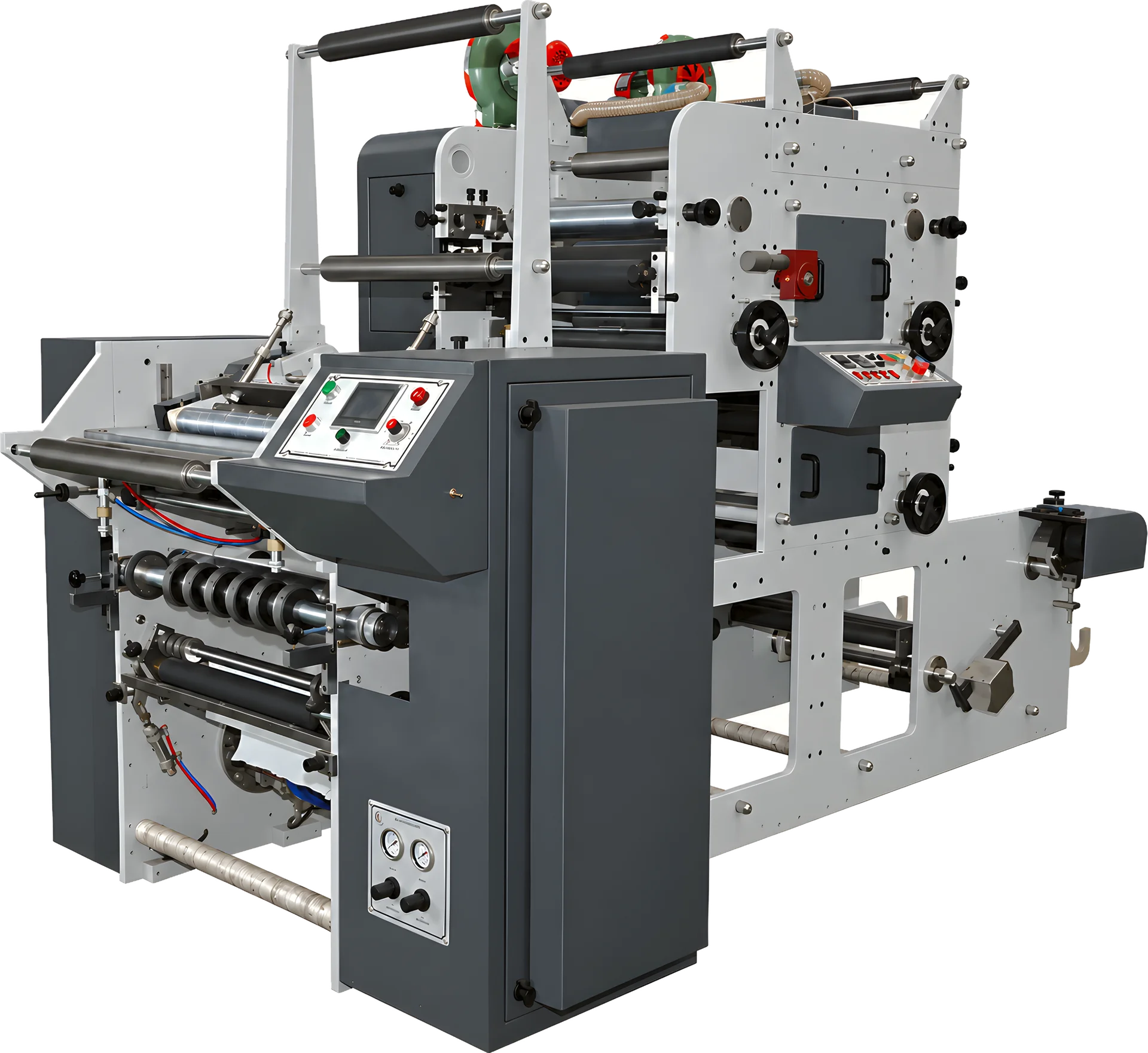

RK TS-500 POS Roll Slitting Machine With Two Colour Printing

It is a roll-to-roll paper slitting and rewinding machine built for thermal paper, with two flexo printing units placed before the slitting section. A jumbo reel of thermal paper is unwound, printed in two colours, dried, slit into the required widths and rewound as finished POS rolls, ready for packing.

The printing side is what sets it apart from a plain POS roll making machine. Two colours are enough for a logo and a tagline, or a brand colour and a black text line, on one side of the receipt paper, or one colour on the front and one on the back, for retailers, banks and fuel stations who order branded rolls. The slitting side handles the everyday job of converting jumbo reels into 57 mm, 79 mm and similar retail widths.

Printing and Slitting in One Pass

The web is printed, dried and slit on one frame, in one continuous run. This saves floor space and handling time compared to printing on one machine and slitting on another, and it removes the risk of misaligned print when the roll is re-run.

Two Colour Printing Units

Two flexo units let you print a two colour design on the paper. A logo in one colour and text in another is the usual layout for branded thermal rolls. The machine prints two colours on one side, or one colour on the front and one on the back.

Built for Thermal Paper

Thermal paper is heat sensitive and marks easily. The machine's web path and drying are arranged for this material so the printed and slit rolls come out clean, without heat marks or scuffing on the coated side.

Slitting to Standard POS Widths

Slitter positions are set to the roll widths you supply, so one jumbo reel yields several finished rolls of the same width in each pass.

Rewinding Into Tight, Even Rolls

Finished rolls need a firm, even wind so they run smoothly in printers. The rewinding section produces rolls that are ready to pack without re-rolling. The rewinding unit takes manual shafts for 13 mm, 19 mm and 25.4 mm cores, three of each, with rolls up to 200 mm in diameter; shafts for other core sizes are made to order.

Compact Footprint

The complete printing, slitting and rewinding line occupies a footprint of 13 ft in length, 6 ft in width and 7 ft in height.

The jumbo reel of thermal paper is loaded on the unwinding side and the web is threaded through the two printing units. Each unit carries the plate for one colour and applies ink to the paper as it passes. The printed web is dried and moves on to the slitting section, where rotary blades (top and bottom cutters, ten sets) set at the required widths cut the wide web into narrow strips.

The strips are wound on the rewinding side into individual POS rolls. The operator sets the roll length, and when the target is reached the finished rolls are removed and cores are loaded for the next set. Because printing and slitting happen in one pass, the design is placed correctly on every roll without any separate registration step.

• Branded POS rolls – receipt rolls with a retailer's logo and message printed on one side or on both sides.
• Bank and ATM rolls – thermal rolls with a bank name or advisory line printed on the paper.
• Fuel station and toll rolls – rolls carrying a company mark or promotional line.
• Plain POS roll production – the machine slits and rewinds without printing when plain rolls are needed.
• Thermal paper converting – jumbo reel to finished roll conversion for paper traders and roll makers.

The machine is designed around thermal paper, the coated receipt paper used in POS printers, ATMs and billing machines. The machine is specified for thermal paper up to 80 GSM. Tell RK the GSM and jumbo reel sizes you buy so the unwinding, slitting and rewinding sections are set to match.

• RK TS-500 POS Roll Slitting Machine With One Colour Printingthe same slitting line with a single printing unit for one colour logos.
• RK TS-500 POS Roll Slitting Machineplain thermal paper slitting and rewinding without printing.

RK Label Printing Machinery Pvt. Ltd. has been manufacturing label printing and paper converting machinery in Ahmedabad, Gujarat since 1995. The company runs three manufacturing units and supplies machines to customers in 23+ countries. RK's POS roll range comes in three versions, plain, one colour and two colour, so a roll maker buys only the printing capacity the orders call for. The company also builds the slitting, rewinding and core cutting machines around the roll line, so the whole setup can come from one supplier with one service contact.

• Printed or plain rolls: if most of your customers want branded rolls, the two colour version pays for itself; if only a few do, the one colour version may be enough; if none do, the plain slitter is the right choice.
• Number of colours in your artwork: a logo plus text in a second colour needs two units; a single colour logo needs one.
• Roll widths you sell: list the widths (57 mm, 79 mm and others) so the slitter positions are set correctly.
• Jumbo reel size: share the reel diameter and width you buy so the unwinding unit is matched to it.
• Daily output: your target roll count per shift decides how many slitter positions and what web width you need.
• Floor space: allow for a 13 ft long machine plus working room on both sides.

The price of the RK TS-500 POS Roll Slitting Machine With Two Colour Printing depends on the web width, the number of slitting positions, the printing unit configuration and the options chosen. Prices are quoted ex-works Ahmedabad with GST at 18% applicable; engineer travel and stay for installation and training at your site are borne by the customer. Share your roll widths, jumbo reel sizes, artwork and daily output with RK and the team will recommend a configuration and quote against it.
