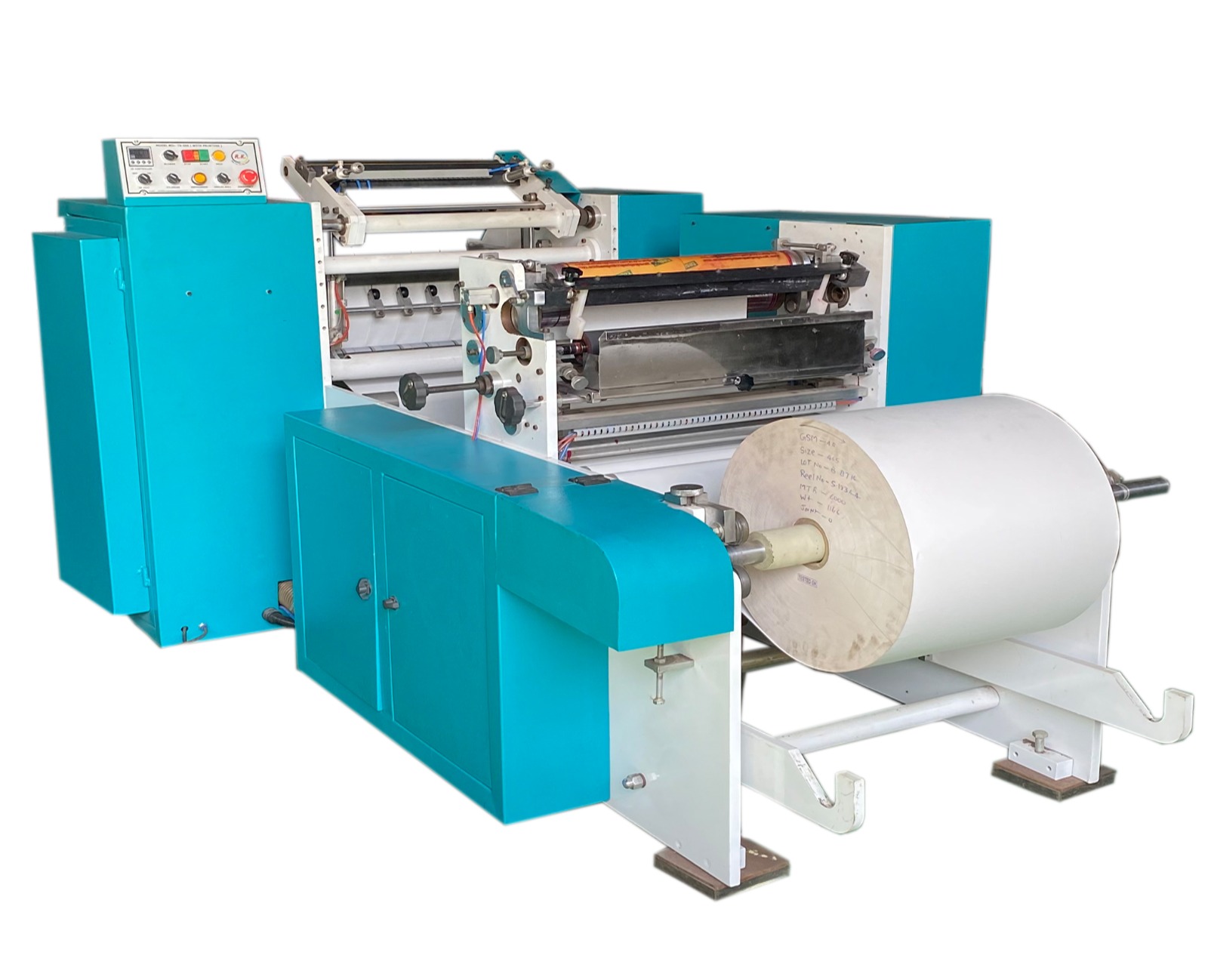

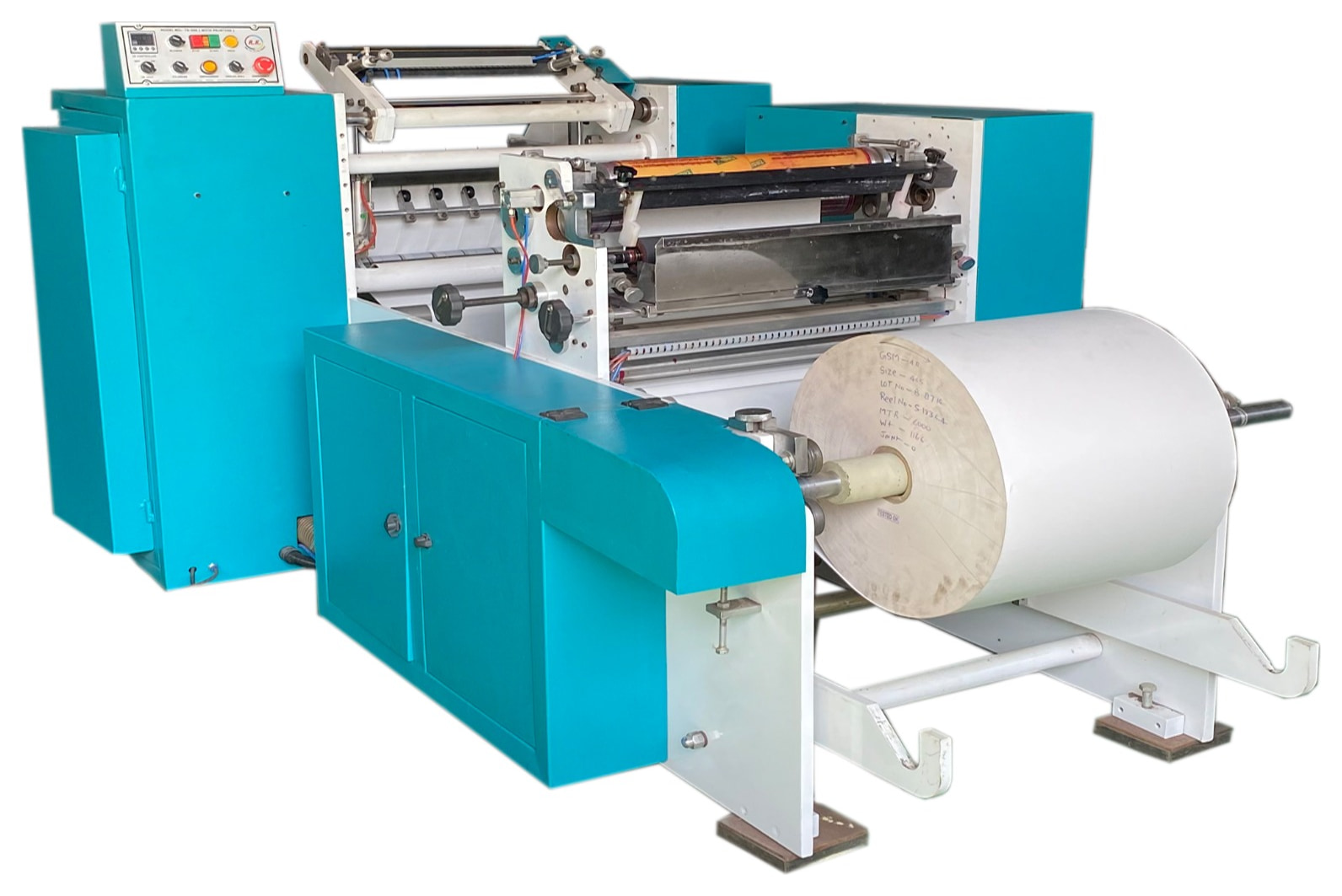

RK TS-500 POS Roll Slitting Machine With One Colour Printing

It is a POS roll making machine that converts jumbo thermal paper reels into finished, printed POS and billing rolls. The unwinding unit is built for heavy jumbos – a 3" air shaft, drum type mechanical brake tension control and an air pneumatic loading system so the operator does not lift the reel by hand.

The one colour flexo printing unit has a hot air dryer, an individual motorised anilox roll system. Printing pressure does not need to be set for every job, and the quick change printing cylinder makes job change fast. Slitting is by a rotary blade cutting system with top and bottom cutters – ten sets supplied – with an air blower for trim. An automatic ink marking system with ink rubber roll marks the end of each roll. The machine runs on a 2 HP three phase motor with a Schneider VFD under a Schneider PLC, with a meter counter and auto stop, and handles thermal paper up to 100 GSM.

One Colour Flexo Printing With Hot Air Dryer

Logos, messages and promotional prints are added to the thermal paper as it passes through the machine, and dried by hot air before slitting. No second pass, no separate printing machine.

Individual Motorised Anilox Roll

The printing unit has its own motorised anilox roll system.

Quick Change Cylinder and No Pressure Setting per Job

The printing cylinder changes quickly and printing pressure does not have to be reset for every job, which is what makes short print runs practical on a slitter.

Pneumatic Jumbo Reel Loading

The air pneumatic loading system lifts reels up to 1000 mm diameter onto the 3" air shaft, saving operator effort and reel damage.

Ten Sets of Top and Bottom Rotary Blades

The rotary blade cutting system with top and bottom cutters – ten sets supplied – gives a clean shear cut on thermal paper across the 500 mm width, and the air blower carries away the trim.

Automatic Ink Marking

An ink rubber roll marks the paper automatically so the customer's printer shows the end-of-roll warning stripe, a standard requirement for POS rolls.

Schneider PLC, VFD and Auto Stop Counter

A Schneider PLC controls the machine, the 2 HP three phase motor runs on a Schneider VFD, and the meter counter with auto stop delivers rolls of exact length.

Three Core Sizes for POS Rolls

Manual rewinding shafts for 13 mm, 19 mm and 25.4 mm cores – three of each – cover the common POS, ATM and billing roll core sizes.

The jumbo thermal reel is lifted onto the 3" air shaft by the pneumatic loading system and the drum type brake sets unwind tension. The web enters the flexo printing unit, where the motorised anilox meters ink onto the printing cylinder and the print is applied to the paper; the hot air dryer sets it immediately. For repeat jobs, the operator simply swaps the quick change cylinder.

The printed web passes the automatic ink marking roll, which lays the end-of-roll stripe, and then the rotary blade cutting system, where top and bottom cutters slit it into POS roll widths and the air blower removes the edge trim. The slit strips wind on the manual rewinding shafts on 13 mm, 19 mm or 25.4 mm cores up to 200 mm diameter. The Schneider PLC and meter counter stop the machine when each set of rolls reaches the set length.

• Printed POS rolls – billing rolls with shop or brand logos printed on the paper.
• Promotional thermal rolls – rolls carrying offers, messages or contact details.
• ATM and kiosk rolls – slit to width with the end-of-roll ink mark.
• Thermal roll converters – businesses making POS rolls from jumbo reels for retail and hospitality.
• Branded rolls for chains – supermarket, pharmacy and restaurant chains wanting their name on every receipt.

The TS-500 is specified for thermal paper up to 100 GSM, from jumbo reels up to 1000 mm diameter and 500 mm wide. Share your jumbo reel sizes, target roll widths and core sizes with RK so the blade sets and shafts match your products.

• RK TS-500 POS Roll Slitting Machinethe plain RK TS-500 thermal slitter rewinder without a printing unit.
• RK TS-500 POS Roll Slitting Machine With Two Colour Printingthe TS-500 with two colour printing for two colour logos and messages.

RK Label Printing Machinery Pvt. Ltd. has manufactured printing and converting machinery in Ahmedabad, Gujarat since 1995, across three manufacturing units, with customers in 23+ countries. The TS-500 range brings together RK's flexo printing units and its slitting and rewinding experience in one machine, with Schneider controls and pneumatic reel loading as standard. RK supplies the blade sets, cylinders and anilox to suit your roll sizes and artwork, and installs and trains on site.

• Printing: no print – plain TS-500. Logo in one colour – TS-500 with one printing unit. Two colour artwork – RK TS-500 POS Roll Slitting Machine With Two Colour Printing.
• Paper: thermal paper up to 100 GSM – confirm your grades with RK.
• Jumbo reels: up to 1000 mm diameter, 500 mm wide, on 3" cores.
• Roll sizes: rewind up to 200 mm diameter on 13, 19 or 25.4 mm cores – list the roll widths you sell.
• Cutting widths: two sets are supplied as per requirement; specify them at order.
• Power and space: 3.5 HP three phase; allow roughly 5 ft × 5 ft × 10 ft.

The price of the TS-500 with one colour printing depends on the cutting width sets, printing cylinders, anilox and options ordered. RK quotes ex-works Ahmedabad with GST at 18% applicable; engineer travel and stay for installation and training at your site are borne by the customer. Send RK your reel sizes, roll widths, core sizes and print artwork for a configured quotation.
