RK F 320 / 6 Colour Flexo Rotary Label Printing Machine With IR Lamp Hot Air System

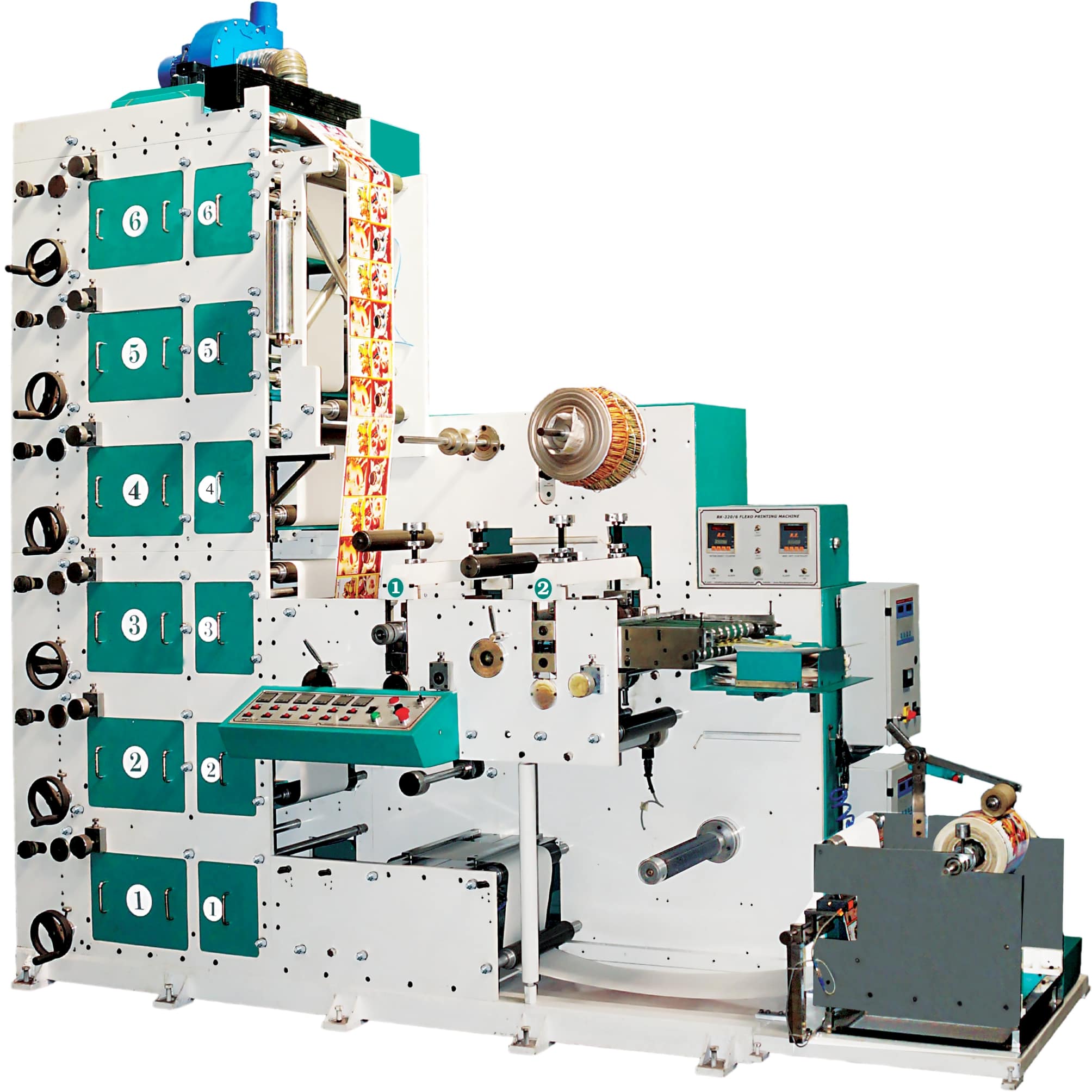

The RK F 320 / 6 Colour is a vertical tower flexographic press: six printing units stacked one above the other, with drying between each colour, and die cutting, lamination and rewinding at the base. Each unit uses a ceramic anilox roller with an individual motorized anilox system, 360° unit regulation and a dial gauge for registration. A 5 HP AC variable speed main drive runs the line.

Compared with the five colour version, the sixth unit adds room for a second spot colour, a varnish or a white under-print – the extra colour that many pharma, cosmetic and food labels need.

Six Colour Flexo Printing on a Tower Layout

Six stacked printing units give process plus spot, white and varnish capability in a 12 ft footprint.

IR Lamp Hot Air Dryers on All Units, One UV With Upgrade Facility

Every unit has an IR lamp based hot air dryer. One UV dryer unit is fitted as standard – typically used for a UV varnish or the last colour – and the machine can be upgraded to all UV drying. The individual dryer window system lets the operator check and adjust drying at each colour.

Online Rotary Die Cutting With Waste Matrix Rewinding

The label shape is cut inline and the waste matrix is rewound, so finished label rolls come straight off the machine.

Lamination Unit and Turn Bar

The lamination unit applies a protective or gloss laminate inline; the turn bar allows back side printing in the same pass.

Ultrasonic Web Guide and Load-Cell Tension Control

The unwinding unit carries an imported ultrasonic electronic web guide, a splicing table and paper holder for paper joining, and an imported auto electronic tension controller with load cell feedback. The rewinding unit has the same tension control.

Individual Motorized Anilox and Dial Gauge Registration

Each printing unit has its own motorized anilox roll system, adopts 360° regulation and carries a dial gauge for printing registration.

The label roll (up to 600 mm diameter) is loaded on the unwinding unit, centred by the ultrasonic web guide and held at a steady tension by the load-cell tension controller.

The web climbs the tower through the six printing units. At each unit a ceramic anilox roller meters ink onto the plate, the plate prints the image, and the web passes through that unit's IR hot air dryer – or the UV dryer where fitted – before entering the next colour. The turn bar flips the web for back side printing when required, and the lamination unit applies laminate after the last colour.

The web then comes down into the online rotary die-cutting unit, where the label shape is cut and the waste matrix is stripped and rewound. Finished label rolls wind on the rewinding unit (up to 450 mm diameter) under their own tension control. Speed is set on the variable speed drive and registration is trimmed with the dial gauges.

Pharmaceutical labels

process colours plus a spot colour and varnish, with fine text.

Food and beverage labels

branding artwork plus mandatory product information.

Cosmetic and personal care labels

six colours with inline lamination for gloss and durability.

FMCG and household product labels

multi-colour labels in medium runs.

Two-sided and laminated labels

using the turn bar and lamination unit.

In-house label printing

for manufacturers with limited floor space.

The RK F 320 runs the self-adhesive label stock and paper, within a 320 mm paper width. Anilox rollers and printing cylinders are supplied to your requirement, so share your actual materials and artwork with RK before the specification is fixed.

• Vertical Tower Machine (RK F 320 series)the category overview.
• RK F-320 5 Colour With IR Lamp With Hot Air Systemfive colours with online die cutting and turn bar.
• RK F-320 3 Colour With IR Lamp With Hot Air Systemthree colours for simpler labels.
• Micro Flexocompact two-colour printing and die cutting with 220 mm feeding width.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, operates three manufacturing units and supplies customers in 23+ countries. The RK F 320 tower series is offered in 1, 3, 5 and 6 colour versions so a printer buys the colour count the jobs need, and every machine is configured to the customer's drying, finishing and options rather than sold as a fixed model.

• 6 or 5 colours? If your regular jobs use process colours plus a spot colour and a varnish or white, six is the right count. If most jobs are four or five colours, the RK F 320 / 5 Colour saves cost and 1.5 ft of height.
• Drying: IR hot air plus one UV unit as standard; specify all UV if your inks are mainly UV.
• Finishing: online die cutting with matrix rewinding, lamination and turn bar are included; add cold foil or video monitor as needed.
• Label sizes: 310 mm print width and 430 mm print length – check your layouts.
• Ceiling height: the six colour tower is 11.5 ft high; confirm the room.
• Output: 50 m/min published; calculate labels per shift from your label repeat.

The price of a 6 colour flexo label printing machine depends on the drying arrangement (one UV or all UV), die cutting, lamination, turn bar and options, anilox and cylinder sets. Prices are quoted ex-works Ahmedabad with GST at 18% applicable; engineer transport and stay for installation and training at your site are borne by the customer. Share your label materials, sizes, colour count and monthly volume with RK and the engineering team will recommend a configuration and quote against it.
