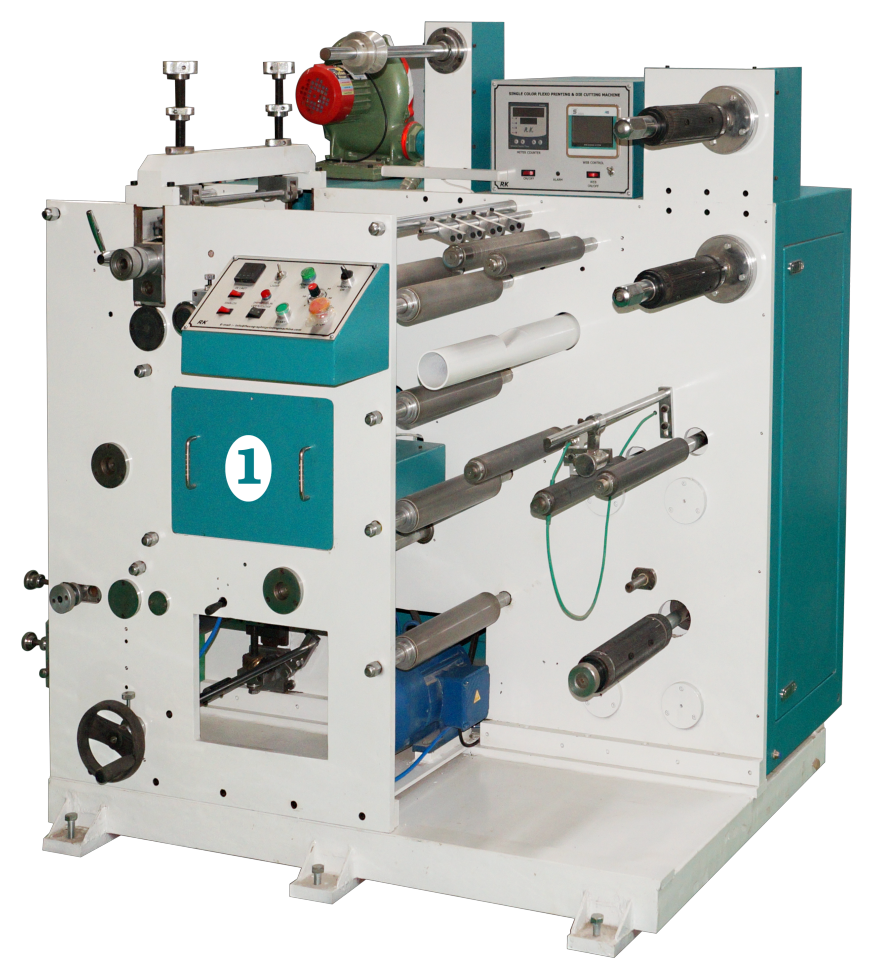

RK F 320 / 1 Colour Flexo Rotary Label Printing Machine With IR Dryer, Slitting and Up & Down Rewinding

The RK F 320 / 1 Colour is the entry point of RK's F 320 tower series: one flexo printing unit with a ceramic anilox roller and individual motorized anilox system, IR drying, and a full converting section. Because it prints one colour and converts inline, it works both as a one colour label press and as a die-cutting and slitting machine for plain labels.

The up & down rewinding unit winds the slit rolls onto two shafts, so several label rolls are produced side by side from one web, and the mechanical shafts in 1", 1.5" and 3" sizes let the operator wind onto the core size the customer's printer needs.

One Colour Flexo Printing With IR Dryer

A single printing unit with a ceramic anilox roller prints the logo, text or background colour, and the IR dryer sets the ink before die cutting. A UV dryer is available as an extra option.

Online Rotary Die Cutting With Waste Matrix Rewinding

The rotary die-cutting unit cuts the label shape inline and rewinds the waste matrix, so the machine produces die-cut labels on the liner.

Online Slitting Unit With Air Blower

The slitting unit divides the web into individual label rolls, and an air blower clears the trimmed waste away from the knives.

Up & Down Rewinding on 1", 1.5" and 3" Shafts

Two rewinding shafts take alternate slit rolls, and mechanical shafts in three core sizes cover the core diameters used by barcode and thermal transfer printers.

Ultrasonic Web Guide

The unwinding unit carries an ultrasonic based electronic web guide that keeps the web centred into the printing and die-cutting units.

Low Power Consumption

The machine draws 4 HP on 3 phase with a 3 HP main motor.

The label roll (up to 600 mm diameter) is loaded on the unwinding unit and the ultrasonic web guide keeps it centred. The web passes through the printing unit, where the ceramic anilox roller meters ink onto the plate and the plate prints the single colour. The IR dryer sets the ink.

The web then enters the online rotary die-cutting unit, which cuts the label shape and strips the waste matrix onto its own rewind. The slitting unit divides the web into individual label rolls, with the air blower clearing the trim. The slit rolls wind alternately on the up & down rewinding shafts, on 1", 1.5" or 3" cores as required, and the finished reels are unloaded from the shafts. Speed is set on the variable speed drive.

Plain die-cut labels

blanks for barcode and thermal transfer printers, slit to width and wound on the right core.

One colour logo and text labels

company name, address and brand labels.

MRP, batch and price sticker blanks

with or without a printed border or logo.

Pre-printed one colour stickers

in high volume at low running cost.

Label converting

die cutting and slitting of unprinted stock.

Start-up label businesses

a low-investment machine that prints and converts.

The machine runs the self-adhesive label stock and paper. Anilox roller and printing cylinders are supplied to your requirement, so share your actual materials and label sizes with RK before the specification is fixed.

• RK F-320 3 Colour With IR Lamp With Hot Air Systemthree colours with two rotary die-cutting units.
• Vertical Tower Machine (RK F 320 series)the category overview.
• Micro Flexocompact two-colour printing and die cutting with 220 mm feeding width.
• Label Slitting MachinesRK's dedicated slitting and rewinding range.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, operates three manufacturing units and supplies customers in 23+ countries. The RK F 320 series is offered in 1, 3, 5 and 6 colour versions so a printer buys only the capability the jobs need, and every machine is configured to the customer's label sizes, core sizes and options rather than sold as a fixed model.

• Print or convert? If most of your output is plain or one colour labels, this machine covers printing and converting in one pass. If you need multi-colour work, look at the 3, 5 or 6 colour versions.
• Core sizes: the up & down rewinder comes with 1", 1.5" and 3" mechanical shafts – confirm the cores your customers' printers use.
• Label sizes: confirm your label widths and repeat (310 mm print width, 430 mm print length) against the slitting and die-cutting setup.
• Drying: IR is standard; add the UV dryer option for UV inks.
• Power: 4 HP 3 phase – suitable for small units.
• Output: 50 m/min published; calculate rolls per shift from your label layout.

The price of a single colour flexo label printing machine with die cutting and slitting depends on the die-cutting and slitting arrangement, rewinding shafts, UV option, anilox and cylinder sets. Prices are quoted ex-works Ahmedabad with GST at 18% applicable; engineer transport and stay for installation and training at your site are borne by the customer. Share your label materials, sizes, core sizes and monthly volume with RK and the engineering team will recommend a configuration and quote against it.
