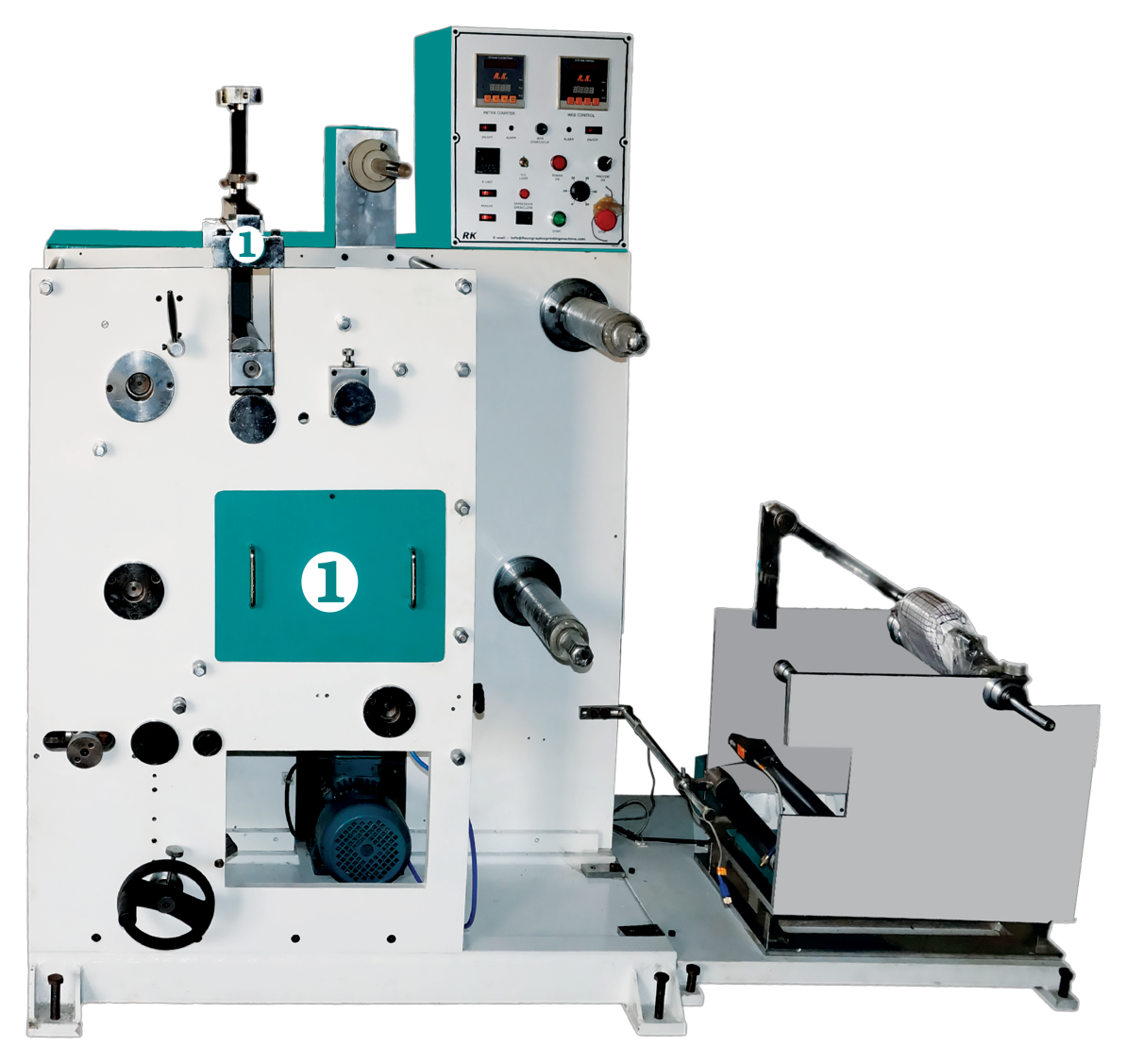

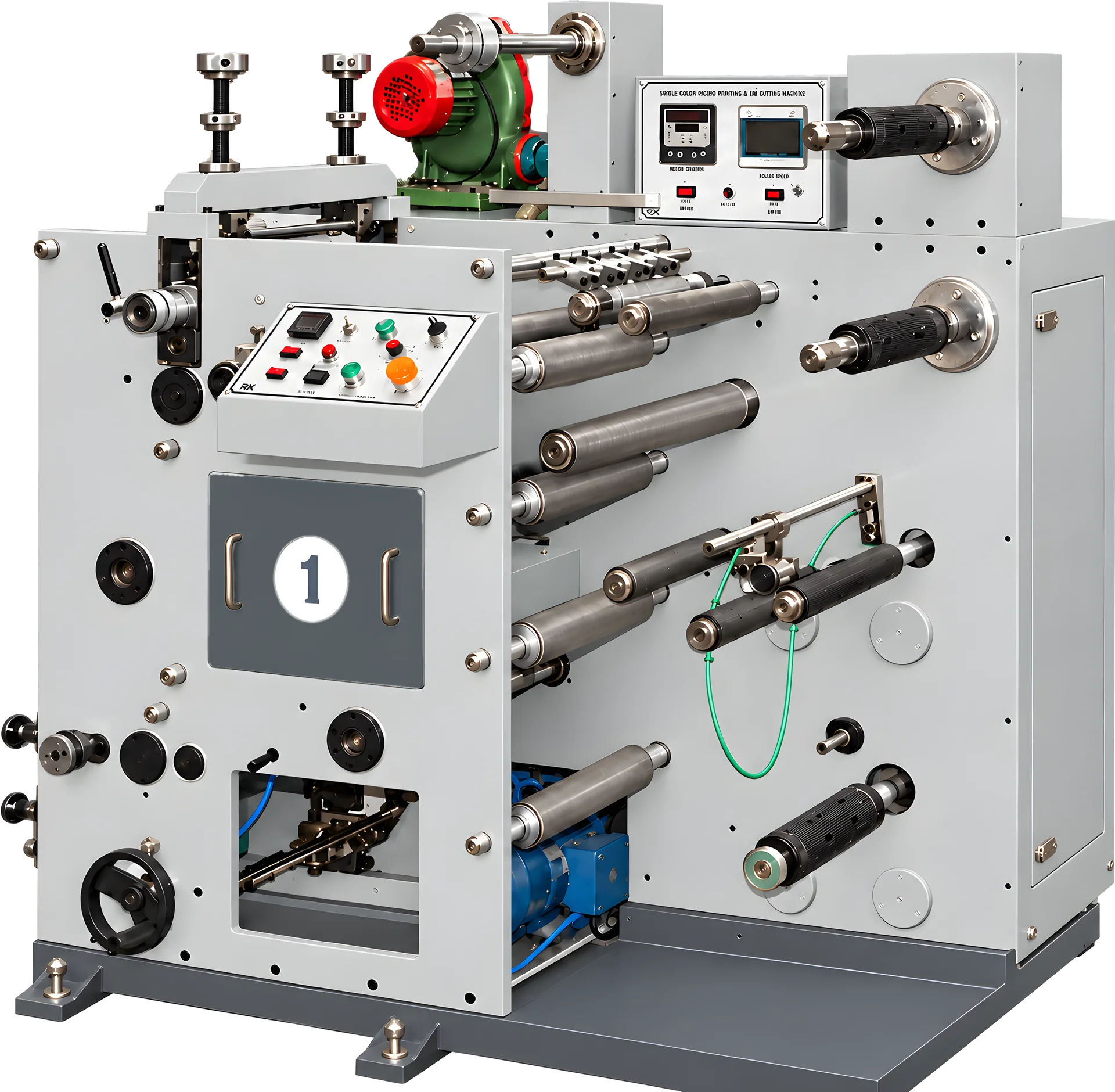

MRF-220 1 Colour Flexo Printing Machine With IR Dryer and Rotary Die Cutting

The MRF-220 / 01 is a compact flexo rotary printing machine with one printing unit and one rotary die cutting unit in a single frame. It is a mini flexo printing machine in the true sense – small enough for a corner of a print shop, but built on the same rotary flexo principle as RK's 320 mm tower machines.

The printing unit uses a ceramic anilox roll, chosen for your ink coverage, to meter ink onto the printing cylinder. An IR dryer sets the ink before die cutting. The machine is supplied with three sets of printing cylinders as per your label sizes, and has unwinding, rewinding and waste rewinding units, an electronic meter counter with auto stop, and a 2 HP three phase AC variable speed control motor.

Single Printing Unit With IR Dryer

One colour is printed from a ceramic anilox roll and printing cylinder, and dried by an IR dryer before the web reaches the die. Simple to set, simple to run.

Rotary Die Cutting Inline

The printed web passes straight into a rotary die cutting unit. Labels are cut to shape, the matrix is removed by the waste rewinding unit and finished labels wind on the rewinding unit.

Lighter 2 HP Drive

Because there is only one printing unit, the machine runs on a 2 HP three phase AC variable speed control motor system, a step down from the 3 HP drive of the two colour model.

Ceramic Anilox Roll as per Requirement

RK supplies the ceramic anilox roll to match your label type – fine text and barcodes, or solid areas and borders.

Three Printing Cylinder Sets

Three sets of printing cylinders are supplied as per your requirement, covering three label repeat sizes.

Meter Counting With Auto Stop

The operator sets the length in metres and the machine stops on its own when the count is reached, so roll quantities stay consistent.

Small Footprint

The machine measures 5.5 ft high, 4 ft wide and 5 ft long, making it one of the smallest full-function label machines in the RK range.

The roll of label stock is loaded on the unwinding unit and the web is threaded into the printing unit. The ceramic anilox roll picks up ink from the ink tray, meters it to a uniform film and transfers it to the raised image on the printing cylinder, which prints it on the web. The IR dryer sets the ink immediately.

The web then enters the rotary die cutting unit. A rotary die, made to your label shape, cuts through the face stock and leaves the liner intact. The waste rewinding unit pulls away the matrix and the clean labels wind on the rewinding unit. The electronic meter counter counts the length run and stops the machine at the value the operator has set.

Batch and MRP stickers

single colour text stickers for FMCG, pharma and chemicals.

Courier and logistics labels

pre-printed borders and logos for later barcode overprinting.

Warning and instruction labels

single colour labels for industrial and electrical products.

Blank die cut labels

die cut only rolls for thermal transfer or laser printing.

Starter label printing

small units entering label printing with one colour work.

The MRF-220 / 01 handles roll-fed self-adhesive label stock up to 220 mm wide, such as chromo paper, art paper, thermal paper and synthetic label films that suit IR drying. Share the materials and inks you intend to run so RK can select the anilox roll accordingly.

• Micro Flexothe Micro Flexo range page.
• MRF-220 2 Colour With IR Dryerthe two colour version with IR and hot air drying and a 3 HP drive.
• RK F-320 1 Colour With IR Lamp and Hot Air Systema wider 320 mm single colour tower machine.
• Tower Machinethe 320 mm vertical tower flexo range.
• Paper Cup Machinetower flexo configured for paper cup blanks.

RK Label Printing Machinery Pvt. Ltd. has been building label printing and converting machines in Ahmedabad, Gujarat since 1995. With three manufacturing units and customers in 23+ countries, RK makes everything from this one colour micro flexo to multi-servo presses, so a customer who starts small can step up within the same range and keep the same service contact. Anilox rolls, cylinders and dies are supplied to suit your actual labels.

• Colour count: single colour work only – choose the / 01. Any second colour – choose the / 02.
• Drive and power: the / 01 runs on a 2 HP motor; the / 02 on 3 HP. Both are three phase.
• Height: the / 01 is 5.5 ft high; the / 02 is 6 ft. Both are 4 ft wide and 5 ft long.
• Label sizes: list your repeat lengths so the three printing cylinder sets suit your work.
• Web width: paper feeding width 220 mm, printing width 200 mm – check your label layouts.
• Future needs: if wider labels or more colours are likely, consider the 320 mm Tower Machine.

The price of the MRF-220 / 01 depends on the printing cylinder sets, rotary dies, anilox roll and options supplied. RK quotes ex-works Ahmedabad with GST at 18% applicable; engineer travel and stay for installation and training at your site are borne by the customer. Send your label sizes, materials and monthly quantities and the RK team will quote a configured machine.
