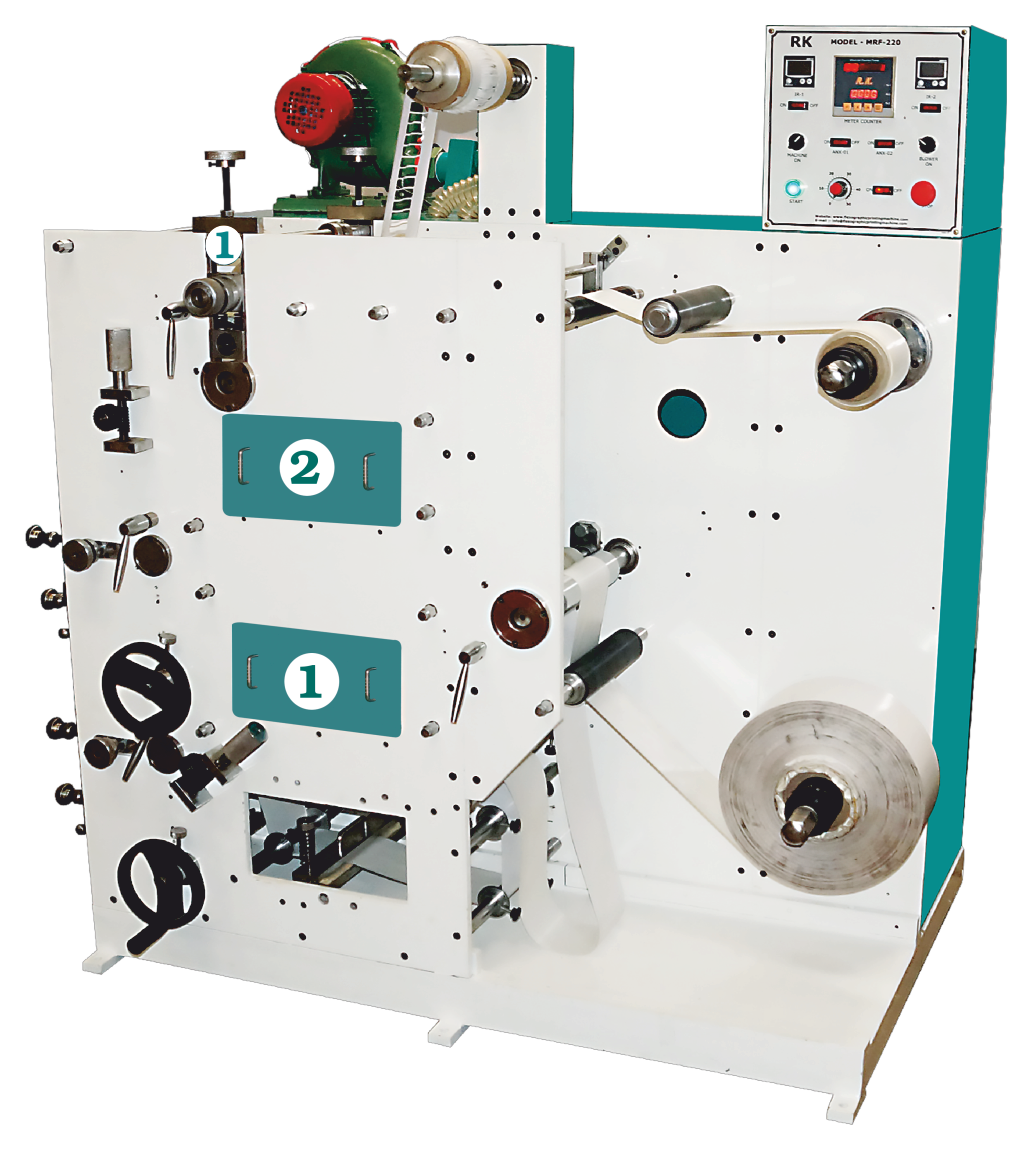

MRF-220 2 Colour Flexo Printing Machine With IR Dryer and Rotary Die Cutting

The MRF-220 / 02 is a narrow web flexo rotary printing machine with two printing units and one rotary die cutting unit in a single compact frame. It is aimed at printers and packaging units that need a mini flexo printing machine for short and medium label runs, rather than a full width press.

Each printing unit uses a ceramic anilox roll to meter ink onto the printing cylinder, and each is followed by an IR dryer with hot air dryer system. Three sets of printing cylinders are supplied to suit your label repeat sizes. The machine has unwinding, rewinding and waste rewinding units, a 3 HP three phase AC variable speed motor and an electronic meter counter with auto stop. It stands about 6 ft high, 4 ft wide and 5 ft long.

Two Independent Printing Units

Both colours are printed in one pass, each from its own anilox roll and printing cylinder. The second colour is placed in register with the first, so logos, borders and text lines sit exactly where the artwork puts them.

IR Dryer With Hot Air Dryer System on Each Unit

Ink is dried after each colour, not only at the end. This is what keeps the second colour from picking up wet ink from the first and keeps the printed web clean into the die cutting unit.

One Rotary Die Cutting Unit Inline

A rotary die cuts the printed labels to shape on the same machine. The matrix waste is taken away by the waste rewinding unit, and finished labels wind on the rewinding unit.

Ceramic Anilox Roll Matched to Your Ink Coverage

The ceramic anilox roll is selected as per your requirement, so text-heavy labels and solid-colour labels each get the right ink film.

Three Printing Cylinder Sets

Three sets of printing cylinders are included as per your requirement, covering three label repeat sizes from the start.

3 HP Variable Speed AC Drive

A 3 HP three phase AC variable speed control motor system gives smooth speed control from setup crawl to production run.

Meter Counter With Auto Stop

Set the run length in metres and the machine stops on its own when the count is reached – useful for making fixed-length rolls for each customer.

The roll of label stock sits on the unwinding unit and the web is fed into the first printing unit. The ceramic anilox roll carries a measured film of ink to the printing cylinder, whose raised image transfers the first colour to the web. The IR dryer with hot air sets that colour before the web reaches the second unit, where the second colour is printed in register and dried the same way.

The printed web then passes through the rotary die cutting unit, where a rotary die cuts each label through the face stock while the liner stays whole. The waste rewinding unit pulls off the matrix, and the clean, die cut labels wind on the rewinding unit. The electronic meter counter counts the metres run and stops the machine automatically at the set length.

Two colour product stickers

company colour plus black text for FMCG, food and household products.

Pharma and chemical labels

batch, MRP and warning labels with a coloured band.

Retail price and MRP stickers

short run stickers for distributors and retail chains.

Barcode and logistics labels

printed border or logo with die cut ready for overprinting.

Job printing

small print shops taking varied two colour label orders.

The machine runs roll-fed self-adhesive label stock up to 220 mm wide – chromo paper, art paper, thermal paper and synthetic label films suited to the IR and hot air drying on the machine. Share your material list and ink type with RK so the anilox roll and dryer settings are matched to your work before dispatch.

• Micro Flexothe main Micro Flexo range page.
• MRF-220 1 Colour With IR Dryerthe single colour version with a 2 HP motor.
• Tower Machine320 mm vertical tower flexo machines in 1 to 6 colours.
• RK F-320 1 Colour With IR Lamp and Hot Air Systema wider single colour tower alternative.
• RK F-320 3 Colour With IR Lamp and Hot Air Systemthree colour tower machine for more complex labels.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machines in Ahmedabad, Gujarat since 1995, across three manufacturing units, with customers in 23+ countries. The Micro Flexo shares its printing and die cutting principles with RK's larger tower and servo presses, so the two colour MRF-220 is a proven design scaled to a small web. RK supplies the anilox, cylinders and dies matched to your labels and supports the machine from its own service team.

• Artwork: if any of your regular labels carry a second colour – logo, border, band – choose the 2 colour model. If everything is single colour text and barcodes, the 1 colour model is enough.
• Drive: the 2 colour model uses a 3 HP motor; the 1 colour model uses a 2 HP motor.
• Size: the 2 colour machine is 6 ft high, the 1 colour 5.5 ft; both are 4 ft wide and 5 ft long.
• Label sizes: list your repeat lengths so the three printing cylinder sets are made correctly.
• Growth: if you expect to add colours later, look at the 320 mm Tower Machine range instead.

The price of the MRF-220 / 02 depends on the printing cylinder sets, rotary dies, anilox specification and options ordered with it. RK quotes ex-works Ahmedabad with GST at 18% applicable, and engineer travel and stay for installation and training at your site are borne by the customer. Send your label sizes, materials and monthly quantities to RK for a configured quotation.
